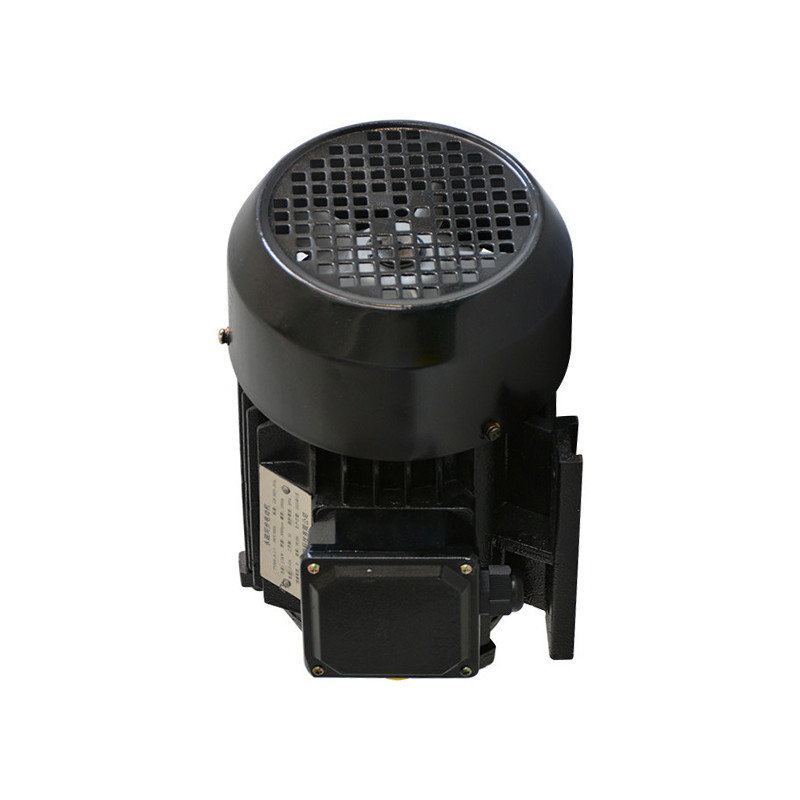

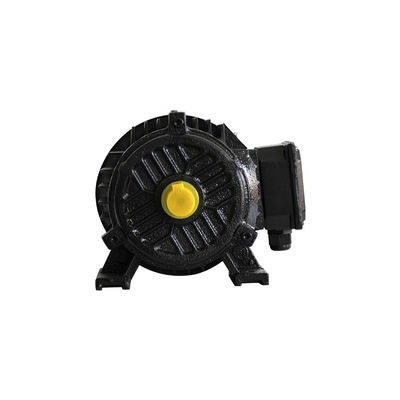

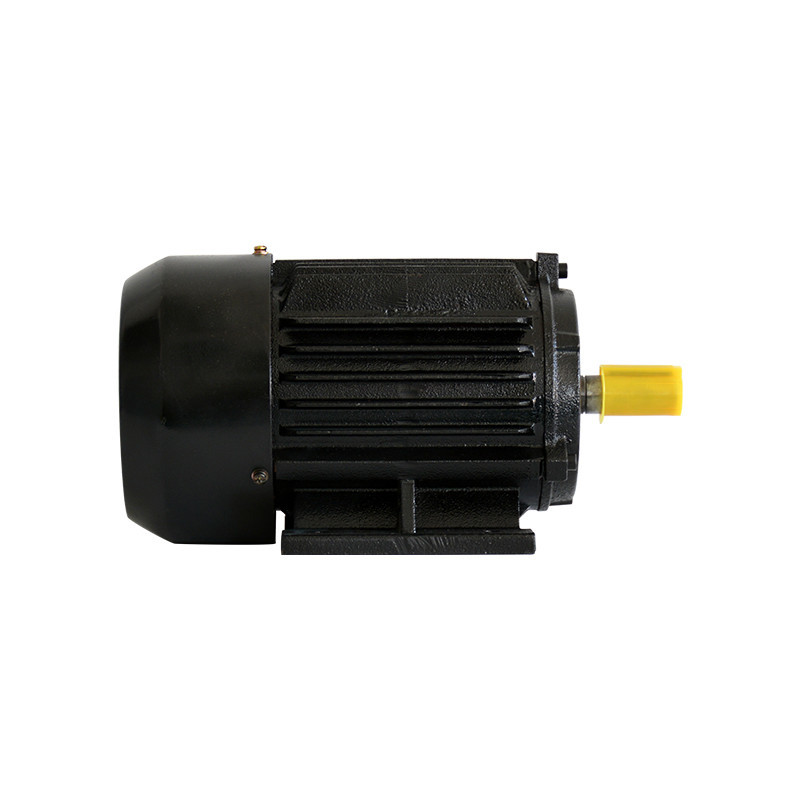

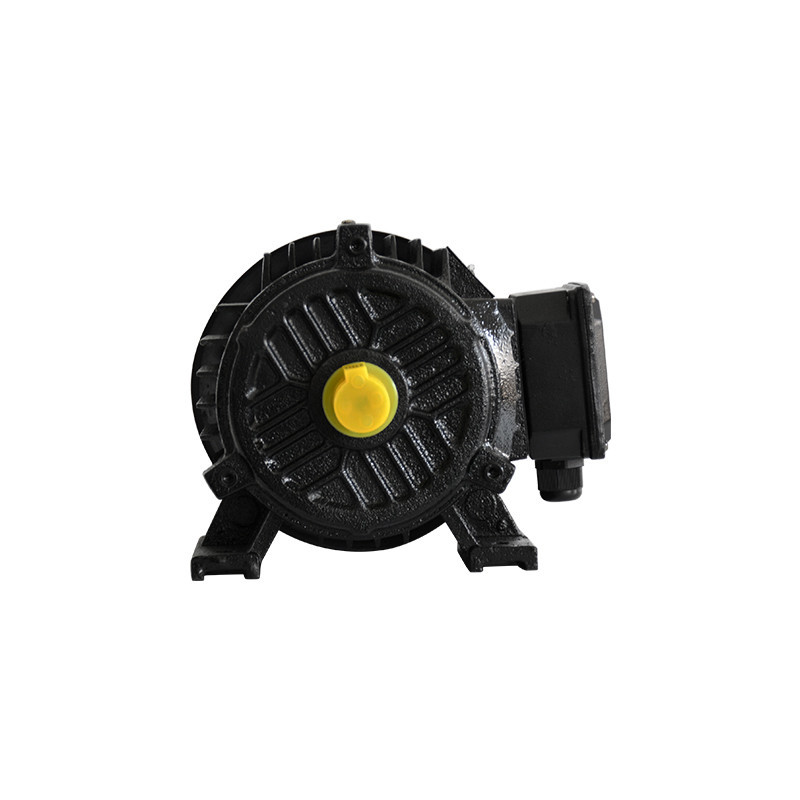

Powerful 380V Interior Permanent Magnet Motor High Speed PMSM 1500 - 3000rpm

  • Powerful 380V Interior Permanent Magnet Motor High Speed PMSM 1500 - 3000rpm
  • Powerful 380V Interior Permanent Magnet Motor High Speed PMSM 1500 - 3000rpm
  • Powerful 380V Interior Permanent Magnet Motor High Speed PMSM 1500 - 3000rpm
Place of Origin China
Brand Name Xicheng
Model Number TYB132-8-11-3000
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Installation Mode B3/B35 Insulation Grade B
Voltage 380V Working System S1
Erequency 100-200Hz Speed 1500-3000rpm
Efficiency 88.6%-95.3% Output 0.75-15Kw
Highlight

380V interior permanent magnet motor

,

interior permanent magnet motor 1500rpm

,

high speed pmsm 3000rpm
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description

Powerful 380V Permanent Magnet Synchronous Motor Speed 1500-3000rpm

Product Description:

The product is a permanent magnet motor specially designed for fans,the efficiency index reaches the first-class standard of GB30253-2013 "Energy Efficiency Limits and Energy Efficiency Grades of Permanent Magnet Synchronous Motors",reach the international advanced level of similar products.This motor offers a wide range of output power from 0.75 to 15Kw, working system of S1, insulation grade of B, installation mode of B3/B35, and speed ranging from 1500 to 3000rpm.



Features:

  • High efficiency and energy saving, first-class energy efficiency
  • High power factor, improve grid quality factor
  • High power density, convenient for energy-saving retrofit and upgrade
  • The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions
  • Integrated design of driver and motor, simple wiring and better motor protection


Technical Parameters:

Parameter Value
Output 0.75-15Kw
Insulation Grade B
Speed 1500-3000rpm
Frequency 100-200Hz
Voltage 380V
Working System S1
Installation Mode B3/B35
Efficiency 88.6%-95.3%


Applications:

The permanent magnet synchronous electric motor, also known as the magnet synchronous machine, is a product of Xicheng, a brand name from China, with the model number TYB132-8-11-3000. It is available for a minimum order quantity of 1PCS with a price range of $120-580/PCS. The delivery time for the order is 7-15 work days and the payment terms are L/C, T/T. The permanent magnet motor has a supply ability of 500PCS in 15-20 work days and is available in two installation modes: B3/B35. The frequency range of the motor is 100-200Hz and the speed is 1500-3000rpm. The output of the machine is 0.75-15Kw and it is designed to work in S1 system.



Support and Services:

Permanent Magnet Synchronous Motor technical support and services include:

  • Troubleshooting and maintenance guidance
  • Repair and replacement parts assistance
  • Software updates and upgrades
  • Ongoing technical support and advice
  • Warranty assistance
Powerful 380V Interior Permanent Magnet Motor High Speed PMSM 1500 - 3000rpm 0Powerful 380V Interior Permanent Magnet Motor High Speed PMSM 1500 - 3000rpm 1Powerful 380V Interior Permanent Magnet Motor High Speed PMSM 1500 - 3000rpm 2

FAQ:

Q1: What is the brand name of the Permanent Magnet Synchronous Motor?
A1: The brand name of the Permanent Magnet Synchronous Motor is Xicheng.
Q2: What is the model number of the Permanent Magnet Synchronous Motor?
A2: The model number of the Permanent Magnet Synchronous Motor is TYB132-8-11-3000.
Q3: Where is the Permanent Magnet Synchronous Motor from?
A3: The Permanent Magnet Synchronous Motor is from China.
Q4: What is the minimum order quantity for Permanent Magnet Synchronous Motor?
A4: The minimum order quantity for Permanent Magnet Synchronous Motor is 1PCS.
Q5: What is the price range for Permanent Magnet Synchronous Motor?
A5: The price range for Permanent Magnet Synchronous Motor is $120-580/PCS.
