High Efficiency Permanent Magnet Rotor Energy Saving IB35 High Torque Permanent Magnet Motor

  • High Efficiency Permanent Magnet Rotor Energy Saving IB35 High Torque Permanent Magnet Motor
  • High Efficiency Permanent Magnet Rotor Energy Saving IB35 High Torque Permanent Magnet Motor
  • High Efficiency Permanent Magnet Rotor Energy Saving IB35 High Torque Permanent Magnet Motor
Place of Origin China
Brand Name Xicheng
Model Number TYB112-8-4-2500
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15work days
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

High Efficiency permanent magnet rotor

,

permanent magnet rotor Energy Saving

,

IB35 high torque permanent magnet motor
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000 TYB160-8-11-1500 TYB160-8-15-1500 TYB160-8-18.5-1500 TYB200-8-22-1500 TYB200-8-30-1500 TYB200-8-37-1500 TYB225-8-45-1500 TYB225-8-55-1500
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200 100 100 100 100 100 100 100 100
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15 11 15 18.5 22 30 37 45 55
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000 1500 1500 1500 1500 1500 1500 1500 1500
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3 93.6 94 94.3 94.7 95 95.3 95.6 95.8
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3 B3 B3 B3 B3 B3 B3 B3
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000 TYB160-8-11-1500 TYB160-8-15-1500 TYB160-8-18.5-1500 TYB200-8-22-1500 TYB200-8-30-1500 TYB200-8-37-1500 TYB225-8-45-1500 TYB225-8-55-1500
Product Description

Principles of Permanent Magnet Motors:

       Principle:The three-phase symmetrical current passing through the three-phase winding of the stator will generate a stator rotating magnetic field. The rotating magnetic field of the stator generates current in the cage winding for the rotation of the rotor to generate the rotating magnetic field of the rotor. The asynchronous torque generated by the interaction between the stator rotating magnetic field and the rotor rotating magnetic field makes the rotor turn from stationary to rotating. After the start-up is completed, the rotor winding is no longer active, and the magnetic field generated by the permanent magnet and the stator winding interacts to generate driving torque.

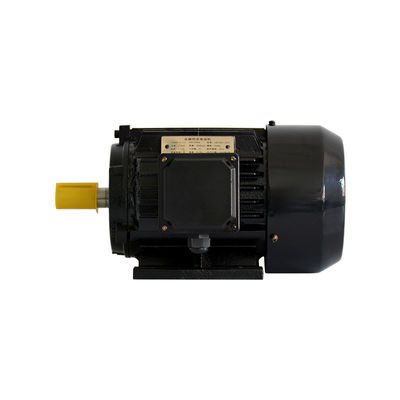

High Efficiency Permanent Magnet Rotor Energy Saving IB35 High Torque Permanent Magnet Motor 0

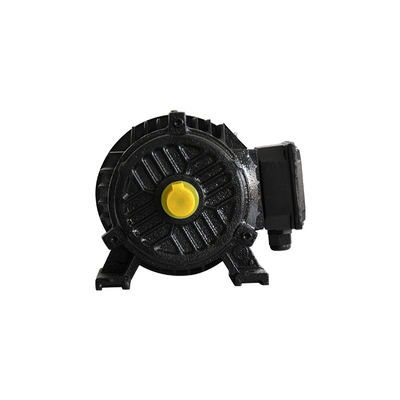

High Efficiency Permanent Magnet Rotor Energy Saving IB35 High Torque Permanent Magnet Motor 1

Features of drive integrated permanent magnet motor:

High efficiency and energy saving, first-class energy efficiency,

High power factor, improve grid quality factor,

High power density, convenient for energy-saving retrofit and upgrade,

The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions,

Integrated design of driver and motor, simple wiring and better motor protection.

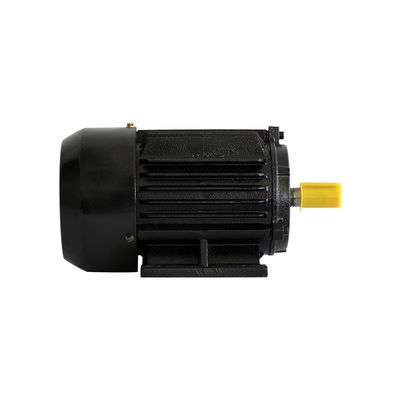

High Efficiency Permanent Magnet Rotor Energy Saving IB35 High Torque Permanent Magnet Motor 2
