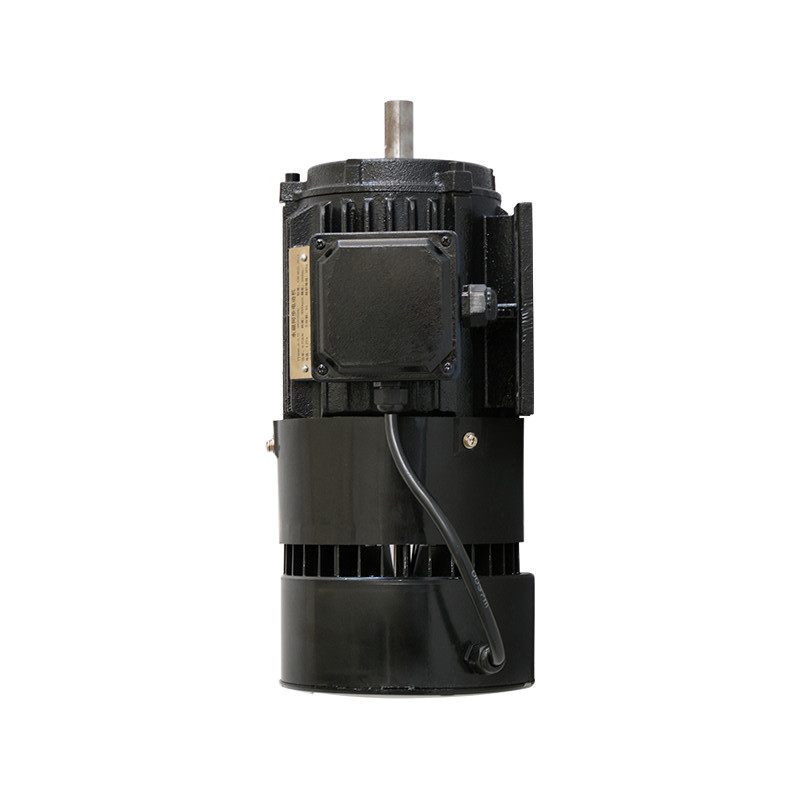

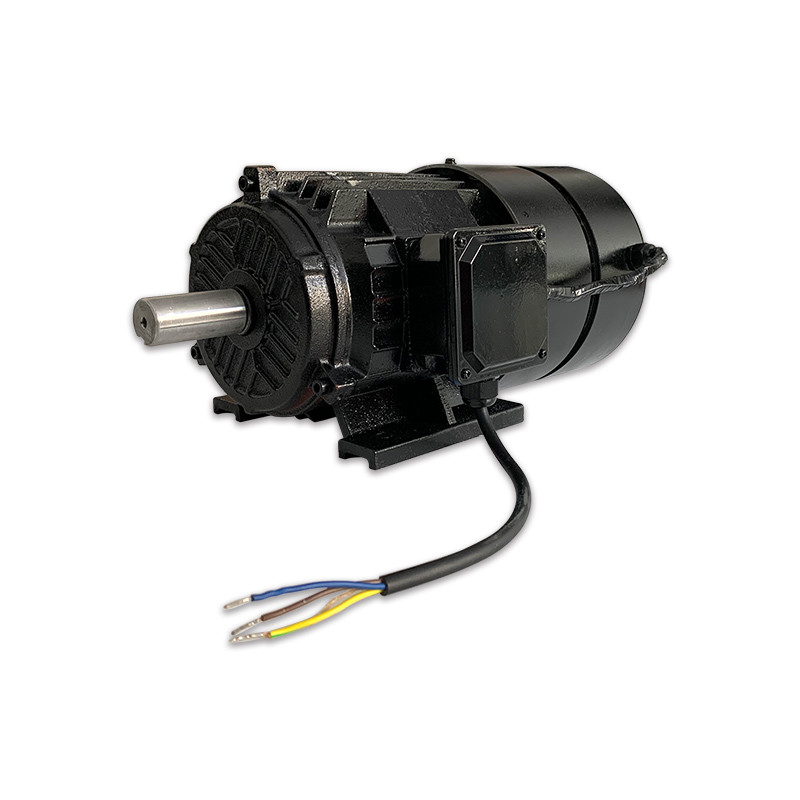

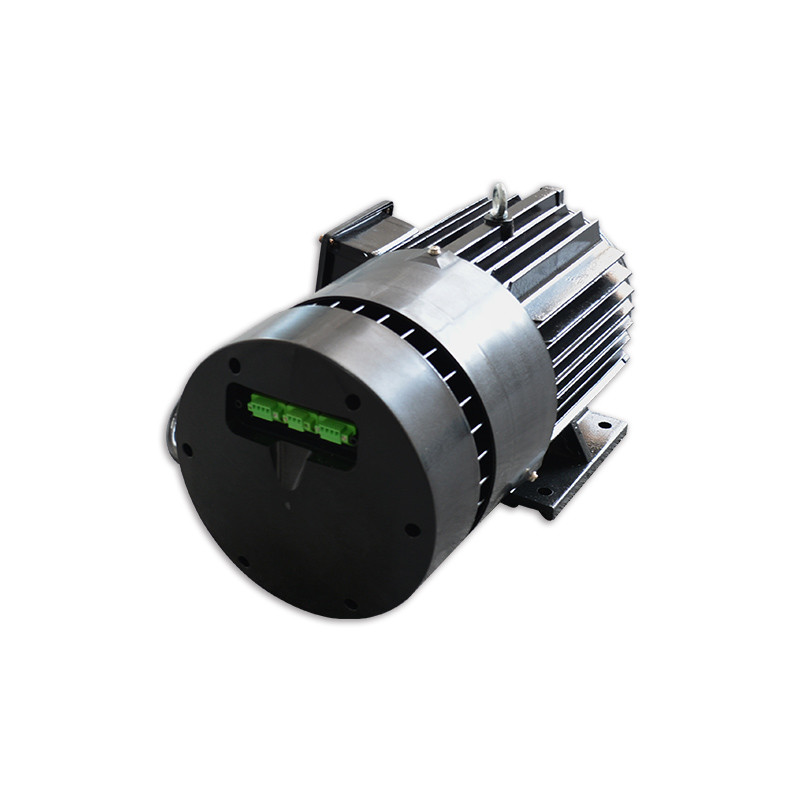

100 To 200Hz Permanent Magnet Synchronous Motor Perpetual Magnetic Motor 380V

  • 100 To 200Hz Permanent Magnet Synchronous Motor Perpetual Magnetic Motor 380V
  • 100 To 200Hz Permanent Magnet Synchronous Motor Perpetual Magnetic Motor 380V
  • 100 To 200Hz Permanent Magnet Synchronous Motor Perpetual Magnetic Motor 380V
Place of Origin China
Brand Name Xicheng
Model Number TYB132-8-11-3000
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation Grade B Installation Mode B3/B35
Output 0.75-15Kw Erequency 100-200Hz
Working System S1 Speed 1500-3000rpm
Voltage 380V Efficiency 88.6%-95.3%
Highlight

100Hz Permanent Magnet Synchronous Motor

,

200Hz Permanent Magnet Synchronous Motor

,

perpetual magnetic motor 380V
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description

Efficient Magnet Synchronous Machine 380V Voltage Flexible Frequency Range 100-200Hz

Product Description:

Permanent Magnet Synchronous Motor is a high-efficiency electric motor that utilizes permanent magnets to synchronize the rotation speed of the motor. It has a wide range of applications in industrial, commercial and residential settings. The motor is characterized by its high efficiency, low energy consumption, and reliable performance. It is designed with insulation grade B and can work with S1 system. It has a power output range from 0.75Kw to 15Kw and voltage range from 380V. Its efficiency ranges from 88.6% to 95.3%. Permanent Magnet Synchronous Motor is a reliable and economical solution for a variety of applications.



Features:

  • High efficiency and energy saving, first-class energy efficiency
  • High power factor, improve grid quality factor
  • High power density, convenient for energy-saving retrofit and upgrade
  • The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions
  • Integrated design of driver and motor, simple wiring and better motor protection


Technical Parameters:

Working System Output
S1 0.75-15Kw
Speed Efficiency
1500-3000rpm 88.6%-95.3%
Insulation Grade Installation Mode
B B3/B35
Voltage Frequency
380V 100-200Hz


Applications:

Permanent Magnet Synchronous Motor, produced by Xicheng, Model No. TYB132-8-11-3000, is an ideal choice for industrial applications. It is made in China with the Minimum Order Quantity of 1PCS and Price of $120-580/PCS, and the Delivery Time is 7-15 work days. Payment Terms include L/C,T/T. The Supply Ability is 500PCS 15-20work days, and the Efficiency is 88.6%-95.3%. The Output of the Motor ranges from 0.75-15Kw, and the Working System is S1. The Installation Mode is B3/B35, and the Speed is 1500-3000rpm.



Support and Services:

Technical Support and Service for Permanent Magnet Synchronous Motor
  • Provide professional and timely technical support and service
  • Provide technical consultation and advice on the selection of Permanent Magnet Synchronous Motor
  • Provide technical training and product introduction
  • Provide data analysis and performance optimization services
100 To 200Hz Permanent Magnet Synchronous Motor Perpetual Magnetic Motor 380V 0100 To 200Hz Permanent Magnet Synchronous Motor Perpetual Magnetic Motor 380V 1100 To 200Hz Permanent Magnet Synchronous Motor Perpetual Magnetic Motor 380V 2

FAQ:

Q1: What is Permanent Magnet Synchronous Motor?
A1: Permanent Magnet Synchronous Motor is an electric motor that uses permanent magnets to create a rotating magnetic field and synchronous speed.

Q2: What is the brand name and model number of this product?
A2: The brand name is Xicheng and the model number is TYB132-8-11-3000.

Q3: Where is this product made?
A3: This product is made in China.

Q4: What is the minimum order quantity?
A4: The minimum order quantity is 1PCS.

Q5: What is the price range?
A5: The price range is $120-580/PCS.
