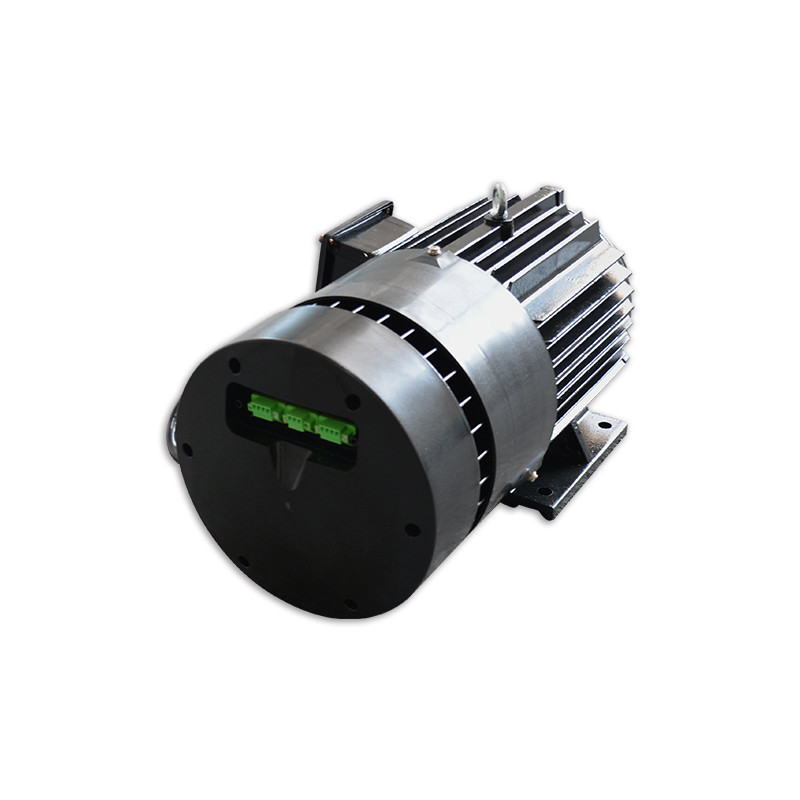

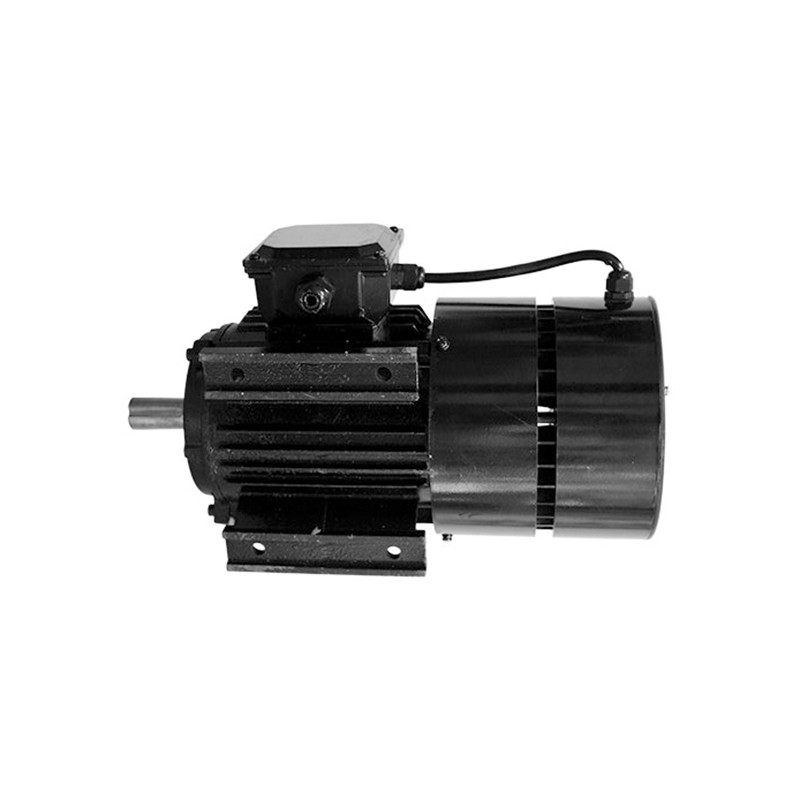

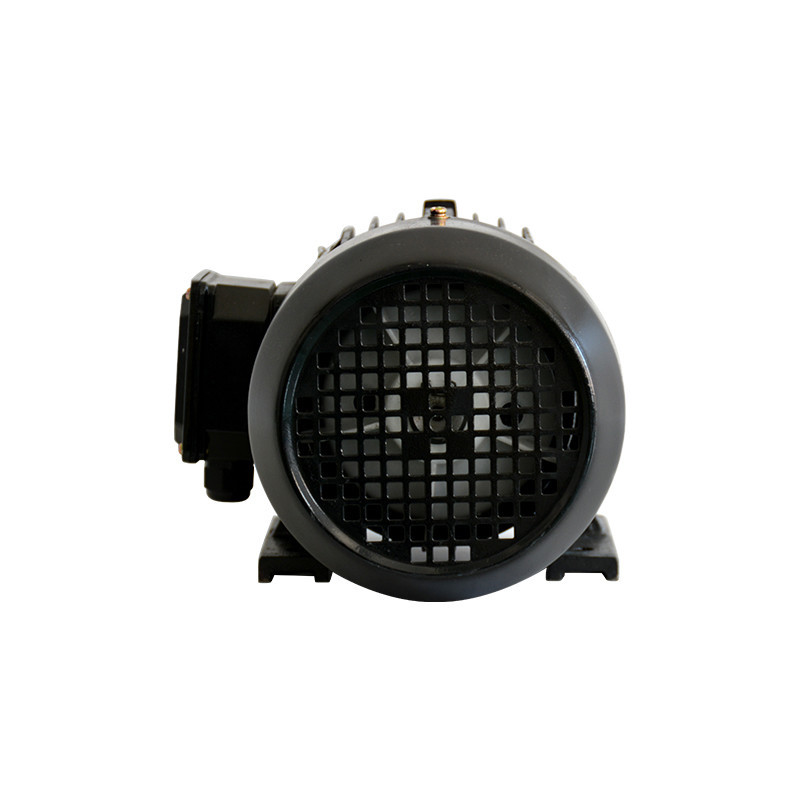

100 - 200Hz Pmsm Electric Motor Synchronous High Speed Pm Motor

  • 100 - 200Hz Pmsm Electric Motor Synchronous High Speed Pm Motor
  • 100 - 200Hz Pmsm Electric Motor Synchronous High Speed Pm Motor
  • 100 - 200Hz Pmsm Electric Motor Synchronous High Speed Pm Motor
Place of Origin China
Brand Name Xicheng
Model Number TYB132-8-11-3000
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Efficiency 88.6%-95.3% Speed 1500-3000rpm
Erequency 100-200Hz Installation Mode B3/B35
Output 0.75-15Kw Working System S1
Voltage 380V Insulation Grade B
Highlight

100Hz pmsm electric motor

,

200Hz pmsm electric motor

,

Synchronous high speed pm motor
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description

Enhance Your Productivity with Permanent Magnet Synchronous Motor 100-200Hz Frequency

Product Description:

Permanent Magnet Synchronous Motors are a type of permanent magnet motor that offers a high efficiency, reliable performance and improved power output. They are designed to operate at a wide range of speeds, from 1500-3000rpm, and can be used in a variety of applications. With an output of 0.75-15Kw, the motor is suitable for use in most industrial and commercial settings. It is also available in a variety of installation modes, including B3/B35, to suit different requirements. Additionally, the motor is designed to operate at 380V and has a working system of S1.



Features:

  • High efficiency and energy saving, first-class energy efficiency
  • High power factor, improve grid quality factor
  • High power density, convenient for energy-saving retrofit and upgrade
  • The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions
  • Integrated design of driver and motor, simple wiring and better motor protection

Technical Parameters:

Parameter Value
Frequency 100-200Hz
Insulation Grade B
Working System S1
Voltage 380V
Efficiency 88.6%-95.3%
Output 0.75-15Kw
Speed 1500-3000rpm
Installation Mode B3/B35


Applications:

The motor is energy-efficient with a high efficiency of 88.6%-95.3%, low noise and durable body. It also features a wide range of voltages, from 380V to 15Kw, and allows for a variety of frequencies from 100 to 200Hz. Besides, it has a B-grade insulation for safety and reliability. The motor is available in minimum order quantity of 1PCS and has a competitive price range of $120-580/PCS. In addition, the motor has a fast delivery time of 7-15 work days, and the supply ability of 500PCS in 15-20 work days. Payment terms include L/C and T/T.



Support and Services:

Permanent Magnet Synchronous Motor Technical Support and Service

We offer a complete range of technical support and services to ensure that your Permanent Magnet Synchronous Motor (PMSM) runs smoothly. Our experienced technical experts will provide assistance with:

  • Designing and developing custom PMSM applications
  • Providing technical advice and guidance
  • Training and support for PMSM users

We are committed to providing the best customer service and technical support for your PMSM. Contact us today to learn more about our services and how we can help you make the most of your PMSM.

100 - 200Hz Pmsm Electric Motor Synchronous High Speed Pm Motor 0100 - 200Hz Pmsm Electric Motor Synchronous High Speed Pm Motor 1100 - 200Hz Pmsm Electric Motor Synchronous High Speed Pm Motor 2

FAQ:

  • Q: What is the Brand Name of this Permanent Magnet Synchronous Motor?
  • A: The Brand Name is Xicheng.
  • Q: What is the Model Number of this Permanent Magnet Synchronous Motor?
  • A: The Model Number is TYB132-8-11-3000.
  • Q: Where is this Permanent Magnet Synchronous Motor manufactured?
  • A: It is manufactured in China.
  • Q: What is the Minimum Order Quantity for this Permanent Magnet Synchronous Motor?
  • A: The Minimum Order Quantity is 1PCS.
  • Q: What is the Price for this Permanent Magnet Synchronous Motor?
  • A: The Price is $120-580/PCS.
