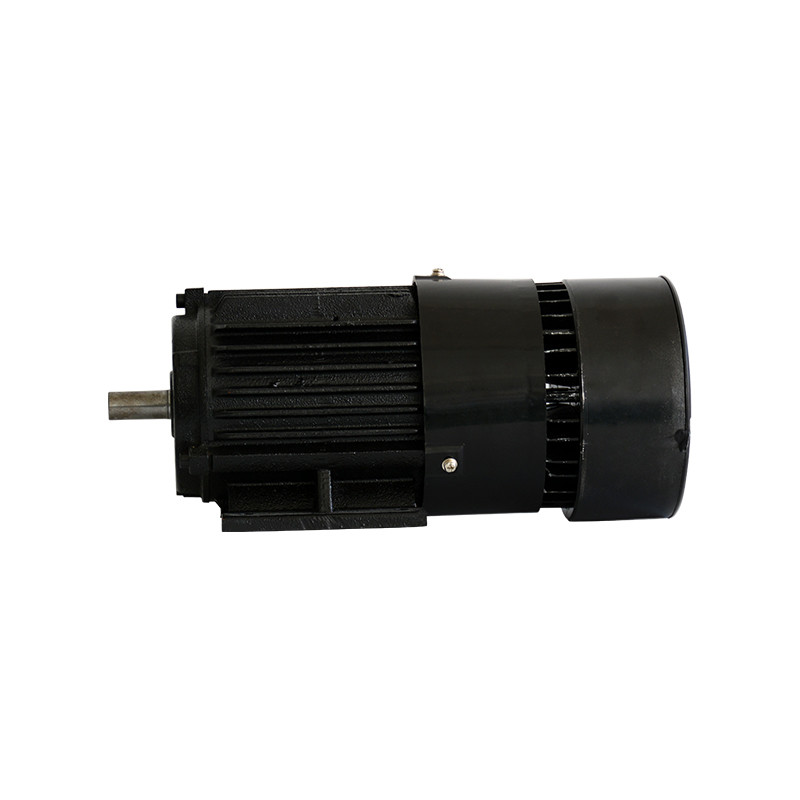

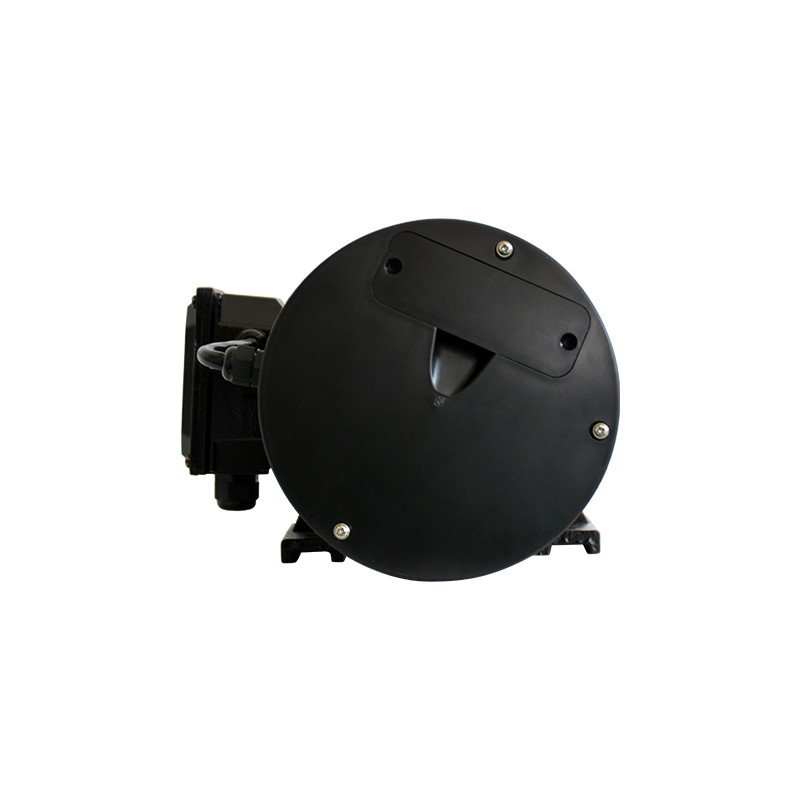

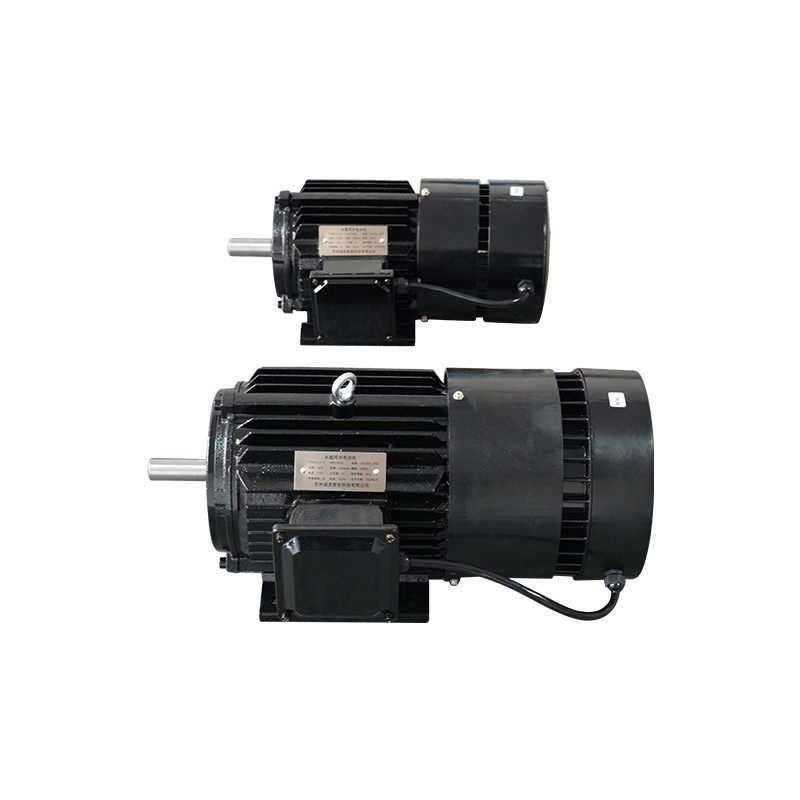

IMB3 IMB35 Permanent Magnet Synchronous Motor Three Phase Pmsm 3000rpm
| Place of Origin | China |
|---|---|
| Brand Name | Xicheng |
| Model Number | TYB80-8-0.75-3000 |
| Minimum Order Quantity | 1PCS |
| Price | $120-580/PCS |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 500PCS 15-20work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Installation Mode | B3/B35 | Voltage | 380V |
|---|---|---|---|
| Insulation Grade | B | Efficiency | 88.6%-95.3% |
| Erequency | 100-200Hz | Working System | S1 |
| Speed | 1500-3000rpm | Output | 0.75-15Kw |
| Highlight | IMB3 Permanent Magnet Synchronous Motor,IMB35 Permanent Magnet Synchronous Motor,three phase pmsm 3000rpm |
||
You can tick the products you need and communicate with us in the message board.
| Type | TYB80-8-0.75-3000 | TYB80-8-1.1-3000 | TYB90-8-1.5-3000 | TYB90-8-2.2-3000 | TYB112-8-3-2500 | TYB112-8-4-2500 | TYB132-8-5.5-2500 | TYB132-8-5.5-1500 | TYB132-8-7.5-1500 | TYB132-8-7.5-3000 | TYB132-8-11-3000 | TYB132-8-15-3000 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Voltage (V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | |
| Erequency (Hz) | 200 | 200 | 200 | 200 | 167 | 167 | 167 | 100 | 100 | 200 | 200 | 200 | |
| Output (Kw) | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Speed (rpm) | 3000 | 3000 | 3000 | 3000 | 2500 | 2500 | 2500 | 1500 | 1500 | 3000 | 3000 | 3000 | |
| Efficiency (%) | 88.6 | 89.8 | 90.9 | 91.8 | 92.6 | 93.3 | 93.9 | 92.1 | 92.6 | 94.5 | 95 | 95.3 | |
| Working system | S1 | S1 | S1 | S1 | S1 | S1 | S1 | S1 | S1 | S1 | S1 | S1 | |
| Insulation grade | B | B | B | B | B | B | B | B | B | B | B | B | |
| Installation mode | B3/B35 | B3/B35 | B3/B35 | B3/B35 | B3/B35 | B3/B35 | B3/B35 | B3/B35 | B3/B35 | B3/B35 | B3/B35 | B3/B35 |
Product Description
380V Permanent Magnet Synchronous Motor Output 0.75-15Kw Efficiency 88.6%-95.3%
Product Introduction:
The product is a permanent magnet motor specially designed for fans,the efficiency index reaches the first-class standard of GB30253-2013 "Energy Efficiency Limits and Energy Efficiency Grades of Permanent Magnet Synchronous Motors",reach the international advanced level of similar products.
Principle:
The three-phase symmetrical current passing through the three-phase winding of the stator will generate a stator rotating magnetic field. The rotating magnetic field of the stator generates current in the cage winding for the rotation of the rotor to generate the rotating magnetic field of the rotor. The asynchronous torque generated by the interaction between the stator rotating magnetic field and the rotor rotating magnetic field makes the rotor turn from stationary to rotating. After the start-up is completed, the rotor winding is no longer active, and the magnetic field generated by the permanent magnet and the stator winding interacts to generate driving torque.
Technical Parameters:
| Technical Parameters | Values |
|---|---|
| Product Name | Permanent Magnet Synchronous Motor |
| Installation Mode | B3/B35 |
| Output | 0.75-15Kw |
| Insulation Grade | B |
| Working System | S1 |
| Frequency | 100-200Hz |
| Efficiency | 88.6%-95.3% |
| Voltage | 380V |
| Speed | 1500-3000rpm |
Advantages of Permanent Magnet Synchronous Motor
High efficiency and energy saving, first-class energy efficiency
High power factor, improve grid quality factor
High power density, convenient for energy-saving retrofit and upgrade
The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions
Integrated design of driver and motor, simple wiring and better motor protection
Support and Services:
Technology Support and Service for Permanent Magnet Synchronous Motor
Our company is dedicated to providing top-quality technology support and service for Permanent Magnet Synchronous Motor (PMSM). With years of experience and expertise in this field, we are committed to offering our customers the best solutions and support for all their PMSM needs.
Technical Support
We have a team of highly skilled and experienced engineers who are available to provide technical support for all aspects of PMSM, including design, installation, troubleshooting, and maintenance. Our engineers are well-versed in the latest technologies and industry standards, and they are always ready to assist our customers with any technical issues they may encounter.
Quality Assurance
All our PMSM products undergo rigorous quality control checks to ensure they meet the highest industry standards. We use only the best materials and components in our manufacturing process, and our products are tested and certified to comply with all relevant regulations and standards.
Thank you for choosing our Permanent Magnet Synchronous Motor. We are committed to providing the best technology support and service to ensure your satisfaction and success. Please do not hesitate to contact us for any assistance or inquiries.
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is Xicheng.
Q: What is the model number of this product?
A: The model number of this product is TYB80-8-0.75-3000.
Q: Where is this product manufactured?
A: This product is manufactured in China.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1PCS.
Q: What is the price range for this product?
A: The price range for this product is $120-580/PCS.
Q: How long does it take to deliver this product?
A: The delivery time for this product is 7-15 work days.
Q: What are the payment terms for this product?
A: The payment terms for this product are L/C and T/T.
Q: How many units of this product can be supplied in a given time frame?
A: The supply ability for this product is 500PCS in 15-20 work days.
