B Insulation Grade 3 Phase Pmsm Magnet Synchronous Machine 15Kw Fixed Magnet Motor

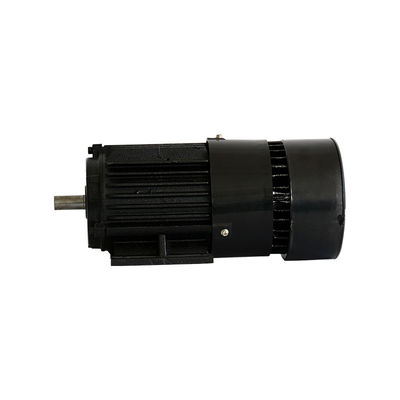

  • B Insulation Grade 3 Phase Pmsm Magnet Synchronous Machine 15Kw Fixed Magnet Motor

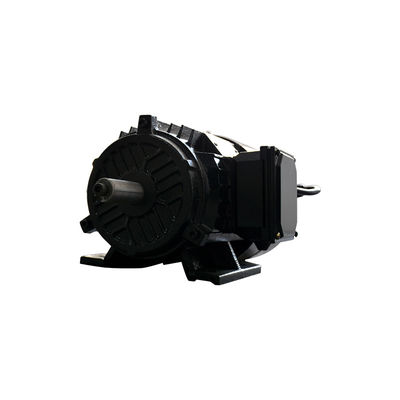

  • B Insulation Grade 3 Phase Pmsm Magnet Synchronous Machine 15Kw Fixed Magnet Motor

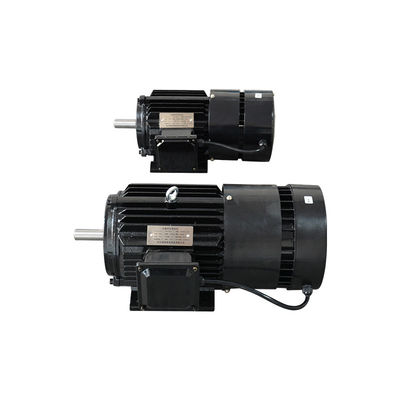

  • B Insulation Grade 3 Phase Pmsm Magnet Synchronous Machine 15Kw Fixed Magnet Motor
Place of Origin China
Brand Name Xicheng
Model Number TYB80-8-0.75-3000
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Erequency 100-200Hz Efficiency 88.6%-95.3%
Voltage 380V Speed 1500-3000rpm
Working System S1 Output 0.75-15Kw
Insulation Grade B Installation Mode B3/B35
Highlight

B Insulation 3 phase pmsm

,

3 phase pmsm Magnet Synchronous

,

15Kw fixed magnet motor
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description
Output Range 0.75-15Kw B Insulation Grade Magnet Synchronous Machine
Introduction

The Xicheng Permanent Magnet Synchronous Motor (PMSM) is a highly efficient and reliable electric motor that is widely used in various industries and applications. Also known as Permanent Magnet Synchronous Electric Motor, it is a type of synchronous motor that uses permanent magnets embedded in the rotor to create a magnetic field and achieve synchronous rotation with the stator's magnetic field. This technology provides significant advantages over traditional AC induction motors, such as higher efficiency, lower noise, and better performance at variable speeds.

Features and Benefits

High efficiency and energy saving, first-class energy efficiency

High power factor, improve grid quality factor

High power density, convenient for energy-saving retrofit and upgrade

The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions
Integrated design of driver and motor, simple wiring and better motor protection

Technical Parameters:

Technical Parameters Value
Magnet Synchronous Machine Permanent Magnet Synchronous Motor
Erequency 100-200Hz
Working System S1
Insulation Grade B
Voltage 380V
Installation Mode B3/B35
Speed 1500-3000rpm
Output 0.75-15Kw
Efficiency 88.6%-95.3%



Xicheng Permanent Magnet Synchronous Motor

B Insulation Grade 3 Phase Pmsm Magnet Synchronous Machine 15Kw Fixed Magnet Motor 0

B Insulation Grade 3 Phase Pmsm Magnet Synchronous Machine 15Kw Fixed Magnet Motor 1B Insulation Grade 3 Phase Pmsm Magnet Synchronous Machine 15Kw Fixed Magnet Motor 2



Support and Services:

Technical Support and Services for Permanent Magnet Synchronous Motor

Thank you for choosing our Permanent Magnet Synchronous Motor. We are committed to providing high-quality products and excellent technical support and services to our customers.

Technical Support

Our team of highly skilled engineers and technicians are dedicated to providing technical support for our Permanent Magnet Synchronous Motor. We offer 24/7 technical assistance to help troubleshoot any issues you may encounter.

We also provide detailed product manuals, installation guides, and troubleshooting tips to ensure smooth operation of the motor. In addition, our technical support team is always available to provide customized solutions and recommendations for your specific needs.

Contact Us

If you have any technical questions or require our services, please do not hesitate to contact our customer support team. You can reach us through phone, email, or our online support portal.

Thank you again for choosing our Permanent Magnet Synchronous Motor. We are confident that our technical support and services will meet your expectations and contribute to the success of your operations.
