Installation Mode B3/B35 Permanent Rare Earth Magnet Motor 380V 0.75 - 15Kw

  • Installation Mode B3/B35 Permanent Rare Earth Magnet Motor 380V 0.75 - 15Kw
  • Installation Mode B3/B35 Permanent Rare Earth Magnet Motor 380V 0.75 - 15Kw
  • Installation Mode B3/B35 Permanent Rare Earth Magnet Motor 380V 0.75 - 15Kw
Place of Origin China
Brand Name Xicheng
Model Number TYB132-8-7.5-1500
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency 100-200Hz Voltage 380V
Insulation Grade B Output 0.75-15Kw
Working System S1 Speed 1500-3000rpm
Product Name Rare Earth Permanent Magnet Motor Installation Mode B3/B35
Highlight

rare earth magnet motor 380V

,

rare earth magnet motor 0.75KW

,

electric magnetic motor 15Kw
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description

Installation Mode B3/B35 Rare Earth Permanent Magnet Motor Voltage 380V Output 0.75-15Kw

Product Description:

Rare Earth Permanent Magnet Motor is a powerful, energy-efficient and highly reliable Permanent Magnetic Motor. It is rated with Insulation Grade B and designed to run in S1 working system. This motor is equipped with rare earth magnets, allowing it to generate strong magnetic fields with frequencies between 100 and 200Hz. It is known for its high efficiency, ranging from 88.6% to 95.3%, making it a perfect choice for industrial equipment.

This Permanent Magnet Electric Motor is ideal for a variety of applications, such as pumps, compressors, fans, and conveyors. The Rare Earth Magnet Motor features a robust construction, making it highly durable and able to withstand harsh working environments.



Features:



  1. High efficiency and energy saving, first-class energy efficiency
  2. High power factor, improve grid quality factor
  3. High power density, convenient for energy-saving retrofit and upgrade
  4. The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions
  5. Integrated design of driver and motor, simple wiring and better motor protection


Technical Parameters:

Parameter Value
Working System S1
Efficiency 88.6%-95.3%
Speed 1500-3000rpm
Output 0.75-15Kw
Product Name Rare Earth Permanent Magnet Motor
Voltage 380V
Frequency 100-200Hz
Insulation Grade B
Installation Mode B3/B35


Applications:

Rare Earth Permanent Magnet Motor, produced by Xicheng, is a high-quality magnetic permanent motor with model number TYB132-8-7.5-1500. It is of low cost, ranging from $120 to $580 per piece. And it is available in a minimum order quantity of 1 piece and has a delivery time of 7 to 15 working days. Payment can be made through L/C or T/T. The company can also supply up to 500 pieces within 15 to 20 working days. It has a voltage of 380V and installation mode of B3/B35. Additionally, its frequency is 100 to 200Hz, speed is 1,500 to 3,000 rpm, and insulation grade is B. The motor is made from rare earth and permanent magnets that make it powerful, durable, and reliable. It is an ideal option for various applications in various industries.


Support and Services:

Rare Earth Permanent Magnet Motor Technical Support and Services

We provide full technical support and services for our Rare Earth Permanent Magnet Motors. Our knowledgeable team of engineers and technicians are available to answer any questions you may have about our products.

For more information on our Rare Earth Permanent Magnet Motor Technical Support and Services, please contact us.

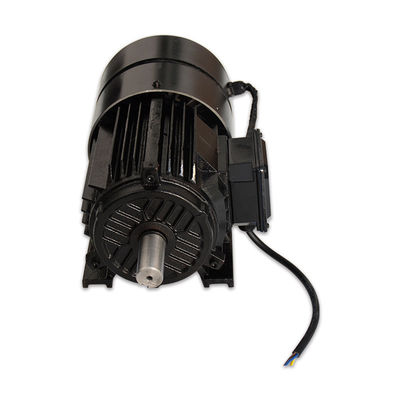

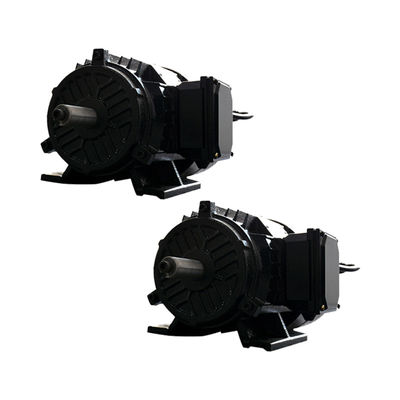

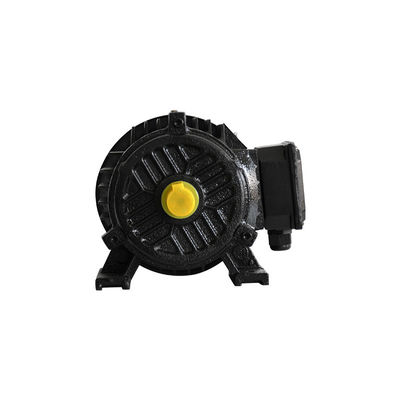

 Installation Mode B3/B35 Permanent Rare Earth Magnet Motor 380V 0.75 - 15Kw 0Installation Mode B3/B35 Permanent Rare Earth Magnet Motor 380V 0.75 - 15Kw 1Installation Mode B3/B35 Permanent Rare Earth Magnet Motor 380V 0.75 - 15Kw 2

FAQ:

Q1: What is the Brand Name of this Rare Earth Permanent Magnet Motor?
A1: The Brand Name of this Rare Earth Permanent Magnet Motor is Xicheng.
Q2: What is the Model Number of this Rare Earth Permanent Magnet Motor?
A2: The Model Number of this Rare Earth Permanent Magnet Motor is TYB132-8-7.5-1500.
Q3: Where is this Rare Earth Permanent Magnet Motor made?
A3: This Rare Earth Permanent Magnet Motor is made in China.
Q4: What is the Minimum Order Quantity for this Rare Earth Permanent Magnet Motor?
A4: The Minimum Order Quantity for this Rare Earth Permanent Magnet Motor is 1PCS.
Q5: How much is this Rare Earth Permanent Magnet Motor?
A5: The price of this Rare Earth Permanent Magnet Motor is between $120 to $580 per PCS.
