Pump And Fan Rare Earth Permanent Magnet Driven Motor 0.75 - 55Kw Variable Frequency

  • Pump And Fan Rare Earth Permanent Magnet Driven Motor 0.75 - 55Kw Variable Frequency
  • Pump And Fan Rare Earth Permanent Magnet Driven Motor 0.75 - 55Kw Variable Frequency
  • Pump And Fan Rare Earth Permanent Magnet Driven Motor 0.75 - 55Kw Variable Frequency
Place of Origin China
Brand Name Xicheng
Model Number TYB132-8-11-3000
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15 work days
Supply Ability 500PCS 15-20wor kdays

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Magnet Driven Motor 0.75Kw

,

Magnet Driven Motor 55Kw

,

rare earth magnets in electric motors
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description

Special for pump and fan Variable frequency rare earth permanent magnet motor 0.75-55Kw



Principle:

     The three-phase symmetrical current passing through the three-phase winding of the stator will generate a stator rotating magnetic field. The rotating magnetic field of the stator generates current in the cage winding for the rotation of the rotor to generate the rotating magnetic field of the rotor. The asynchronous torque generated by the interaction between the stator rotating magnetic field and the rotor rotating magnetic field makes the rotor turn from stationary to rotating. After the start-up is completed, the rotor winding is no longer active, and the magnetic field generated by the permanent magnet and the stator winding interacts to generate driving torque.

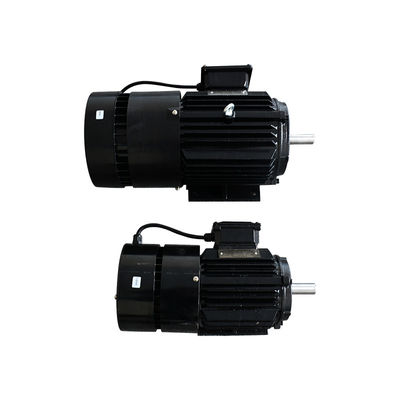

Pump And Fan Rare Earth Permanent Magnet Driven Motor 0.75 - 55Kw Variable Frequency 0

     The product is a permanent magnet motor specially designed for fans,the efficiency index reaches the first-class standard of GB30253-2013 "Energy Efficiency Limits and Energy Efficiency Grades of Permanent Magnet Synchronous Motors",reach the international advanced level of similar products.

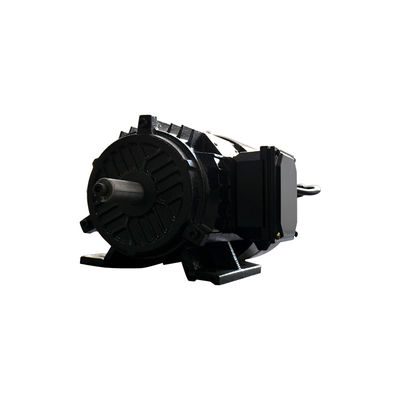

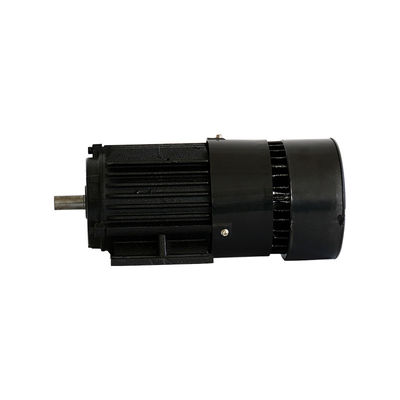

Pump And Fan Rare Earth Permanent Magnet Driven Motor 0.75 - 55Kw Variable Frequency 1Pump And Fan Rare Earth Permanent Magnet Driven Motor 0.75 - 55Kw Variable Frequency 2
