Compact Versatile Rare Earth Permanent Magnet Motor High Speed Pm Motor

  • Compact Versatile Rare Earth Permanent Magnet Motor High Speed Pm Motor
  • Compact Versatile Rare Earth Permanent Magnet Motor High Speed Pm Motor
  • Compact Versatile Rare Earth Permanent Magnet Motor High Speed Pm Motor
Place of Origin China
Brand Name Xicheng
Model Number TYB132-8-7.5-1500
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working System S1 Efficiency 88.6%-95.3%
Voltage 380V Insulation Grade B
Product Name Rare Earth Permanent Magnet Motor Frequency 100-200Hz
Speed 1500-3000rpm Output 0.75-15Kw
Highlight

Compact Rare Earth Permanent Magnet Motor

,

Versatile Rare Earth Permanent Magnet Motor

,

high speed pm motor 3000rpm
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description

Compact and Versatile Permanent Magnetic Motor for Various Applications



Product Description:

Rare Earth Permanent Magnet Motor is a kind of permanent magnet electric motor using rare earth magnet materials, which has high voltage, wide frequency, high speed, good efficiency and insulation grade. It is designed to work in 380V voltage range, 100-200Hz frequency range, 1500-3000rpm speed range, 88.6%-95.3% efficiency and B insulation grade.

This motor is not only high in performance, but also reliable and durable.

This motor is also environmental friendly and energy saving. It is the perfect combination of rare earth permanent magnet material, modern design and advanced technology.

Features:

  • High efficiency and energy saving, first-class energy efficiency
  • High power factor, improve grid quality factor
  • High power density, convenient for energy-saving retrofit and upgrade
  • The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions
  • Integrated design of driver and motor, simple wiring and better motor protection





Technical Parameters:



Product Name Technical Parameters
Rare Earth Permanent Magnet Motor Working System: S1
Installation Mode: B3/B35
Efficiency: 88.6%-95.3%
Frequency: 100-200Hz
Speed: 1500-3000rpm
Voltage: 380V
Insulation Grade: B
Output: 0.75-15Kw



Applications:



Rare Earth Permanent Magnet Motor by Xicheng

Xicheng's Rare Earth Permanent Magnet Motor (TYB132-8-7.5-1500) is a reliable and powerful device that provides exceptional efficiency, frequency, and speed. This motor is designed to meet the needs of customers who require a high-performance motor that can operate in harsh environments. The magnetic permanent motor is equipped with rare earth magnets, which provide superior magnetic strength and durability. It is available in a variety of sizes and speeds, enabling customers to select the right motor for their specific application.



Support and Services:



Technical Support & Service for Rare Earth Permanent Magnet Motors

We provide technical support and service for our Rare Earth Permanent Magnet Motors. Our experienced engineers are available for technical inquiries and provide the best technical guidance.

We offer a wide range of services for our customers:

  • Pre-sales technical advice and support
  • Troubleshooting and technical support
  • Spare parts supply and replacement

We strive to provide our customers with the highest quality products and services. If you have any questions or require further assistance, please do not hesitate to contact us.

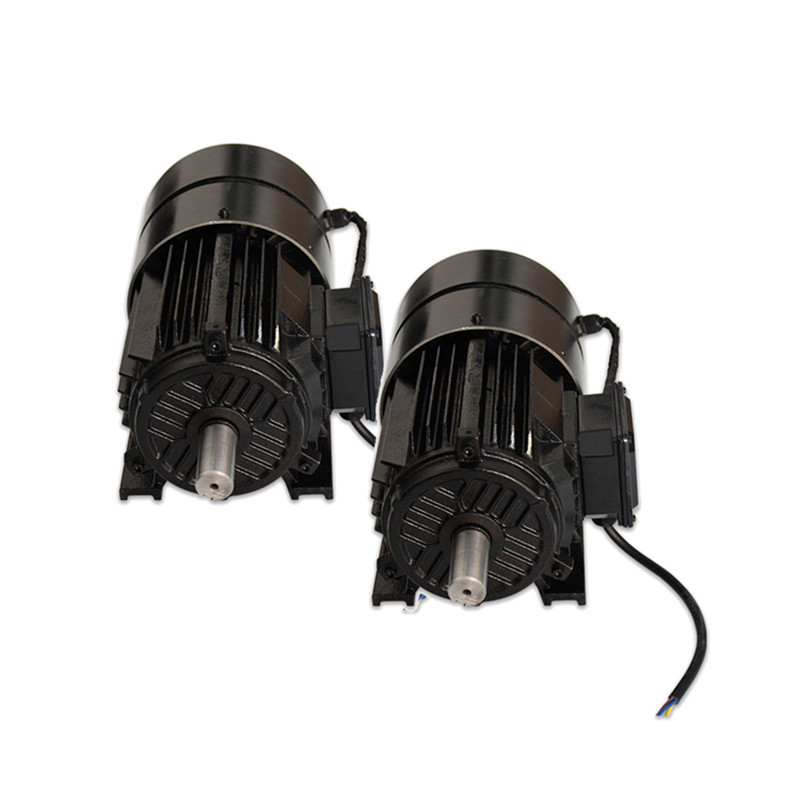

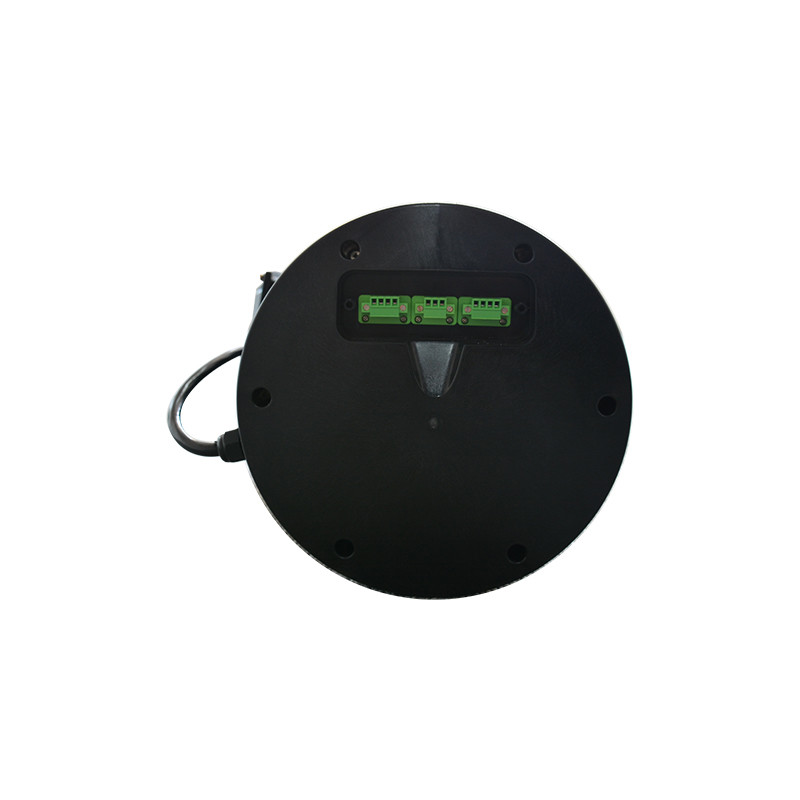

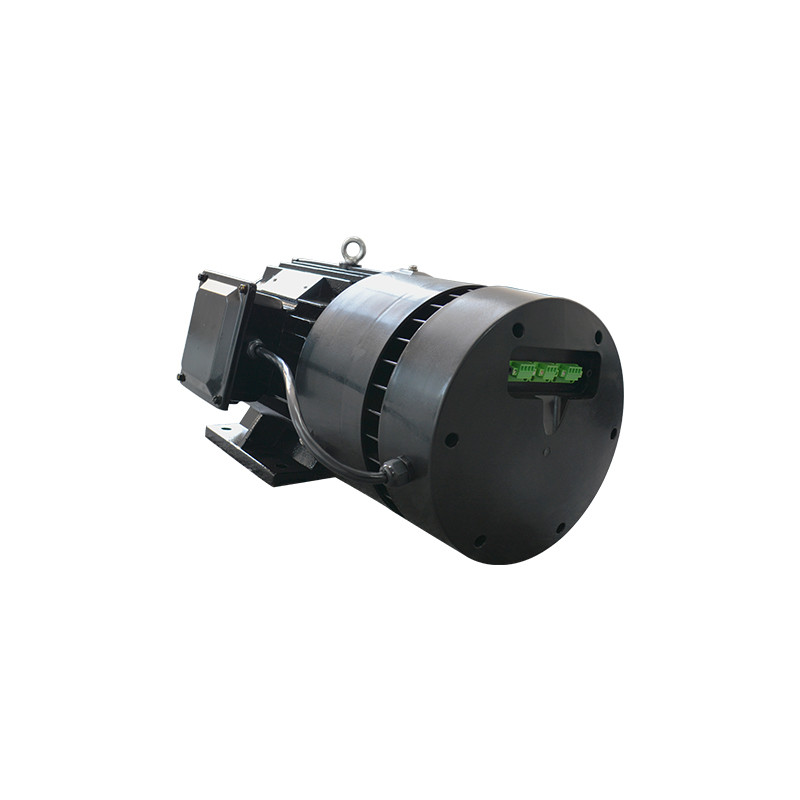

Compact Versatile Rare Earth Permanent Magnet Motor High Speed Pm Motor 0Compact Versatile Rare Earth Permanent Magnet Motor High Speed Pm Motor 1Compact Versatile Rare Earth Permanent Magnet Motor High Speed Pm Motor 2

FAQ:



Q&A About Xicheng TYB132-8-7.5-1500 Rare Earth Permanent Magnet Motor
  • Q: What is the Brand Name of the Rare Earth Permanent Magnet Motor?
    A: The Brand Name is Xicheng.
  • Q: What is the Model Number of the Rare Earth Permanent Magnet Motor?
    A: The Model Number is TYB132-8-7.5-1500.
  • Q: Where is the Rare Earth Permanent Magnet Motor made?
    A: The Rare Earth Permanent Magnet Motor is made in China.
  • Q: What is the Minimum Order Quantity for the Rare Earth Permanent Magnet Motor?
    A: The Minimum Order Quantity is 1PCS.
  • Q: What is the Price Range for the Rare Earth Permanent Magnet Motor?
    A: The Price Range is from $120 to $580 per PCS.
