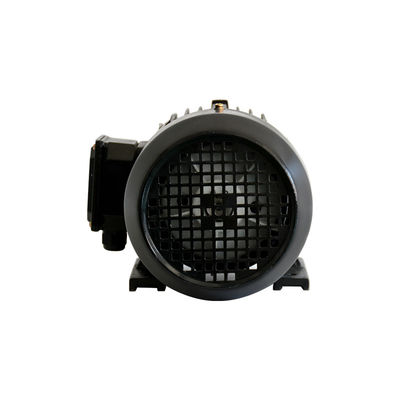

1500 - 3000rpm Rare Earth Permanent Magnet Motor For High-Frequency Applications

  • 1500 - 3000rpm Rare Earth Permanent Magnet Motor For High-Frequency Applications
  • 1500 - 3000rpm Rare Earth Permanent Magnet Motor For High-Frequency Applications
  • 1500 - 3000rpm Rare Earth Permanent Magnet Motor For High-Frequency Applications
Place of Origin China
Brand Name Xicheng
Model Number TYB132-8-7.5-1500
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Rare Earth Permanent Magnet Motor Output 0.75-15Kw
Efficiency 88.6%-95.3% Insulation Grade B
Frequency 100-200Hz Working System S1
Installation Mode B3/B35 Voltage 380V
Highlight

1500rpm Rare Earth Permanent Magnet Motor

,

3000rpm Rare Earth Permanent Magnet Motor

,

electric magnetic motor 15Kw
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description

1500-3000rpm Rare Earth Magnet Motor for High-Frequency Applications



Product Description:

Our Rare Earth Permanent Magnet Motor is a high performance motor with superior speed, voltage, working system, efficiency and frequency. It offers an incredible speed range between 1500-3000rpm with a voltage of 380V, a working system of S1, an efficiency rating of 88.6%-95.3% and a frequency of 100-200Hz. The Rare Earth Permanent Magnet Motor is a powerful and reliable choice for various applications and is designed to provide optimal performance with exceptional magnetism and high quality materials. It is ideal for those looking for a Permanent Magnetic Motor, Magnetic Permanent Motor, or a Rare Earth Permanent Magnet Motor.



Features:

  1. High efficiency and energy saving, first-class energy efficiency
  2. High power factor, improve grid quality factor
  3. High power density, convenient for energy-saving retrofit and upgrade
  4. The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions
  5. Integrated design of driver and motor, simple wiring and better motor protection


Technical Parameters:

Attribute Value
Product Name Rare Earth Permanent Magnet Motor
Output 0.75-15Kw
Installation Mode B3/B35
Efficiency 88.6%-95.3%
Voltage 380V
Speed 1500-3000rpm
Insulation Grade B
Frequency 100-200Hz
Working System S1


Applications:

Rare Earth Permanent Magnet Motor - Xicheng TYB132-8-7.5-1500

This Rare Earth Permanent Magnet Motor, manufactured by Xicheng, carries the model number TYB132-8-7.5-1500 and is of high quality. It is made in China and is available with a minimum order quantity of 1PCS. You can buy this motor at a price range of $120-580/PCS and the delivery time is 7-15 work days. The payment terms are L/C,T/T and the supply ability is 500PCS 15-20work days. This permanent magnet motor has a insulation grade of B and an installation mode of B3/B35. The voltage is 380V and the frequency is 100-200Hz and the speed is 1500-3000rpm.



Support and Services:

Rare Earth Permanent Magnet Motors offers technical support and service for their product. Customers can contact Xicheng directly for any product inquiries. Xicheng also provides a comprehensive online product manual which has detailed instructions on installation, operation, and maintenance.

 1500 - 3000rpm Rare Earth Permanent Magnet Motor For High-Frequency Applications 01500 - 3000rpm Rare Earth Permanent Magnet Motor For High-Frequency Applications 11500 - 3000rpm Rare Earth Permanent Magnet Motor For High-Frequency Applications 2

FAQ:

Q: What is the brand name of this product?

A: The brand name of this product is Xicheng.

Q: What is the model number of this product?

A: The model number of this product is TYB132-8-7.5-1500.

Q: Where is this product manufactured?

A: This product is manufactured in China.

Q: What is the minimum order quantity?

A: The minimum order quantity is 1PCS.

Q: What is the price range?

A: The price range is $120-580/PCS.
