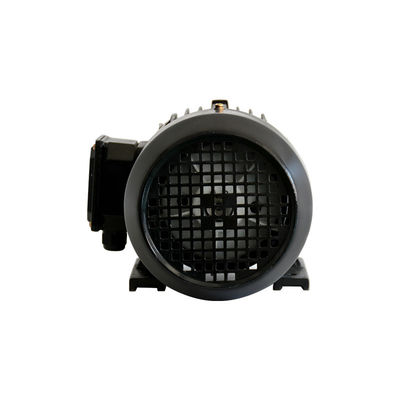

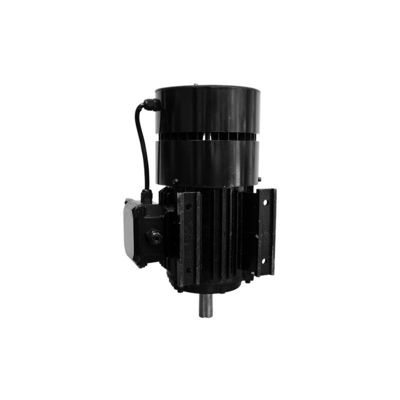

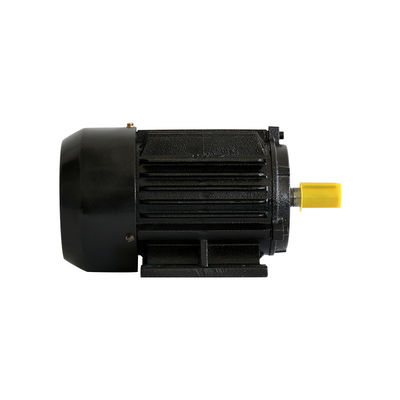

100 - 200Hz Rare Earth Permanent Magnet Synchronous Motor B3/B35 Installation

100-200Hz Frequency Rare Earth Permanent Magnet Motor with B3/B35 Installation Mode

Product Description:

Our Rare Earth Permanent Magnet Motor is a high-performance and reliable motor with an installation mode of B3/B35, a speed of 1500-3000rpm, a working system of S1, a frequency of 100-200Hz and an insulation grade of B. It is designed with rare earth permanent magnets for superior performance and is a great choice for a wide range of applications, from fan motors to industrial drives. With its high efficiency and low noise operation, this magnetic permanent motor is a great choice for your next industrial or commercial project.

Principle:The three-phase symmetrical current passing through the three-phase winding of the stator will generate a stator rotating magnetic field. The rotating magnetic field of the stator generates current in the cage winding for the rotation of the rotor to generate the rotating magnetic field of the rotor. The asynchronous torque generated by the interaction between the stator rotating magnetic field and the rotor rotating magnetic field makes the rotor turn from stationary to rotating. After the start-up is completed, the rotor winding is no longer active, and the magnetic field generated by the permanent magnet and the stator winding interacts to generate driving torque.

Features:

• High efficiency and energy saving, first-class energy efficiency
• High power factor, improve grid quality factor
• High power density, convenient for energy-saving retrofit and upgrade
• The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions
• Integrated design of driver and motor, simple wiring and better motor protection

Technical Parameters:

Applications:

The product is a permanent magnet motor specially designed for fans,the efficiency index reaches the first-class standard of GB30253-2013 "Energy Efficiency Limits and Energy Efficiency Grades of Permanent Magnet Synchronous Motors",reach the international advanced level of similar products.

It is designed to operate at a voltage of 380V and a speed range of 1500-3000rpm, with an efficiency of 88.6%-95.3%. The motor is available in two installation modes, B3/B35 and has a minimum order quantity of 1PCS. The price of the motor is $120-580/PCS, and the delivery time is 7-15 work days, with a supply ability of 500PCS 15-20work days. Payment terms are L/C,T/T.

Support and Services:

We provide comprehensive technical support and services for Rare Earth Permanent Magnet Motor, including:

• Free consulting services to assist customers in selecting the most suitable products.
• Free technical training to ensure customers are able to use the products properly.
• Free troubleshooting to help customers solve any problems during product usage.
• Free upgrade services to keep customers up-to-date with the latest features.
• 24/7 customer service to ensure customers are able to get immediate help when needed.

FAQ:
