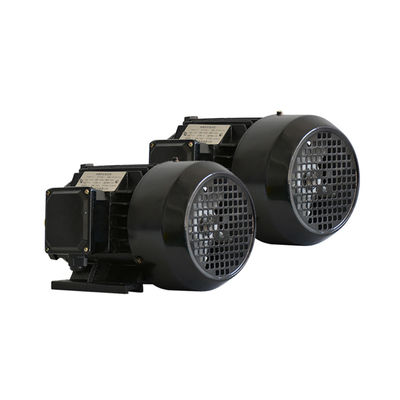

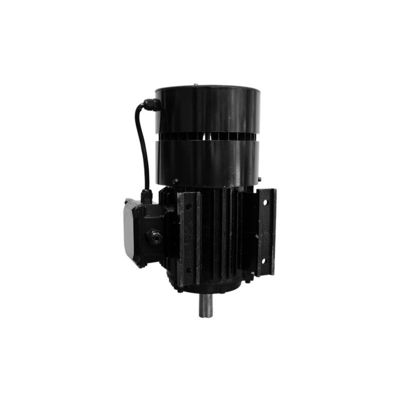

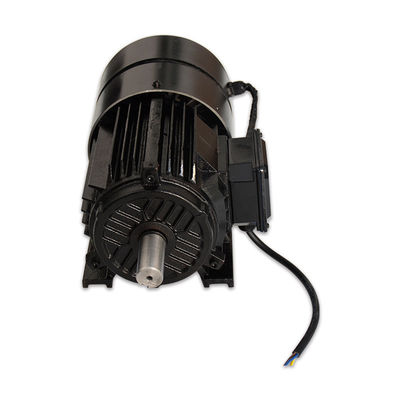

380V Rare Earth Permanent Magnet Motor Efficient Pmsm Electric Motor B3/B35

  • 380V Rare Earth Permanent Magnet Motor Efficient Pmsm Electric Motor B3/B35
  • 380V Rare Earth Permanent Magnet Motor Efficient Pmsm Electric Motor B3/B35
  • 380V Rare Earth Permanent Magnet Motor Efficient Pmsm Electric Motor B3/B35
Place of Origin China
Brand Name Xicheng
Model Number TYB90-8-1.5-3000
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Rare Earth Permanent Magnet Motor Efficiency 88.6%-95.3%
Speed 1500-3000rpm Output 0.75-15Kw
Frequency 100-200Hz Insulation Grade B
Installation Mode B3/B35 Working System S1
Highlight

380V Rare Earth Permanent Magnet Motor

,

Rare Earth Permanent Magnet Motor IMB3

,

pmsm electric motor IMB35
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description

Reliable Permanent Magnetic Motor with 380V Voltage and Efficient System

Product Description:

Rare Earth Permanent Magnet Motor

The product is a permanent magnet motor specially designed for fans,the efficiency index reaches the first-class standard of GB30253-2013 "Energy Efficiency Limits and Energy Efficiency Grades of Permanent Magnet Synchronous Motors",reach the international advanced level of similar products.It has a high efficiency and low noise level, while offering a wide range of output power from 0.75kw to 15kw and a speed of 1500-3000 rpm. This motor also has a frequency range of 100-200 Hz, and an insulation grade of B. It is a reliable source of power and is a great choice for a variety of applications.

For those looking for a reliable and efficient source of power, the Rare Earth Permanent Magnet Motor is an ideal choice. Its wide range of output power from 0.75kw to 15kw, speed range of 1500-3000 rpm, and frequency of 100-200 Hz, makes it suitable for a variety of applications. Its insulation grade of B also ensures that it is safe to use.



Features:

  • Product Name: Rare Earth Permanent Magnet Motor
  • Working System: S1
  • Efficiency: 88.6%-95.3%
  • Speed: 1500-3000rpm
  • Output: 0.75-15Kw
  • Permanent Magnet Electric Motor
  • Rare Earth Permanent Magnet Motor
  • Permanent Magnetic Motor

Applications:

Xicheng's Rare Earth Permanent Magnet Motor (TYB90-8-1.5-3000) is a high performance motor that is designed to provide reliable, efficient, and cost-effective operation. With a rated speed of 1500-3000rpm, a frequency of 100-200Hz, and an efficiency of 88.6%-95.3%, this motor offers superior performance and reliability. It is also designed with insulation grade B, making it suitable for a wide range of applications. This motor is available in a minimum order quantity of 1PCS and ranges in price from $120-$580/PCS, with delivery time of 7-15 work days and payment terms of L/C, T/T. Xicheng also offers a supply ability of 500PCS with delivery time of 15-20 work days.

Support and Services:

Rare Earth Permanent Magnet Motor Technical Support and Service

We provide a full range of technical support and service for our Rare Earth Permanent Magnet Motor products. Our technical support and service includes:

  • 24/7 online technical support - providing technical assistance via phone, chat or email.
  • Software updates - we provide regular software updates and patches to ensure our products are up to date.
  • Training and tutorials - we provide comprehensive training and tutorials to ensure our customers are able to operate our products effectively.

For more information on our technical support and service, please contact us by phone, email or chat.

380V Rare Earth Permanent Magnet Motor Efficient Pmsm Electric Motor B3/B35 0380V Rare Earth Permanent Magnet Motor Efficient Pmsm Electric Motor B3/B35 1380V Rare Earth Permanent Magnet Motor Efficient Pmsm Electric Motor B3/B35 2380V Rare Earth Permanent Magnet Motor Efficient Pmsm Electric Motor B3/B35 3

FAQ:

The Brand Name of the Rare Earth Permanent Magnet Motor is Xicheng.

The Model Number of the Rare Earth Permanent Magnet Motor is TYB90-8-1.5-3000.

The Rare Earth Permanent Magnet Motor is from China.

The Minimum Order Quantity for the Rare Earth Permanent Magnet Motor is 1PCS.

The Price for the Rare Earth Permanent Magnet Motor is $120-580/PCS.
