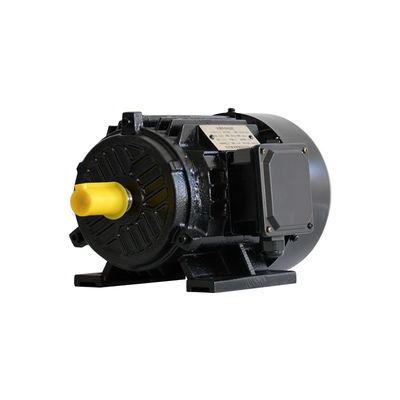

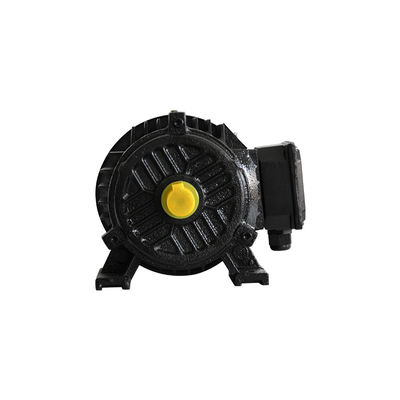

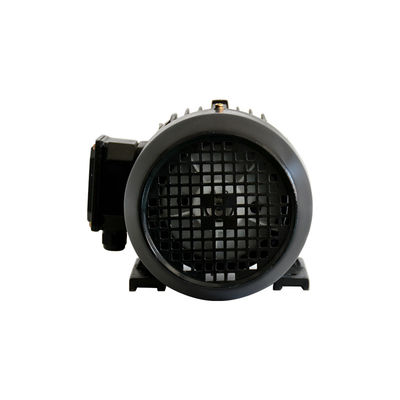

Efficiency 88.6% - 95.3% 3 Phase Pmsm Motor 380V Electric Magnetic Motor

  • Efficiency 88.6% - 95.3% 3 Phase Pmsm Motor 380V Electric Magnetic Motor
  • Efficiency 88.6% - 95.3% 3 Phase Pmsm Motor 380V Electric Magnetic Motor
  • Efficiency 88.6% - 95.3% 3 Phase Pmsm Motor 380V Electric Magnetic Motor
Place of Origin China
Brand Name Xicheng
Model Number TYB80-8-0.75-3000
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Installation Mode B3/B35 Output 0.75-15Kw
Voltage 380V Efficiency 88.6%-95.3%
Insulation Grade B Working System S1
Speed 1500-3000rpm Erequency 100-200Hz
Highlight

Efficiency 88.6% 3 phase pmsm motor

,

Efficiency 95.3% 3 phase pmsm motor

,

380V electric magnetic motor
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description

Efficiency 88.6%-95.3% Permanent Magnet Synchronous Motor 380V

Product Overview


The Permanent Magnet Synchronous Motor is a high-performance motor designed for industrial applications. It operates at a voltage of 380V, making it suitable for use in most industrial settings. With its high efficiency and low maintenance requirement, this motor is the perfect choice for your business needs.

The product is a permanent magnet motor specially designed for fans,the efficiency index reaches the first-class standard of GB30253-2013 "Energy Efficiency Limits and Energy Efficiency Grades of Permanent Magnet Synchronous Motors",reach the international advanced level of similar products.



Technical Parameters:





Technical Parameters Description
Product Name Permanent Magnet Synchronous Motor
Other Names Permanent Magnet Synchronous Electric Motor, Permanent Magnet Motor, PMSM
Efficiency 88.6%-95.3%
Voltage 380V
Frequency 100-200Hz
Working System S1
Output 0.75-15Kw
Insulation Grade B
Installation Mode B3/B35
Speed 1500-3000rpm





Permanent Magnet Synchronous Motor - Xicheng

Brand Name: Xicheng

Model Number: TYB80-8-0.75-3000

Place of Origin: China

Minimum Order Quantity: 1PCS

Price: $120-580/PCS

Delivery Time: 7-15 work days

Payment Terms: L/C,T/T

Supply Ability: 500PCS 15-20work days

Installation Mode: B3/B35

Voltage: 380V

Erequency: 100-200Hz

Insulation Grade: B

Speed: 1500-3000rpm


Why Choose Xicheng's Permanent Magnet Synchronous Motor?




  • High efficiency and energy saving, first-class energy efficiency
  • High power factor, improve grid quality factor
  • High power density, convenient for energy-saving retrofit and upgrade
  • The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions
  • Integrated design of driver and motor, simple wiring and better motor protection
