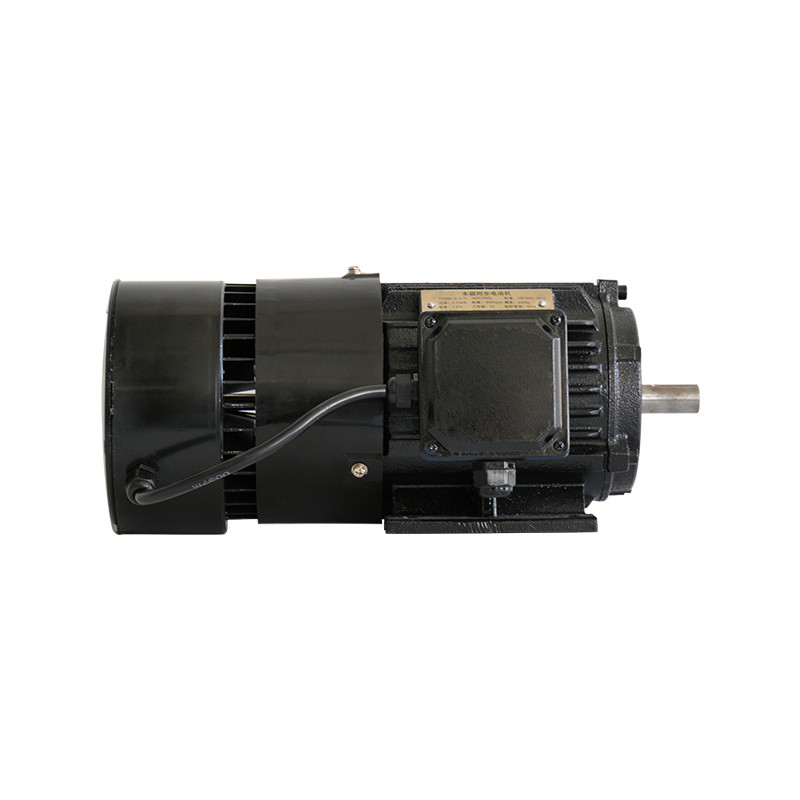

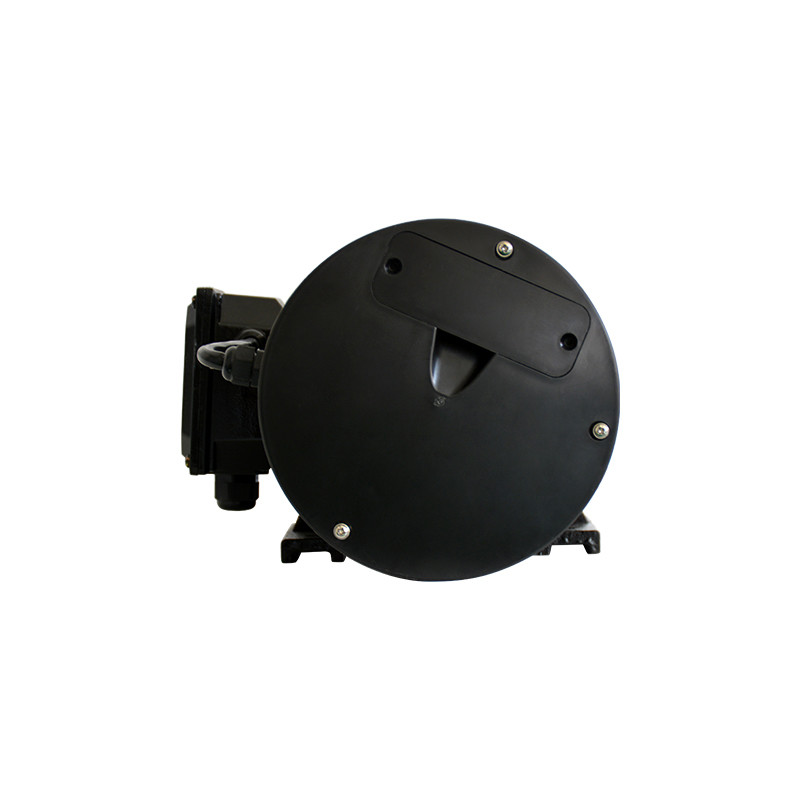

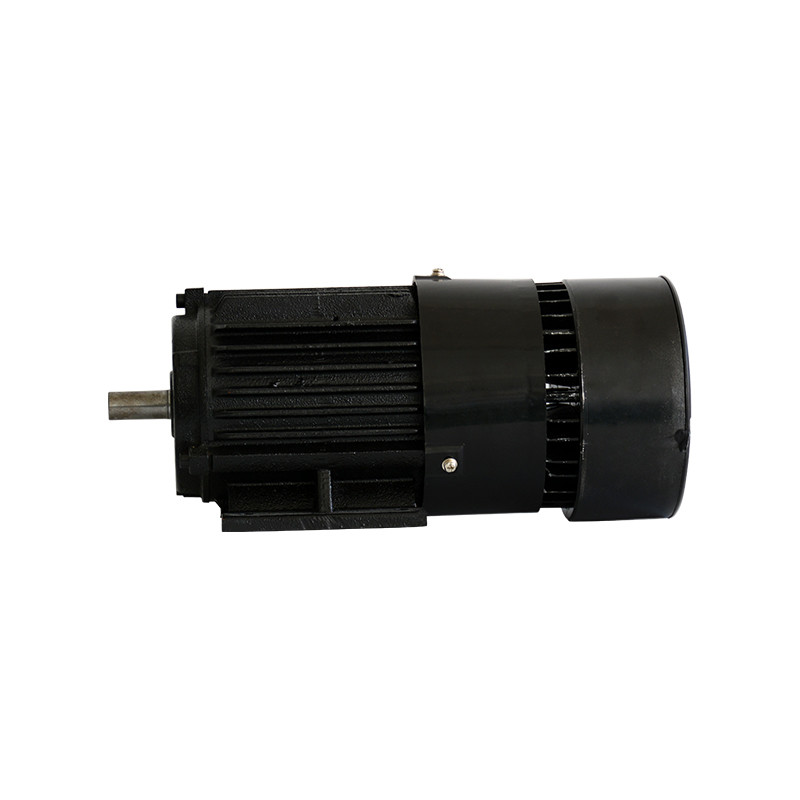

High Power Permanent Magnet Synchronous Motor Three Phase 0.75KW 380V

  • High Power Permanent Magnet Synchronous Motor Three Phase 0.75KW 380V
  • High Power Permanent Magnet Synchronous Motor Three Phase 0.75KW 380V
  • High Power Permanent Magnet Synchronous Motor Three Phase 0.75KW 380V
Place of Origin China
Brand Name Xicheng
Model Number TYB80-8-0.75-3000
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Speed 1500-3000rpm Insulation Grade B
Voltage 380V Working System S1
Installation Mode B3/B35 Efficiency 88.6%-95.3%
Output 0.75-15Kw Erequency 100-200Hz
Highlight

High power Permanent Magnet Synchronous Motor

,

Permanent Magnet Synchronous Motor 0.75KW

,

three phase permanent magnet motor 380V
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description

1500-3000rpm Speed Permanent Magnet Synchronous Motor 88.6%-95.3% Efficiency 380V

Product Description:

The product is a permanent magnet motor specially designed for fans,the efficiency index reaches the first-class standard of GB30253-2013 "Energy Efficiency Limits and Energy Efficiency Grades of Permanent Magnet Synchronous Motors",reach the international advanced level of similar products.

Principle:The three-phase symmetrical current passing through the three-phase winding of the stator will generate a stator rotating magnetic field. The rotating magnetic field of the stator generates current in the cage winding for the rotation of the rotor to generate the rotating magnetic field of the rotor. The asynchronous torque generated by the interaction between the stator rotating magnetic field and the rotor rotating magnetic field makes the rotor turn from stationary to rotating. After the start-up is completed, the rotor winding is no longer active, and the magnetic field generated by the permanent magnet and the stator winding interacts to generate driving torque.


Key Features of the Permanent Magnet Synchronous Motor:
  • High efficiency and energy saving, first-class energy efficiency
  • High power factor, improve grid quality factor
  • High power density, convenient for energy-saving retrofit and upgrade
  • The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions
  • Integrated design of driver and motor, simple wiring and better motor protection
  • Flexible installation options
  • Precise speed control
  • Wide output range
  • Suitable for various applications
  • Class B insulation grade for safety and performance



Technical Parameters:



Product Name Permanent Magnet Synchronous Motor
Technical Parameters Speed 1500-3000rpm
Frequency 100-200Hz
Efficiency 88.6%-95.3%
Installation Mode B3/B35
Working System S1
Output 0.75-15Kw
Voltage 380V
Insulation Grade B




Conclusion

The Xicheng Permanent Magnet Synchronous Motor is a high-performance motor that offers superior reliability, competitive pricing, and a wide range of applications. As a trusted brand in the motor industry, Xicheng continues to provide top-quality products that meet the needs and demands of its customers.



Support and Services:

Technical Support and Service of Permanent Magnet Synchronous Motor
Introduction

Permanent Magnet Synchronous Motor (PMSM) is a type of AC motor that uses permanent magnets embedded in the rotor to create a magnetic field. It is widely used in various industrial and commercial applications due to its high efficiency, compact size, and precise speed control.

Technical Support

Our company is committed to providing comprehensive technical support for our PMSM products. Our team of experienced engineers and technicians are dedicated to assisting our customers with any technical issues or inquiries.

Pre-Sales Support

We understand that choosing the right motor for your specific application can be a daunting task. That's why our technical support team is available to provide expert advice and assistance during the pre-sales process. We can help you determine the best motor size, configuration, and control options for your needs.

Troubleshooting and Maintenance

In the rare event of any technical issues with our PMSM products, our technical support team is available to provide troubleshooting assistance. We can also offer maintenance recommendations and schedules to ensure the long-term performance and reliability of our products.

Service

At our company, we value our customers and strive to provide the best service possible. We offer a range of services to support our PMSM products and ensure customer satisfaction.

Product Training

To ensure our customers are equipped with the knowledge and skills to operate our PMSM products effectively, we offer product training programs. These programs cover topics such as product features, installation, operation, and maintenance.

Warranty

We stand behind the quality and performance of our PMSM products and offer a comprehensive warranty for all our products. In the unlikely event of any product defects or failures, we will provide prompt support and resolution to ensure minimal downtime for our customers.

After-Sales Support

Our commitment to our customers does not end after the sale. We provide ongoing support to our customers, including technical assistance, troubleshooting, and spare parts availability.



High Power Permanent Magnet Synchronous Motor Three Phase 0.75KW 380V 0High Power Permanent Magnet Synchronous Motor Three Phase 0.75KW 380V 1High Power Permanent Magnet Synchronous Motor Three Phase 0.75KW 380V 2



.
