1500 - 3000rpm Permanent Magnetic Driven Motor B3/B35 Installation Mode

  • 1500 - 3000rpm Permanent Magnetic Driven Motor B3/B35 Installation Mode
  • 1500 - 3000rpm Permanent Magnetic Driven Motor B3/B35 Installation Mode
  • 1500 - 3000rpm Permanent Magnetic Driven Motor B3/B35 Installation Mode
Place of Origin China
Brand Name Xicheng
Model Number TYB112-8-4-2500
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Efficiency 88.6%-95.3% Frequency 100-200Hz
Voltage 380V Speed 1500-3000rpm
Product Name Magnet Driven Motor Working System S1
Installation Mode B3/B35 Output 0.75-15Kw
Highlight

1500rpm magnetic driven motor

,

3000rpm magnetic driven motor

,

permanent magnet electric motor
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description

B3/B35 Installation Mode Magnet Driven Motor with 1500-3000rpm Speed B Insulation Grade



Product Description:

Introducing the Permanent Magnet Drive Integrated Motor -- Magnet Driven Motor to provide an efficient and reliable solution for your needs. It is a permanent magnet motor, which is capable of delivering an efficiency rating of 88.6%-95.3%, depending on the power rating and type. It is designed to be highly efficient and reliable across a wide voltage range of 380V. With insulation grade B, the Magnet Driven Motor is able to offer a wide output range from 0.75-15Kw, meeting the demands of various applications. Moreover, the motor is designed for easy installation in B3/B35 mode.

Features:



  1. High efficiency and energy saving, first-class energy efficiency
  2. High power factor, improve grid quality factor
  3. High power density, convenient for energy-saving retrofit and upgrade
  4. The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions
  5. Integrated design of driver and motor, simple wiring and better motor protection





Technical Parameters:

Parameter Value
Output 0.75-15Kw
Voltage 380V
Installation Mode B3/B35
Insulation Grade B
Product Name Magnet Driven Motor
Working System S1
Efficiency 88.6%-95.3%
Frequency 100-200Hz
Speed 1500-3000rpm


Applications:

Xicheng Magnet Driven Motor:Energy-saving Permanent Magnet Motor

Xicheng Magnet Driven Motor (Model Number: TYB112-8-4-2500) is a permanent magnet drive integrated motor with the brand name of Xicheng. It has high efficiency of 88.6%-95.3%, insulation grade of B and frequency of 100-200Hz. It is available in B3/B35 installation modes. This energy-saving permanent magnet motor has a minimum order quantity of 1PC and price ranging from $120 to 580 per PC with 7-15 work days for delivery. Payment terms include L/C and T/T. We have a supply ability of 500PCS in 15-20 work days.

Xicheng Magnet Driven Motor is your ideal solution for energy-saving and performance.



Support and Services:

Magnet Driven Motor Technical Support and Services

At , we understand the importance of providing reliable support and service for our Magnet Driven Motor products. We are committed to providing comprehensive technical support and services for all Magnet Driven Motor customers.

Our technical support team is available 24/7 to answer any questions or concerns you may have about our Magnet Driven Motor products. We also provide online resources, such as FAQs, manuals, and instructional videos. Our team of skilled technicians is always ready to help you get the most out of your Magnet Driven Motor.

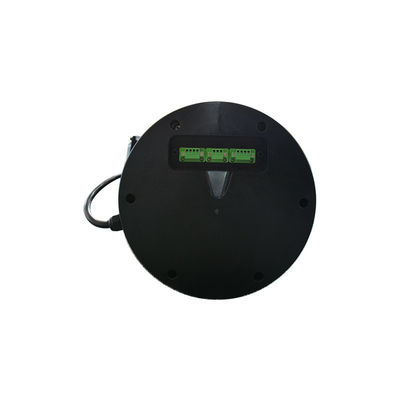

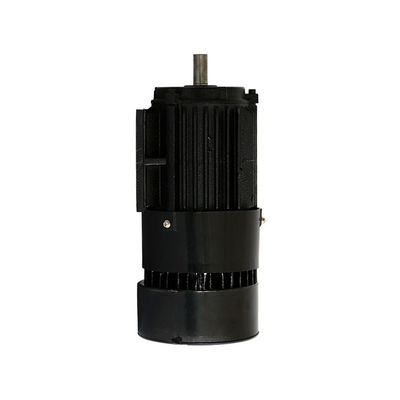

 1500 - 3000rpm Permanent Magnetic Driven Motor B3/B35 Installation Mode 01500 - 3000rpm Permanent Magnetic Driven Motor B3/B35 Installation Mode 11500 - 3000rpm Permanent Magnetic Driven Motor B3/B35 Installation Mode 2

FAQ:

Q1: What is the brand name of the Magnet Driven Motor?
A1: The brand name of the Magnet Driven Motor is Xicheng.

Q2: What is the model number of the Magnet Driven Motor?
A2: The model number of the Magnet Driven Motor is TYB112-8-4-2500.

Q3: Where is the Magnet Driven Motor manufactured?
A3: The Magnet Driven Motor is manufactured in China.

Q4: What is the minimum order quantity for the Magnet Driven Motor?
A4: The minimum order quantity for the Magnet Driven Motor is 1PCS.

Q5: What is the price range for the Magnet Driven Motor?
A5: The price range for the Magnet Driven Motor is $120-580/PCS.
