Grade B Magnetic Driven Motor Efficiency 88.6% - 95.3% 100 - 200Hz High Speed Pmsm

  • Grade B Magnetic Driven Motor Efficiency 88.6% - 95.3% 100 - 200Hz High Speed Pmsm
  • Grade B Magnetic Driven Motor Efficiency 88.6% - 95.3% 100 - 200Hz High Speed Pmsm
  • Grade B Magnetic Driven Motor Efficiency 88.6% - 95.3% 100 - 200Hz High Speed Pmsm
Place of Origin China
Brand Name Xicheng
Model Number TYB80-8-1.1-3000
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Magnet Driven Motor Efficiency 88.6%-95.3%
Working System S1 Insulation Grade B
Frequency 100-200Hz Voltage 380V
Output 0.75-15Kw Speed 1500-3000rpm
Highlight

Grade B magnetic driven motor

,

magnetic driven motor 100Hz

,

200Hz high speed pmsm
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description

Insulation Grade B Magnet Driven Motor Efficiency 88.6%-95.3% Frequency 100-200Hz

Product Description:

Magnet Driven Motor is a kind of permanent magnet drive integrated motor, which is also known as permanent magnet synchronous variable frequency motor. It is powered by 380V voltage, with insulation grade B and installation mode B3/B35. The speed of this motor ranges from 1500rpm to 3000rpm, providing excellent performance. It is highly reliable and efficient, and has been widely used in various applications. This Magnet Driven Motor has a permanent magnet synchronous variable frequency motor, which is able to control the speed of the motor accurately and efficiently. It also has a high power factor and low noise, making it a great choice for various applications.



Features:



  • High efficiency and energy saving, first-class energy efficiency
  • High power factor, improve grid quality factor
  • High power density, convenient for energy-saving retrofit and upgrade
  • The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions
  • Integrated design of driver and motor, simple wiring and better motor protection

Technical Parameters:

Parameter Value
Product Name Permanent Magnet Drive Integrated Motor/Magnet Driven Motor/Permanent Magnet Synchronous Variable Frequency Motor
Frequency 100-200Hz
Output 0.75-15Kw
Voltage 380V
Speed 1500-3000rpm
Insulation Grade B
Working System S1
Efficiency 88.6%-95.3%
Installation Mode B3/B35


Applications:

Xicheng's TYB80-8-1.1-3000 Permanent Magnet Motor is a great choice for anyone looking for a reliable, energy-saving motor solution. With its high efficiency of 88.6%-95.3%, you can be sure that your motor will use as little energy as possible. This Permanent Magnet Motor can reach speeds of 1500-3000rpm, and it has a frequency range of 100-200Hz. The insulation grade of this motor is B, and it has a working system of S1. Furthermore, it is available in minimum order quantities of 1PCS, and it has a price range of $120-580/PCS. Delivery is quick and reliable, with 7-15 work days, and there is a supply ability of 500PCS in 15-20work days. Payment terms are flexible, and you can choose between L/C and T/T.



Support and Services:

Magnet Driven Motor Technical Support and Services:

  • Assistance in product selection.
  • Help in identifying the right solution for specific applications.
  • Technical support for setup, installation, and troubleshooting.
  • Timely access to replacement parts.
  • Regular product updates.
  • Remote support.

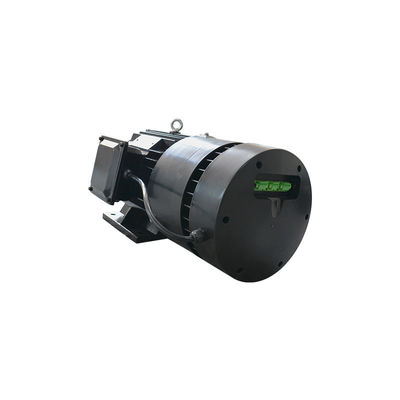

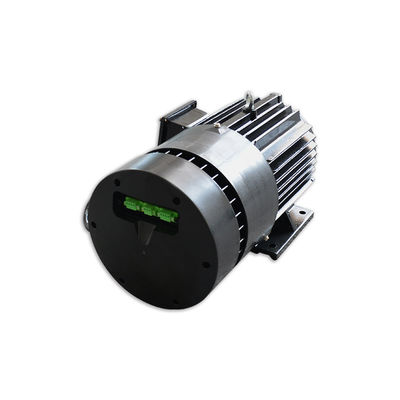

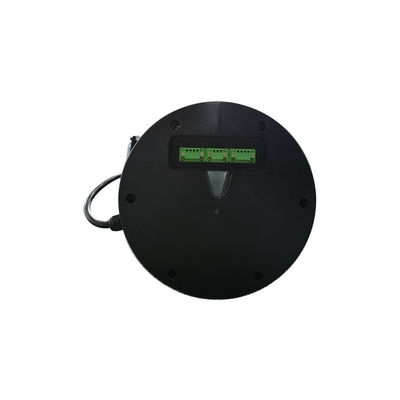

Grade B Magnetic Driven Motor Efficiency 88.6% - 95.3% 100 - 200Hz High Speed Pmsm 0Grade B Magnetic Driven Motor Efficiency 88.6% - 95.3% 100 - 200Hz High Speed Pmsm 1Grade B Magnetic Driven Motor Efficiency 88.6% - 95.3% 100 - 200Hz High Speed Pmsm 2

FAQ:

Q: What is the brand name of the Magnet Driven Motor?
A: The brand name of the Magnet Driven Motor is Xicheng.
Q: What is the Model Number of the Magnet Driven Motor?
A: The Model Number of the Magnet Driven Motor is TYB80-8-1.1-3000.
Q: Where is the Magnet Driven Motor manufactured?
A: The Magnet Driven Motor is manufactured in China.
Q: What is the minimum order quantity for the Magnet Driven Motor?
A: The minimum order quantity for the Magnet Driven Motor is 1PCS.
Q: How much does the Magnet Driven Motor cost?
A: The Magnet Driven Motor costs $120-580/PCS.
