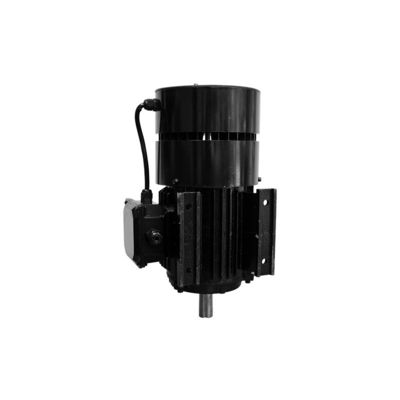

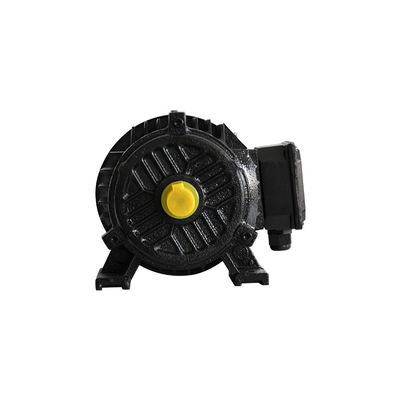

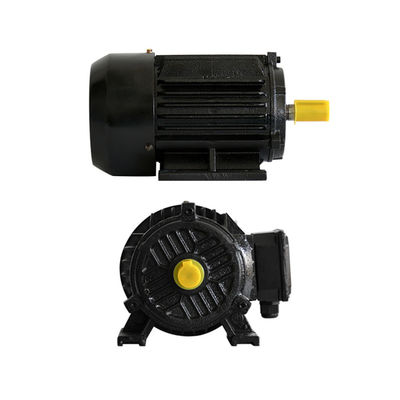

200Hz 380V Magnet Driven Motor Pmsm Motor Installation Mode B3

  • 200Hz 380V Magnet Driven Motor Pmsm Motor Installation Mode B3
  • 200Hz 380V Magnet Driven Motor Pmsm Motor Installation Mode B3
  • 200Hz 380V Magnet Driven Motor Pmsm Motor Installation Mode B3
Place of Origin China
Brand Name Xicheng
Model Number TYB80-8-1.1-3000
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Magnet Driven Motor Working System S1
Speed 1500-3000rpm Efficiency 88.6%-95.3%
Installation Mode B3/B35 Frequency 100-200Hz
Voltage 380V Output 0.75-15Kw
Highlight

200Hz Magnet Driven Motor

,

380V Magnet Driven Motor

,

pmsm motor IMB3
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description

Economical 380V Magnetic-Driven Motor for Cost-Effective Solution

Product Description:

The Magnet Driven Motor, also known as Permanent Magnet Synchronous Variable Frequency Motor, Permanent Magnet Drive Integrated Motor, is an efficient motor with outstanding performance. It has an installation mode of B3/B35, an efficiency of 88.6%-95.3%, a speed of 1500-3000rpm, and an insulation grade of B. With its outstanding features, this motor is suitable for a wide range of applications. It is reliable, energy-saving, and easy to operate. It is also equipped with advanced technology and components, providing high efficiency and torque. The Magnet Driven Motor is a great choice for any industrial or commercial purpose.



Features:



  • High efficiency and energy saving, first-class energy efficiency
  • High power factor, improve grid quality factor
  • High power density, convenient for energy-saving retrofit and upgrade
  • The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions
  • Integrated design of driver and motor, simple wiring and better motor protection





Technical Parameters:

Product Name Magnet Driven Motor
Output 0.75-15Kw
Speed 1500-3000rpm
Installation Mode B3/B35
Efficiency 88.6%-95.3%
Insulation Grade B
Working System S1
Voltage 380V
Frequency 100-200Hz


Applications:

Xicheng’s Magnet Driven Motor, model TYB80-8-1.1-3000, is a Permanent Magnet Drive Integrated Motor and Permanent Magnet Synchronous Variable Frequency Motor made in China with a minimum order quantity of 1PCS and a price range of $120-580/PCS. It has a delivery time of 7-15 work days and payment terms of L/C,T/T. Its supply ability is 500PCS 15-20work days. This Magnet Driven Motor has a high efficiency of 88.6%-95.3% and a voltage of 380V. It is also rated with an insulation grade of B and an installation mode of B3/B35.



Support and Services:

Magnet Driven Motor offers technical support and services to its customers. Our knowledgeable staff is always available to answer any questions or concerns you may have. We provide a variety of support services, such as troubleshooting, repair, and installation assistance. We also offer training and education services to help you understand how to best use your Magnet Driven Motor product.

Our technical support staff is available 24 hours a day, 7 days a week to provide help with any issue you may have. We can provide remote assistance through email, phone, or live chat.

 If you have any questions about our warranty services, please contact us.

200Hz 380V Magnet Driven Motor Pmsm Motor Installation Mode B3 0200Hz 380V Magnet Driven Motor Pmsm Motor Installation Mode B3 1200Hz 380V Magnet Driven Motor Pmsm Motor Installation Mode B3 2

FAQ:

Q&A about Magnet Driven Motor

Q1: What is the brand name of the Magnet Driven Motor?

A1: The brand name of the Magnet Driven Motor is Xicheng.

Q2: What is the model number of the Magnet Driven Motor?

A2: The model number of the Magnet Driven Motor is TYB80-8-1.1-3000.

Q3: Where is the Magnet Driven Motor produced?

A3: The Magnet Driven Motor is produced in China.

Q4: How many Magnet Driven Motors is the minimum order quantity?

A4: The minimum order quantity of Magnet Driven Motors is 1PCS.

Q5: What is the price range of the Magnet Driven Motor?

A5: The price range of the Magnet Driven Motor is $120-580/PCS.
