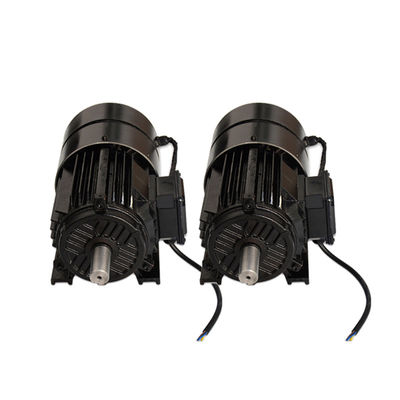

95.3% Permanent Magnet AC Motor Permanent Magnet Synchronous Machines 100 - 200Hz

  • 95.3% Permanent Magnet AC Motor Permanent Magnet Synchronous Machines 100 - 200Hz
  • 95.3% Permanent Magnet AC Motor Permanent Magnet Synchronous Machines 100 - 200Hz
  • 95.3% Permanent Magnet AC Motor Permanent Magnet Synchronous Machines 100 - 200Hz
Place of Origin China
Brand Name Xicheng
Model Number TYB80-8-1.1-3000
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Installation Mode B3/B35 Efficiency 88.6%-95.3%
Product Name Permanent Magnet AC Motor Output 0.75-15Kw
Speed 1500-3000rpm Frequency 100-200Hz
Voltage 380V Working System S1
Highlight

95.3% Permanent Magnet AC Motor

,

Permanent Magnet AC Motor 100Hz

,

permanent magnet synchronous machines 200Hz
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description

Highly Efficient Permanent Magnet AC Motor 88.6%-95.3% Operating at 100-200Hz

Product Description:

Permanent Magnet AC Electric Motor: High Efficiency & Durable Operation

Our Permanent Magnet AC Electric Motor provides efficiency up to 95.3%, making it an ideal choice for a variety of applications. It has a frequency range of 100-200Hz and speed range of 1500-3000rpm, and is optimized for S1 working system. It's a reliable Permanent Magnet AC Motor and Permanent Magnet Motor that is built to last.

The product is a permanent magnet motor specially designed for fans,the efficiency index reaches the first-class standard of GB30253-2013 "Energy Efficiency Limits and Energy Efficiency Grades of Permanent Magnet Synchronous Motors",reach the international advanced level of similar products.



Features:



  • High efficiency and energy saving, first-class energy efficiency
  • High power factor, improve grid quality factor
  • High power density, convenient for energy-saving retrofit and upgrade
  • The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions
  • Integrated design of driver and motor, simple wiring and better motor protection





Technical Parameters:

Parameter Value
Installation Mode B3/B35
Insulation Grade B
Product Name Permanent Magnet AC Motor
Efficiency 88.6%-95.3%
Voltage 380V
Output 0.75-15Kw
Working System S1
Speed 1500-3000rpm
Frequency 100-200Hz


Applications:

Xicheng’s TYB80-8-1.1-3000 Permanent Magnet Alternating Current Motor is made in China and is available to purchase in minimum quantities of 1 PCS. This Permanent Magnet Alternating Motor has an output of 0.75-15Kw, a speed of 1500-3000rpm, and a voltage of 380V. It offers an impressive efficiency of 88.6%-95.3% and works in S1 system. It has a price range of $120-580/PCS and a delivery time of 7-15 work days with a supply ability of 500PCS within 15-20 work days. Payment terms are L/C,T/T.



Support and Services:

Permanent Magnet AC Motor Technical Support and Service

We provide technical support and services for Permanent Magnet AC Motor products. Our highly-trained and experienced technical team can provide full support for any questions or issues you may encounter during installation, commissioning, or operation of your Permanent Magnet AC Motor.

Our technical support team is available 24/7 to answer any questions or provide assistance with any issue. We are committed to ensuring your Permanent Magnet AC Motor is running as efficiently and effectively as possible.

95.3% Permanent Magnet AC Motor Permanent Magnet Synchronous Machines 100 - 200Hz 095.3% Permanent Magnet AC Motor Permanent Magnet Synchronous Machines 100 - 200Hz 195.3% Permanent Magnet AC Motor Permanent Magnet Synchronous Machines 100 - 200Hz 2

FAQ:

  • Q: What is the brand name of the Permanent Magnet AC Motor?
    A: The brand name of the Permanent Magnet AC Motor is Xicheng.
  • Q: What is the model number of the Permanent Magnet AC Motor?
    A: The model number of the Permanent Magnet AC Motor is TYB80-8-1.1-3000.
  • Q: Where is the Permanent Magnet AC Motor made?
    A: The Permanent Magnet AC Motor is made in China.
  • Q: What is the minimum order quantity for the Permanent Magnet AC Motor?
    A: The minimum order quantity for the Permanent Magnet AC Motor is 1PCS.
  • Q: How much does the Permanent Magnet AC Motor cost?
    A: The Permanent Magnet AC Motor costs between $120-580/PCS.
  • Q: How long does it take to deliver the Permanent Magnet AC Motor?
    A: It takes 7-15 work days to deliver the Permanent Magnet AC Motor.
  • Q: What payment terms are available for the Permanent Magnet AC Motor?
    A: The payment terms available for the Permanent Magnet AC Motor are L/C,T/T.
  • Q: How many Permanent Magnet AC Motors can be supplied?
    A: Up to 500PCS can be supplied within 15-20 work days.
