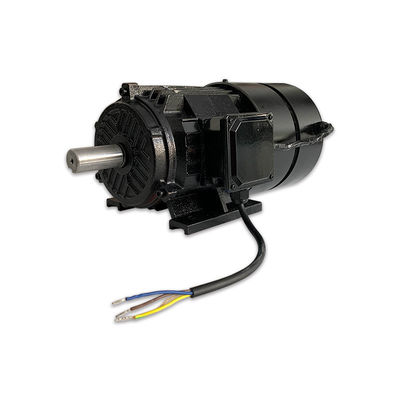

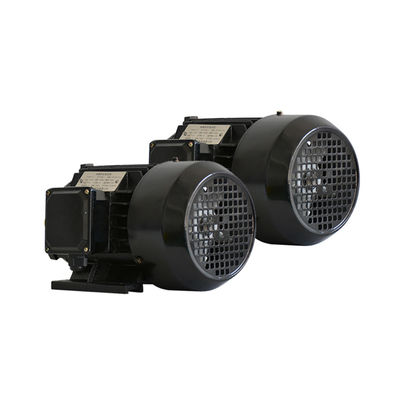

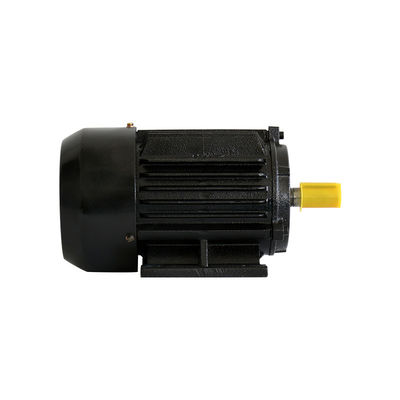

88.6% - 95.3% High Efficiency Ac Motor 15Kw Ac Synchronous Permanent Magnet Electric Motor

  • 88.6% - 95.3% High Efficiency Ac Motor 15Kw Ac Synchronous Permanent Magnet Electric Motor
  • 88.6% - 95.3% High Efficiency Ac Motor 15Kw Ac Synchronous Permanent Magnet Electric Motor
  • 88.6% - 95.3% High Efficiency Ac Motor 15Kw Ac Synchronous Permanent Magnet Electric Motor
Place of Origin China
Brand Name Xicheng
Model Number TYB80-8-0.75-3000
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Insulation Grade B Working System S1
Output 0.75-15Kw Efficiency 88.6%-95.3%
Voltage 380V Installation Mode B3/B35
Speed 1500-3000rpm Product Name Permanent Magnet AC Motor
Highlight

88.6% high efficiency ac motor

,

95.3% high efficiency ac motor

,

15Kw ac synchronous permanent magnet electric motor
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description

88.6%-95.3% Efficiency Permanent Magnet AC Motor with B Insulation Grade

Product Description:

The product is a permanent magnet motor specially designed for fans,the efficiency index reaches the first-class standard of GB30253-2013 "Energy Efficiency Limits and Energy Efficiency Grades of Permanent Magnet Synchronous Motors",reach the international advanced level of similar products. It delivers a reliable, high performance in a variety of environments such as industrial, commercial and residential applications. The motor features a B-grade insulation, superior efficiency ranging from 88.6% to 95.3%, and a speed range from 1500-3000rpm. It also offers an output power of 0.75-15KW. This Permanent Magnet Alternating Motor, also known as Permanent Magnet Alternating Current Motor is designed to give users long service life, minimal maintenance and excellent reliability.

Features:



  • High efficiency and energy saving, first-class energy efficiency
  • High power factor, improve grid quality factor
  • High power density, convenient for energy-saving retrofit and upgrade
  • The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions
  • Integrated design of driver and motor, simple wiring and better motor protection





Technical Parameters:



Parameter Value
Product Name Permanent Magnet AC Motor
Efficiency 88.6%-95.3%
Output 0.75-15Kw
Working System S1
Insulation Grade B
Voltage 380V
Frequency 100-200Hz
Speed 1500-3000rpm
Installation Mode B3/B35



Applications:



Permanent Magnet Alternating Motor (PMAM), also known as Permanent Magnet Alternating Current Motor (PMACM), is a type of motor with a brand name Xicheng, model number TYB80-8-0.75-3000. It is manufactured in China and has a minimum order quantity of 1PCS with a price range of $120-580/PCS. It has a delivery time of 7-15 work days and payment terms of L/C,T/T. The motor has a supply ability of 500PCS in 15-20 work days with a speed of 1500-3000rpm. It has an installation mode of B3/B35 and an efficiency of 88.6%-95.3%.



Support and Services:



Permanent Magnet AC Motor Technical Support and Service

At Permanent Magnet AC Motor, we provide comprehensive technical support and service for our products. Our team of qualified engineers is available to provide help and advice on design, installation, operation, and maintenance of our products.

We also provide training services to ensure that your staff is knowledgeable and up-to-date with the latest technologies. Our training sessions can be customized to your specific requirements.

Our technical support team is always ready to answer your questions and provide solutions. We are available 24/7 and can be reached by phone, email, or online chat. We also have a comprehensive website with detailed product information and instructional videos.

If you have any queries or require assistance, please do not hesitate to contact us. Our team of experts is available to answer your questions and provide the best solutions.



88.6% - 95.3% High Efficiency Ac Motor 15Kw Ac Synchronous Permanent Magnet Electric Motor 088.6% - 95.3% High Efficiency Ac Motor 15Kw Ac Synchronous Permanent Magnet Electric Motor 188.6% - 95.3% High Efficiency Ac Motor 15Kw Ac Synchronous Permanent Magnet Electric Motor 2



FAQ:

Q1: What is the Brand Name of this Permanent Magnet AC Motor?
A1: The Brand Name of this Permanent Magnet AC Motor is Xicheng.
Q2: What is the Model Number of this Permanent Magnet AC Motor?
A2: The Model Number of this Permanent Magnet AC Motor is TYB80-8-0.75-3000.
Q3: Where is this Permanent Magnet AC Motor produced?
A3: This Permanent Magnet AC Motor is produced in China.
Q4: What is the Minimum Order Quantity for this Permanent Magnet AC Motor?
A4: The Minimum Order Quantity for this Permanent Magnet AC Motor is 1PCS.
Q5: What is the Price range of this Permanent Magnet AC Motor?
A5: The Price range of this Permanent Magnet AC Motor is $120-580/PCS.
