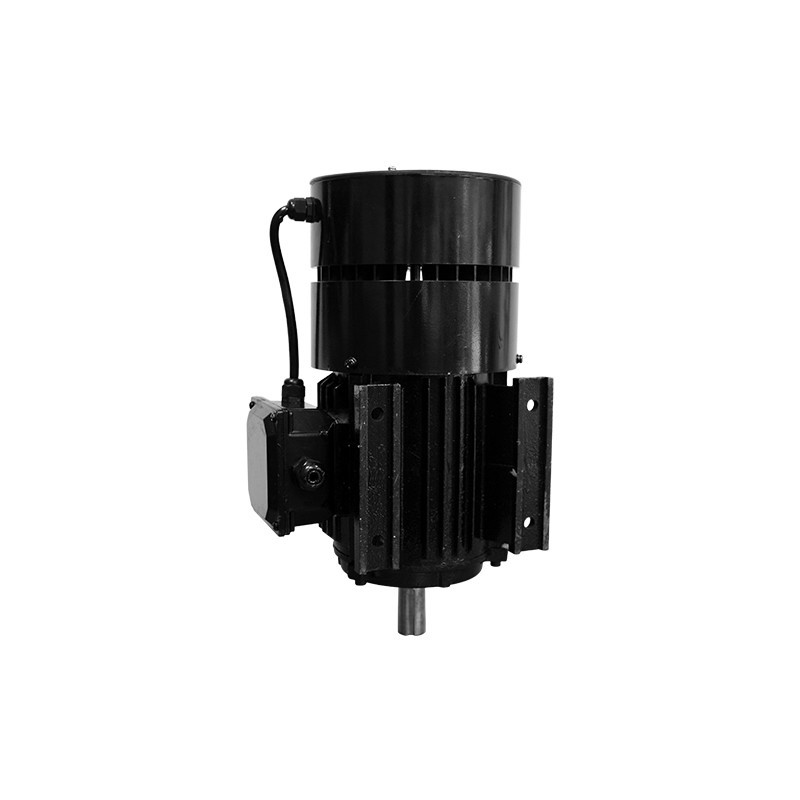

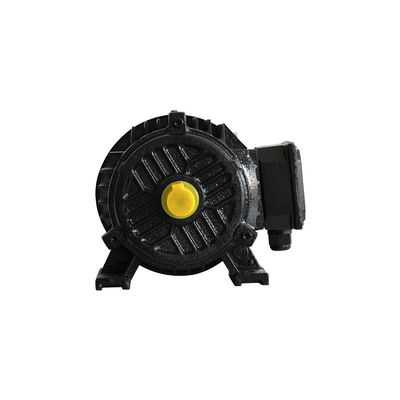

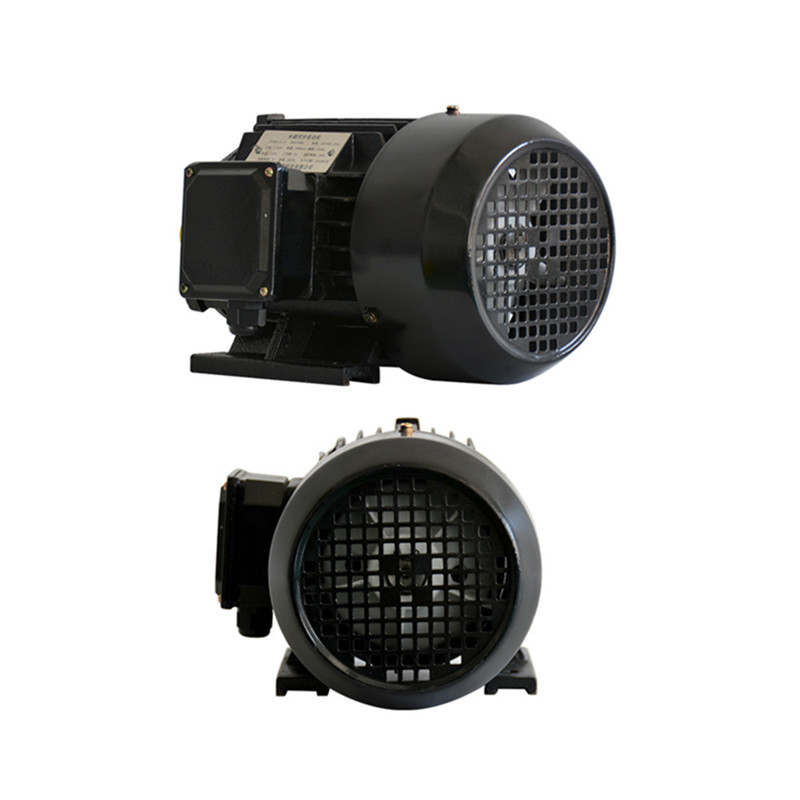

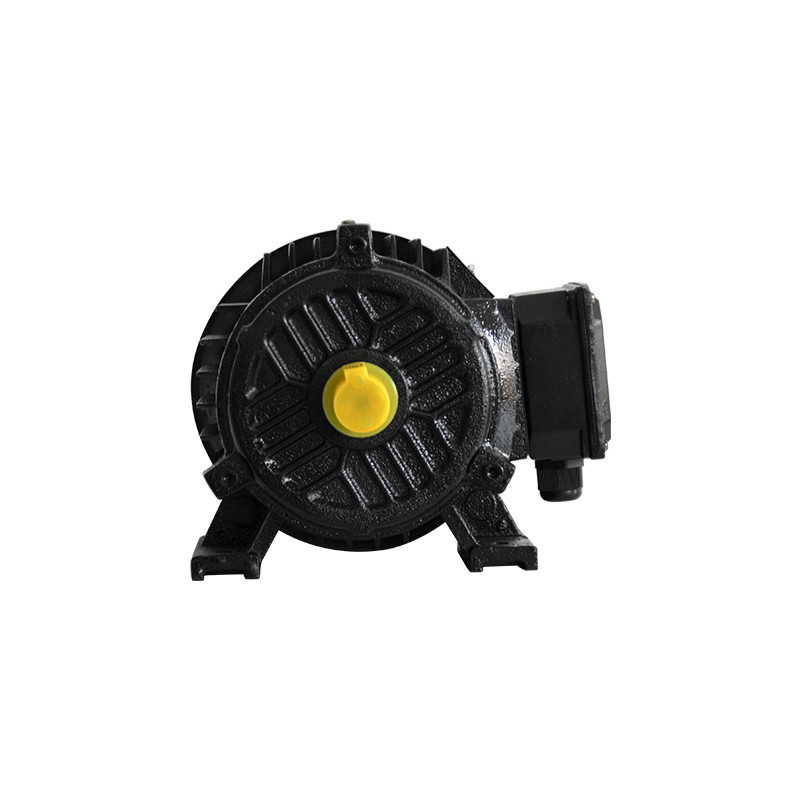

PMAM Permanent Magnet AC Motor 1500 - 3000rpm Ac Synchronous Electric Motor

  • PMAM Permanent Magnet AC Motor 1500 - 3000rpm Ac Synchronous Electric Motor
  • PMAM Permanent Magnet AC Motor 1500 - 3000rpm Ac Synchronous Electric Motor
  • PMAM Permanent Magnet AC Motor 1500 - 3000rpm Ac Synchronous Electric Motor
Place of Origin China
Brand Name Xicheng
Model Number TYB80-8-0.75-3000
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency 100-200Hz Product Name Permanent Magnet AC Motor
Working System S1 Efficiency 88.6%-95.3%
Insulation Grade B Speed 1500-3000rpm
Voltage 380V Output 0.75-15Kw
Highlight

PMAM Permanent Magnet AC Motor

,

Permanent Magnet AC Motor 1500rpm

,

3000rpm ac synchronous electric motor
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description

380V Permanent Magnet Motor with Efficiency of 88.6%-95.3% Powerful and Reliable

Product Description:

Permanent Magnet Alternating Motor (PMAM) is a type of Permanent Magnet Motor (PMM) with alternating current (AC) as the power source. It has a wide range of applications in industrial and commercial fields. Our Permanent Magnet AC Electric Motor is designed with installation mode B3/B35, output of 0.75-15Kw, efficiency of 88.6%-95.3%, working system S1 and frequency of 100-200Hz. It is reliable and provides high performance, making it a great option for various applications.

The product is a permanent magnet motor specially designed for fans,the efficiency index reaches the first-class standard of GB30253-2013 "Energy Efficiency Limits and Energy Efficiency Grades of Permanent Magnet Synchronous Motors",reach the international advanced level of similar products.

At our company, we strive to provide quality products and services to our customers. Our Permanent Magnet Alternating Motor is designed to meet the highest standards of performance and reliability. We also offer a comprehensive range of after-sales services to ensure customer satisfaction.



Features:



  • High efficiency and energy saving, first-class energy efficiency
  • High power factor, improve grid quality factor
  • High power density, convenient for energy-saving retrofit and upgrade
  • The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions
  • Integrated design of driver and motor, simple wiring and better motor protection





Technical Parameters:

Property Details
Product Name Permanent Magnet AC Motor
Output 0.75-15Kw
Working System S1
Insulation Grade B
Installation Mode B3/B35
Voltage 380V
Efficiency 88.6%-95.3%
Speed 1500-3000rpm
Frequency 100-200Hz


Applications:

Xicheng's TYB80-8-0.75-3000 Permanent Magnet AC Motor is an industry-leading Permanent Magnet Alternating Motor designed to operate at frequencies from 100-200 Hz. The motor provides excellent efficiency ranging from 88.6%-95.3% and offers speeds of 1500-3000rpm. It also has an insulation grade of B and an installation mode of B3/B35.

This Permanent Magnet AC Motor is available with a minimum order quantity of 1PCS and a price range of $120-580/PCS. Delivery time is 7-15 work days and payment terms include L/C, T/T. Xicheng is able to provide a supply capacity of 500PCS in 15-20 work days.



Support and Services:

Our service team is well-trained and experienced in providing professional technical support and service for Permanent Magnet AC Motor. We are committed to providing the best service to our customers at all times.

PMAM Permanent Magnet AC Motor 1500 - 3000rpm Ac Synchronous Electric Motor 0PMAM Permanent Magnet AC Motor 1500 - 3000rpm Ac Synchronous Electric Motor 1PMAM Permanent Magnet AC Motor 1500 - 3000rpm Ac Synchronous Electric Motor 2

FAQ:

Q: What is the brand name of this Permanent Magnet AC Motor?
A: The brand name of this Permanent Magnet AC Motor is Xicheng.
Q: What is the model number of this Permanent Magnet AC Motor?
A: The model number of this Permanent Magnet AC Motor is TYB80-8-0.75-3000.
Q: Where is this Permanent Magnet AC Motor made?
A: This Permanent Magnet AC Motor is made in China.
Q: What is the minimum order quantity for this Permanent Magnet AC Motor?
A: The minimum order quantity for this Permanent Magnet AC Motor is 1PCS.
Q: What is the price range for this Permanent Magnet AC Motor?
A: The price range for this Permanent Magnet AC Motor is $120-580/PCS.
