Rare Earth Ac Pm Motor S1 3000rpm High Efficiency 3 Phase Pmsm Motor For Fan And Pump

  • Rare Earth Ac Pm Motor S1 3000rpm High Efficiency 3 Phase Pmsm Motor For Fan And Pump
  • Rare Earth Ac Pm Motor S1 3000rpm High Efficiency 3 Phase Pmsm Motor For Fan And Pump
  • Rare Earth Ac Pm Motor S1 3000rpm High Efficiency 3 Phase Pmsm Motor For Fan And Pump
Place of Origin China
Brand Name Xicheng
Model Number TYB132-8-11-3000
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15work days
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Rare earth ac pm motor

,

ac pm motor 3000rpm

,

3 phase pmsm motor For fan
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description

Features of drive integrated permanent magnet motor:

High efficiency and energy saving, first-class energy efficiency,

High power factor, improve grid quality factor,,

High power density, convenient for energy-saving retrofit and upgrade,

The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions,

Integrated design of driver and motor, simple wiring and better motor protection.

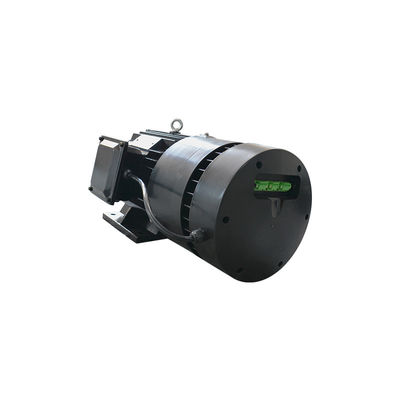

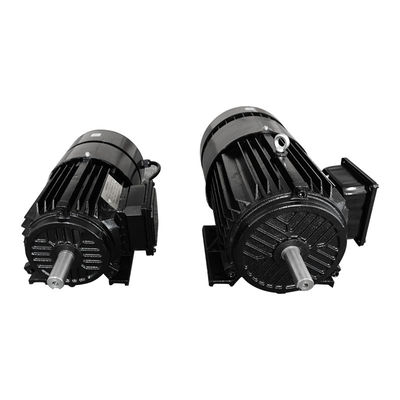

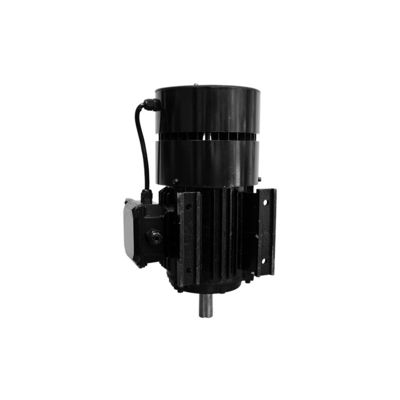

Rare Earth Ac Pm Motor S1 3000rpm High Efficiency 3 Phase Pmsm Motor For Fan And Pump 0Rare Earth Ac Pm Motor S1 3000rpm High Efficiency 3 Phase Pmsm Motor For Fan And Pump 1
