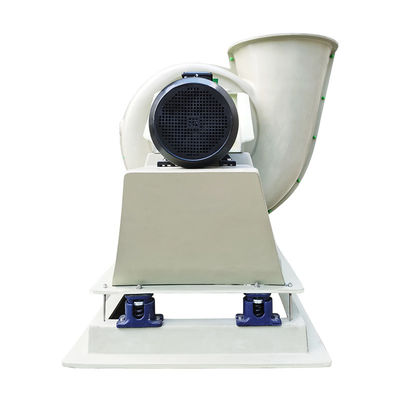

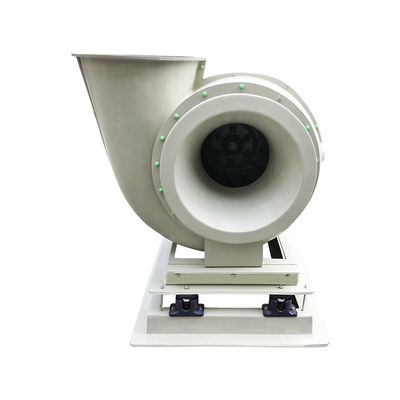

Air Outlet 410 - 1140mm Centrifugal Exhaust Fan Air Inlet 450 - 1200mm
| Place of Origin | China |
|---|---|
| Brand Name | Xicheng |
| Model Number | XC070-4 |
| Minimum Order Quantity | 1PCS |
| Price | $860-2390/PCS |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 300PCS 20-30work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Wind Presssure | 1200~2200Pa | Speed | 1000~2300r/min |
|---|---|---|---|
| Air Volume | 7800~90000m³/H | Bracket | FRP |
| Air Inlet | 450~1200mm | Air Outlet | 410~1140mm |
| Power | 5.5~75Kw | Motor | Permanent Magnet Motor |
| Highlight | 410mm Centrifugal Exhaust Fan,1140mm Centrifugal Exhaust Fan,chemical resistant exhaust fans 75Kw |
||
You can tick the products you need and communicate with us in the message board.
| Type | XC030-1 | XC030-2 | XC040-1 | XC040-2 | XC040-3 | XC040-4 | XC050-1 | XC050-2 | XC050-3 | XC050-4 | XC060-1 | XC060-2 | XC060-3 | XC060-4 | XC070-2 | XC070-3 | XC070-4 | XC080-1 | XC080-2 | XC080-3 | XC080-4 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Air inlet | 450 | 450 | 600 | 600 | 600 | 600 | 750 | 750 | 750 | 750 | 900 | 900 | 900 | 900 | 1050 | 1050 | 1050 | 1200 | 1200 | 1200 | 1200 | |
| Air outlet | 410 | 410 | 550 | 550 | 550 | 550 | 680 | 680 | 680 | 680 | 820 | 820 | 820 | 820 | 940 | 940 | 940 | 1140 | 1140 | 1140 | 1140 | |
| Power （Kw) | 5.5 | 7.5 | 5.5 | 7.5 | 11 | 15 | 11 | 15 | 18.5 | 22 | 18.5 | 22 | 30 | 37 | 30 | 37 | 45 | 37 | 45 | 55 | 75 | |
| Air volume (m³/H） | 7800 | 9000 | 12000 | 13800 | 15600 | 18000 | 20000 | 24000 | 27000 | 30000 | 36000 | 42000 | 48000 | 54000 | 57000 | 60000 | 66000 | 72000 | 78000 | 84000 | 90000 | |
| Wind presssure（Pa） | 1800 | 2000 | 1400 | 1600 | 1800 | 2000 | 1200 | 1400 | 1600 | 1800 | 1400 | 1600 | 1800 | 2000 | 1600 | 1800 | 2000 | 1600 | 1800 | 2000 | 2200 | |
| Speed （r/min） | 2150 | 2300 | 1620 | 1710 | 1825 | 2050 | 1297 | 1460 | 1550 | 1735 | 1175 | 1235 | 1470 | 1550 | 1050 | 1200 | 1350 | 1000 | 1100 | 1200 | 1280 |
Product Description
Air Outlet 410-1140mm FRP Permanent Magnet Centrifugal Fan Air Inlet 450-1200mm
Product Description:
Centrifugal Exhaust Fan is a highly efficient, energy-saving and durable fan with a permanent magnet motor, variable frequency drive and FRP bracket. It offers air volumes ranging from 7800 to 90000m³/H, and power ranging from 5.5 to 75Kw, with air outlet diameter of 410 to 1140mm. It is a perfect combination of permanent magnet variable frequency motor and integrated motor centrifugal fan. It is designed for high-end applications with excellent performance, low noise, light weight, and long service life.
Features:
- Motor: permanent magnet motor replaces asynchronous motor, efficiency increased by 5%-10%
- Transmission: motor and fan impeller using direct connection mode, relative to the belt, belt pulley transmission mode efficiency increased by 3-5%
- Impeller: with Xi 'an Jiaotong University joint development and design of binary and ternary impeller, the efficiency is 5-10% higher than that of ordinary impeller
- FRP bracket, corrosion resistant, acid and alkali resistant
Technical Parameters:
| Attribute | Detail |
|---|---|
| Air volume | 7800~90000m³/H |
| Power | 5.5~75Kw |
| Motor | Permanent Magnet Variable Frequency Centrifugal Fan |
| Air outlet | 410~1140mm |
| Speed | 1000~2300r/min |
| Bracket | FRP |
| Air inlet | 450~1200mm |
| Wind presssure | 1200~2200Pa |
Applications:
The Xicheng XC070-4 Centrifugal Exhaust Fan is a powerful and versatile fan that is designed to handle a variety of applications. It features a permanent magnet drive integrated motor, making it an ideal choice for those looking for a reliable and efficient fan. It is constructed from quality FRP (Fiber Reinforced Polyethylene) material, making it both durable and lightweight. The fan also features a variable frequency permanent magnet, allowing for precise control over the speed and airflow. The air outlet and inlet sizes range from 410-1140mm and 450-1200mm respectively, allowing for a wide range of flow rates. The fan is capable of delivering a maximum air volume of 90000m³/H, while the power ranges from 5.5-75Kw. With a minimum order quantity of just 1PCS and a reasonable price range of $860-2390/PCS, the Xicheng XC070-4 Centrifugal Exhaust Fan is a great option for those looking for an efficient and reliable solution.
The fan is available with a 7-15 work day delivery time and is able to meet the needs of even the most demanding projects with a supply ability of 300PCS 20-30 work days. It is also available with various payment terms, including L/C and T/T.
Support and Services:
Centrifugal Exhaust Fan Technical Support and Service
We offer technical support and service for our centrifugal exhaust fans. Our technicians are trained and experienced in all types of centrifugal exhaust fan systems and applications. We provide 24/7 technical support for all of our centrifugal exhaust fan products.
If you have any questions or concerns about our centrifugal exhaust fan products, please do not hesitate to contact us. We are here to help and will do everything we can to ensure you are satisfied with your purchase.
FAQ:
Q1. What is Centrifugal Exhaust Fan?
A1. Centrifugal Exhaust Fan is a type of fan that uses centrifugal force to generate a high-pressure airflow. It is typically used in industrial and commercial applications.
Q2. Who manufactures Centrifugal Exhaust Fan?
A2. Centrifugal Exhaust Fan is manufactured by Xicheng, with its model number XC070-4.
Q3. Where is Centrifugal Exhaust Fan from?
A3. Centrifugal Exhaust Fan is from China.
Q4. What is the minimum order quantity for Centrifugal Exhaust Fan?
A4. The minimum order quantity for Centrifugal Exhaust Fan is 1PCS.
Q5. What is the price and delivery time for Centrifugal Exhaust Fan?
A5. The price of Centrifugal Exhaust Fan is $860-2390/PCS, and the delivery time is 7-15 work days. Payment Terms is L/C,T/T, and the Supply Ability is 300PCS 20-30work days.
