High Pressure Centrifugal Exhaust Fan Centrifugal Exhaust Blower With PM Motor

  • High Pressure Centrifugal Exhaust Fan Centrifugal Exhaust Blower With PM Motor
  • High Pressure Centrifugal Exhaust Fan Centrifugal Exhaust Blower With PM Motor
  • High Pressure Centrifugal Exhaust Fan Centrifugal Exhaust Blower With PM Motor
Place of Origin China
Brand Name Xicheng
Model Number XC080-4
Minimum Order Quantity 1PCS
Price $860-2390/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 300PCS 20-30work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Speed 1000~2300r/min Air Outlet 410~1140mm
Wind Presssure 1200~2200Pa Air Volume 7800~90000m³/H
Air Inlet 450~1200mm Bracket FRP
Motor Permanent Magnet Motor Power 5.5~75Kw
Highlight

High Pressure Centrifugal Exhaust Fan OEM

,

Centrifugal Exhaust Fan 2300r/min

,

1000r/min centrifugal exhaust blower
You can tick the products you need and communicate with us in the message board.
Type XC030-1 XC030-2 XC040-1 XC040-2 XC040-3 XC040-4 XC050-1 XC050-2 XC050-3 XC050-4 XC060-1 XC060-2 XC060-3 XC060-4 XC070-2 XC070-3 XC070-4 XC080-1 XC080-2 XC080-3 XC080-4
Air inlet 450 450 600 600 600 600 750 750 750 750 900 900 900 900 1050 1050 1050 1200 1200 1200 1200
Air outlet 410 410 550 550 550 550 680 680 680 680 820 820 820 820 940 940 940 1140 1140 1140 1140
Power （Kw) 5.5 7.5 5.5 7.5 11 15 11 15 18.5 22 18.5 22 30 37 30 37 45 37 45 55 75
Air volume (m³/H） 7800 9000 12000 13800 15600 18000 20000 24000 27000 30000 36000 42000 48000 54000 57000 60000 66000 72000 78000 84000 90000
Wind presssure（Pa） 1800 2000 1400 1600 1800 2000 1200 1400 1600 1800 1400 1600 1800 2000 1600 1800 2000 1600 1800 2000 2200
Speed （r/min） 2150 2300 1620 1710 1825 2050 1297 1460 1550 1735 1175 1235 1470 1550 1050 1200 1350 1000 1100 1200 1280
Leave a Message
Type XC030-1 XC030-2 XC040-1 XC040-2 XC040-3 XC040-4 XC050-1 XC050-2 XC050-3 XC050-4 XC060-1 XC060-2 XC060-3 XC060-4 XC070-2 XC070-3 XC070-4 XC080-1 XC080-2 XC080-3 XC080-4
Product Description

High Pressure Centrifugal Exhaust Fan with Permanent Magnet Motor

Product Description:

Centrifugal Exhaust Fan is a FRP Permanent Magnet Centrifugal Fan with variable frequency technology. It is equipped with a Permanent Magnet Motor and features air inlet from 450 to 1200 mm and air outlet from 410 to 1140 mm, while the speed varies from 1000 to 2300 r/min and power from 5.5 to 75Kw. The high performance motor and advanced variable frequency technology make the fan more efficient and energy saving. It is easy to install and operate, and provides reliable operation with low noise.



Features:



  • Motor: permanent magnet motor replaces asynchronous motor, efficiency increased by 5%-10%
  • Transmission: motor and fan impeller using direct connection mode, relative to the belt, belt pulley transmission mode efficiency increased by 3-5%
  • Impeller: with Xi 'an Jiaotong University joint development and design of binary and ternary impeller, the efficiency is 5-10% higher than that of ordinary impeller
  • FRP bracket, corrosion resistant, acid and alkali resistant





Technical Parameters:

Technical Parameter Value
Motor Permanent Magnet Motor
Speed 1000~2300r/min
Power 5.5~75Kw
Air inlet 450~1200mm
Wind presssure 1200~2200Pa
Air volume 7800~90000m³/H
Bracket FRP
Air outlet 410~1140mm


Applications:

The Xicheng XC080-4 FRP Variable Frequency Permanent Magnet Centrifugal Fan is an ideal choice for ventilation and cooling applications. It is designed with a FRP bracket and air outlet of 410~1140mm, air inlet of 450~1200mm, power of 5.5~75Kw, and air volume of 7800~90000m³/H. This fan can be used in factories, warehouses, and other industrial and commercial environments. It is available in a minimum order quantity of 1PCS with a price of $860-2390/PCS and a delivery time of 7-15 work days. Payment terms include L/C, T/T, and it has a supply ability of 300PCS 20-30work days.



Support and Services:

Technical Support and Service for Centrifugal Exhaust Fan

We provide technical support and service for our Centrifugal Exhaust Fan product. Our team is knowledgeable and experienced in the installation, operation, and maintenance of our exhaust fan.

Our technical support and service team is available 24/7 to answer any questions or concerns you may have. We provide prompt and reliable service so you can be confident that your Centrifugal Exhaust Fan is in good hands.

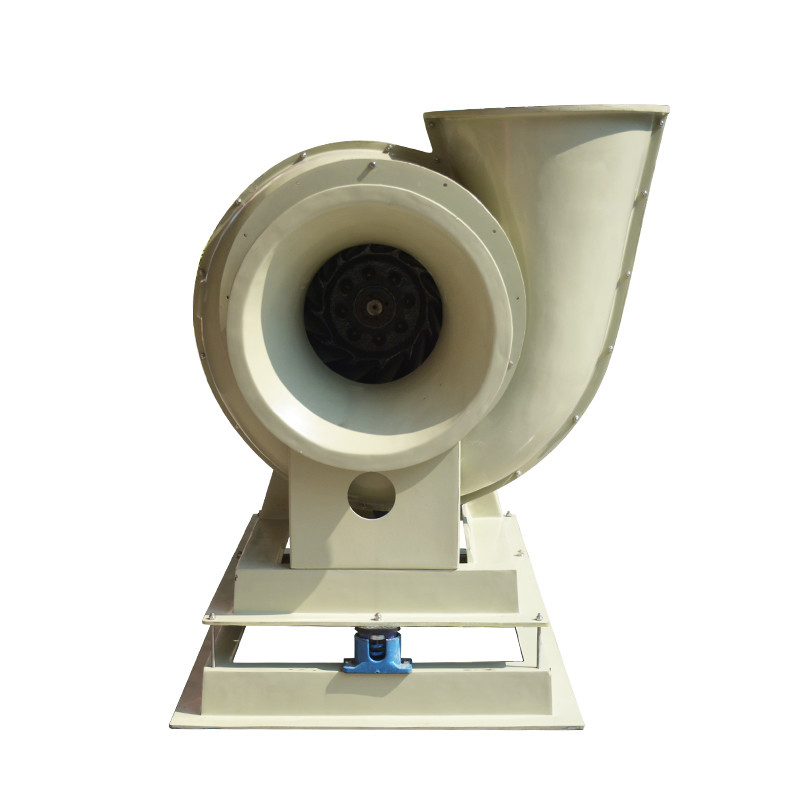

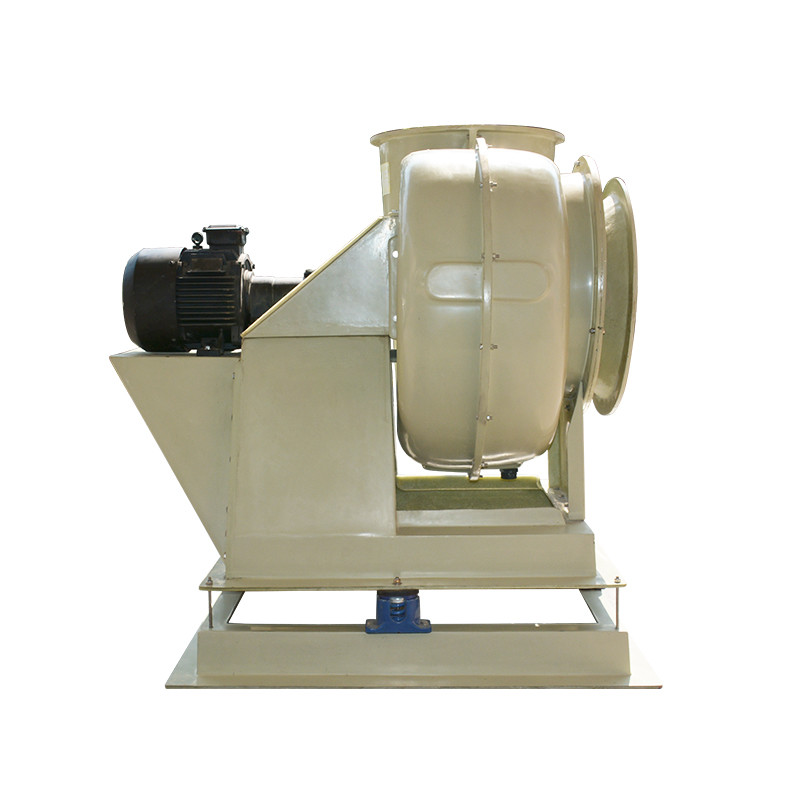

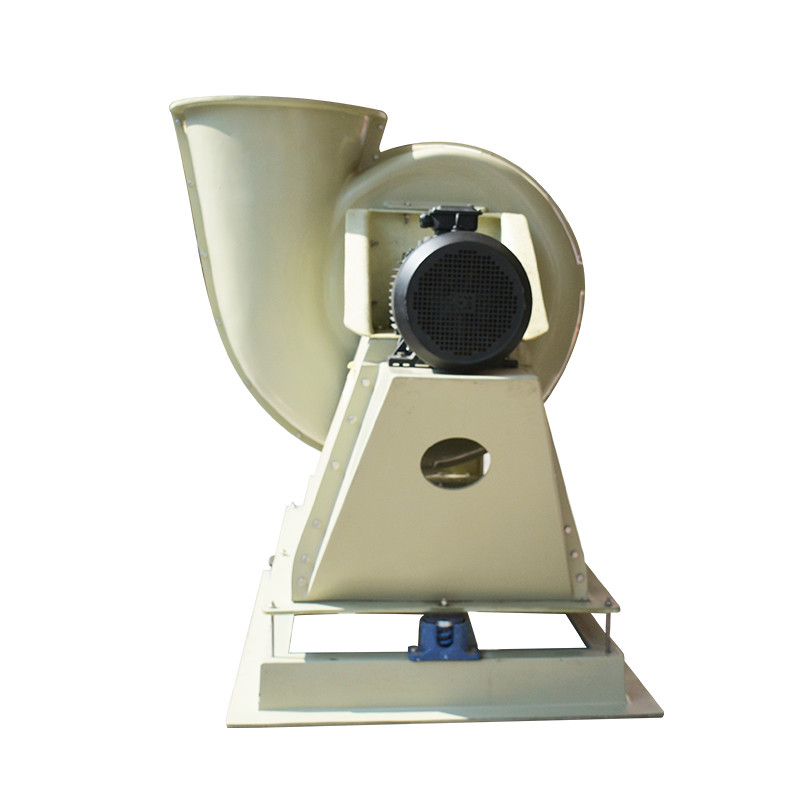

High Pressure Centrifugal Exhaust Fan Centrifugal Exhaust Blower With PM Motor 0High Pressure Centrifugal Exhaust Fan Centrifugal Exhaust Blower With PM Motor 1High Pressure Centrifugal Exhaust Fan Centrifugal Exhaust Blower With PM Motor 2

FAQ:

Q1: What is the Brand Name of the Centrifugal Exhaust Fan?

A1: The Brand Name of the Centrifugal Exhaust Fan is Xicheng.

Q2: What is the Model Number of the Centrifugal Exhaust Fan?

A2: The Model Number of the Centrifugal Exhaust Fan is XC080-4.

Q3: What is the Place of Origin of the Centrifugal Exhaust Fan?

A3: The Place of Origin of the Centrifugal Exhaust Fan is China.

Q4: What is the Minimum Order Quantity of the Centrifugal Exhaust Fan?

A4: The Minimum Order Quantity of the Centrifugal Exhaust Fan is 1PCS.

Q5: What is the Price Range of the Centrifugal Exhaust Fan?

A5: The Price Range of the Centrifugal Exhaust Fan is $860-2390/PCS.
