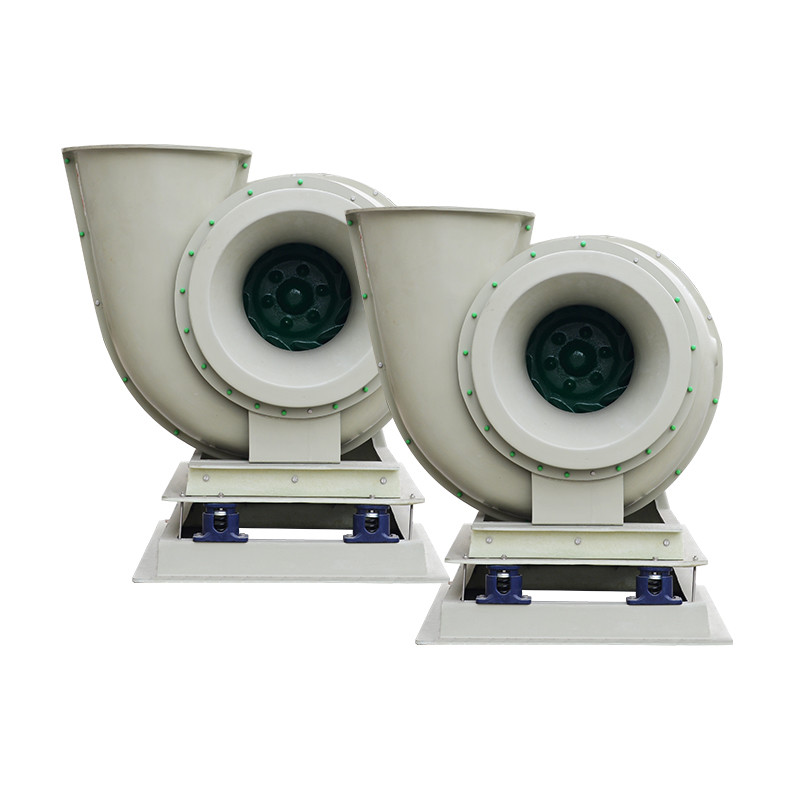

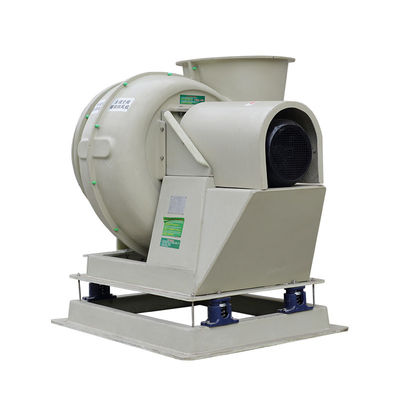

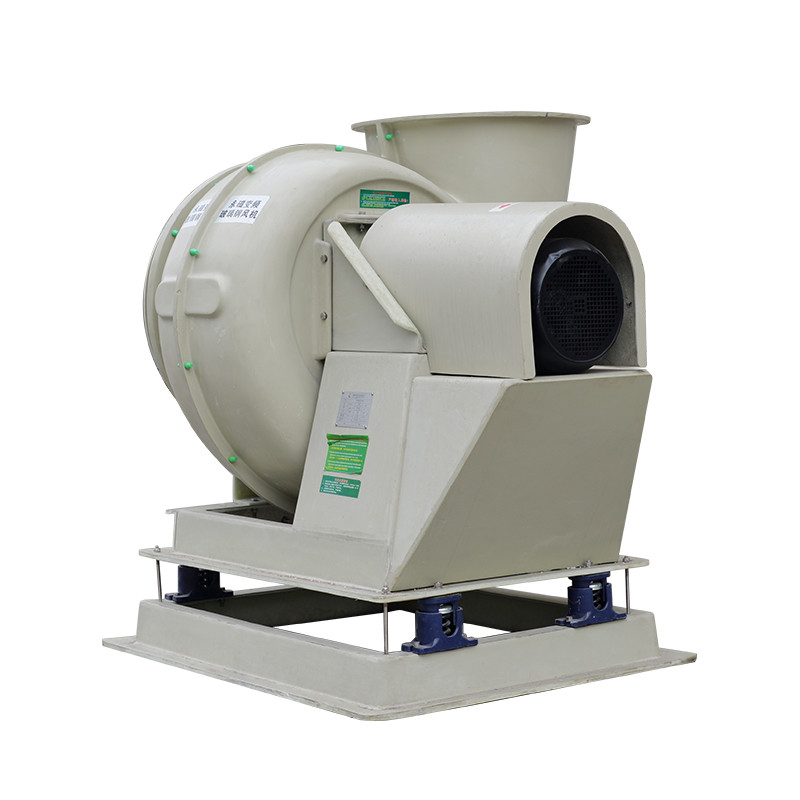

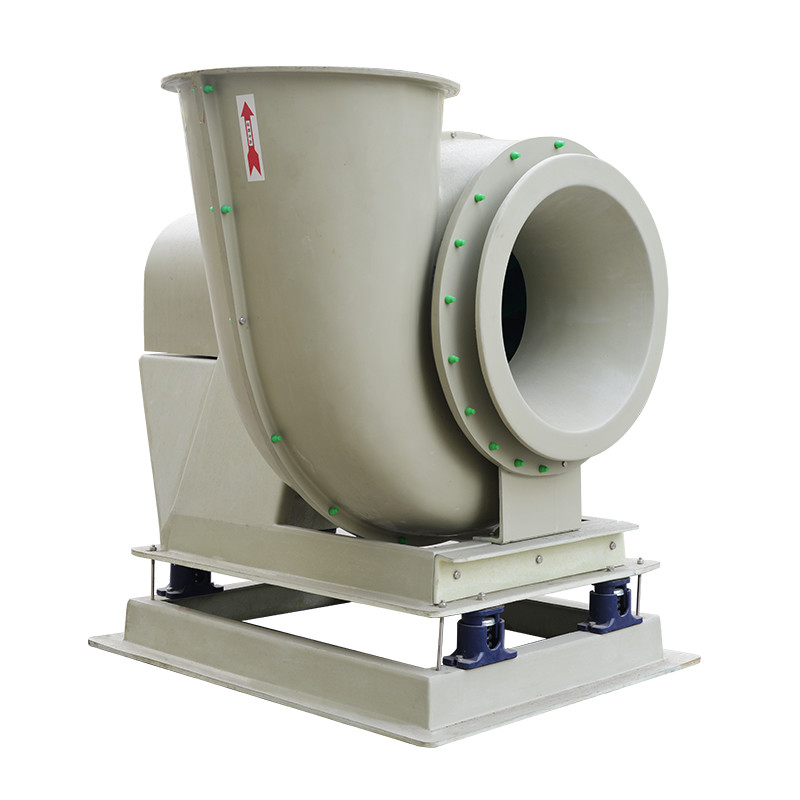

5 To 75Kw Permanent Magnet Centrifugal Fan Exhaust With FRP Bracket
| Place of Origin | China |
|---|---|
| Brand Name | Xicheng |
| Model Number | XC080-4 |
| Minimum Order Quantity | 1PCS |
| Price | $860-2390/PCS |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 300PCS 20-30work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Air Inlet | 450~1200mm | Speed | 1000~2300r/min |
|---|---|---|---|
| Air Volume | 7800~90000m³/H | Bracket | FRP |
| Wind Presssure | 1200~2200Pa | Motor | Permanent Magnet Motor |
| Power | 5.5~75Kw | Air Outlet | 410~1140mm |
| Highlight | centrifugal fan exhaust with FRP Bracket,75Kw centrifugal fan exhaust,5000W exhaust centrifugal blower |
||
You can tick the products you need and communicate with us in the message board.
| Type | XC030-1 | XC030-2 | XC040-1 | XC040-2 | XC040-3 | XC040-4 | XC050-1 | XC050-2 | XC050-3 | XC050-4 | XC060-1 | XC060-2 | XC060-3 | XC060-4 | XC070-2 | XC070-3 | XC070-4 | XC080-1 | XC080-2 | XC080-3 | XC080-4 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Air inlet | 450 | 450 | 600 | 600 | 600 | 600 | 750 | 750 | 750 | 750 | 900 | 900 | 900 | 900 | 1050 | 1050 | 1050 | 1200 | 1200 | 1200 | 1200 | |
| Air outlet | 410 | 410 | 550 | 550 | 550 | 550 | 680 | 680 | 680 | 680 | 820 | 820 | 820 | 820 | 940 | 940 | 940 | 1140 | 1140 | 1140 | 1140 | |
| Power （Kw) | 5.5 | 7.5 | 5.5 | 7.5 | 11 | 15 | 11 | 15 | 18.5 | 22 | 18.5 | 22 | 30 | 37 | 30 | 37 | 45 | 37 | 45 | 55 | 75 | |
| Air volume (m³/H） | 7800 | 9000 | 12000 | 13800 | 15600 | 18000 | 20000 | 24000 | 27000 | 30000 | 36000 | 42000 | 48000 | 54000 | 57000 | 60000 | 66000 | 72000 | 78000 | 84000 | 90000 | |
| Wind presssure（Pa） | 1800 | 2000 | 1400 | 1600 | 1800 | 2000 | 1200 | 1400 | 1600 | 1800 | 1400 | 1600 | 1800 | 2000 | 1600 | 1800 | 2000 | 1600 | 1800 | 2000 | 2200 | |
| Speed （r/min） | 2150 | 2300 | 1620 | 1710 | 1825 | 2050 | 1297 | 1460 | 1550 | 1735 | 1175 | 1235 | 1470 | 1550 | 1050 | 1200 | 1350 | 1000 | 1100 | 1200 | 1280 |
Product Description
Effective 5-75Kw Permanent Magnet Variable Frequency Centrifugal Fan with FRP Bracket
Product Description:
Centrifugal Exhaust Fan is a permanent magnet energy-saving centrifugal fan made with FRP permanent magnet material and has a wide range of air outlet, power, speed, air inlet and air volume. The air outlet ranges from 410mm to 1140mm, the power from 5.5Kw to 75Kw, the speed from 1000r/min to 2300r/min, the air inlet from 450mm to 1200mm and the air volume from 7800m³/H to 90000m³/H. It is an efficient and reliable FRP permanent magnet centrifugal fan with energy-saving features.
Features:
- Motor: permanent magnet motor replaces asynchronous motor, efficiency increased by 5%-10%
- Transmission: motor and fan impeller using direct connection mode, relative to the belt, belt pulley transmission mode efficiency increased by 3-5%
- Impeller: with Xi 'an Jiaotong University joint development and design of binary and ternary impeller, the efficiency is 5-10% higher than that of ordinary impeller
- FRP bracket, corrosion resistant, acid and alkali resistant
Technical Parameters:
| Parameter | Value |
|---|---|
| Wind presssure | 1200~2200Pa |
| Bracket | FRP |
| Motor | Permanent Magnet Motor |
| Speed | 1000~2300r/min |
| Air volume | 7800~90000m³/H |
| Power | 5.5~75Kw |
| Air outlet | 410~1140mm |
| Air inlet | 450~1200mm |
Applications:
The Xicheng XC080-4 FRP Variable Frequency Permanent Magnet Centrifugal Fan is designed to provide air ventilation and air conditioning solutions in various industrial, commercial and residential environments. It features a permanent magnet motor that drives the fan, producing air volumes ranging from 7800 to 90000m³/h. The fan has an air inlet between 450 and 1200mm, and an air outlet between 410 and 1140mm, with a wind pressure of 1200 to 2200Pa, making it suitable for a variety of applications. It is also a Permanent Magnet Drive Integrated Motor Centrifugal Fan, which is more efficient and energy-saving than traditional fans. The minimum order quantity of the fan is 1PC, and the price ranges from $860 to $2390 per unit. The delivery time is 7 to 15 work days, and the payment terms are L/C or T/T. The supply ability is 300PCS in 20 to 30 work days.
Support and Services:
Centrifugal Exhaust Fan Technical Support and Service
We provide technical support and service for our Centrifugal Exhaust Fan products. Our customer service team is available to assist you with any queries you may have.We are committed to providing you with the best possible service, so if you have any questions or concerns, please do not hesitate to contact us.
FAQ:
Frequently Asked Questions and Answers
Q: What is the Brand Name?
A: The Brand Name is Xicheng.
Q: What is the Model Number?
A: The Model Number is XC080-4.
Q: Where is the Place of Origin?
A: The Place of Origin is China.
Q: What is the Minimum Order Quantity?
A: The Minimum Order Quantity is 1PCS.
Q: What is the Price?
A: The Price is $860-2390/PCS.
Q: How long is the Delivery Time?
A: The Delivery Time is 7-15 work days.
Q: What are the Payment Terms?
A: The Payment Terms are L/C,T/T.
Q: What is the Supply Ability?
A: The Supply Ability is 300PCS 20-30work days.
