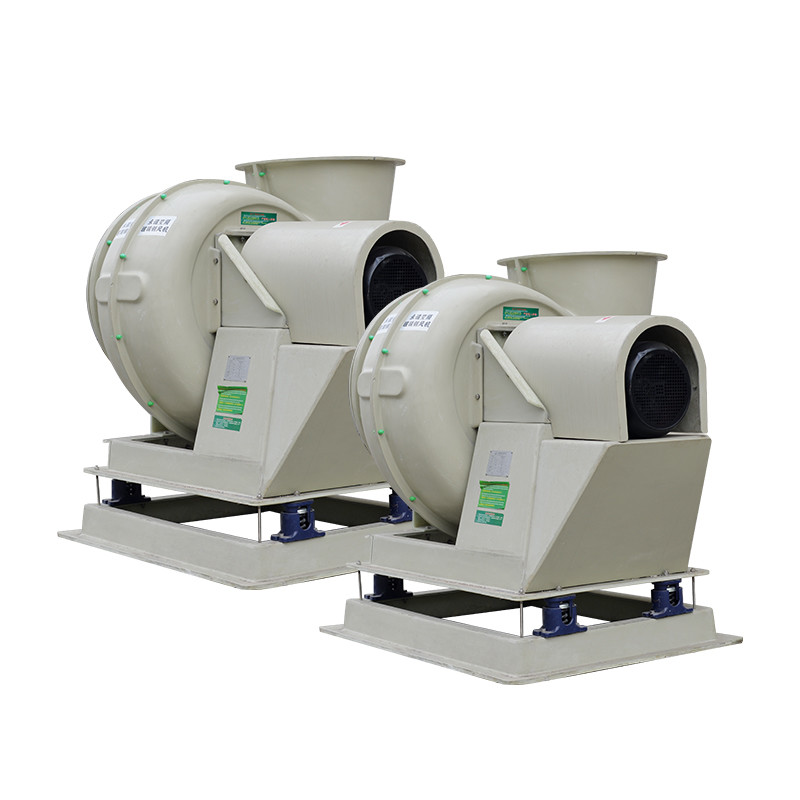

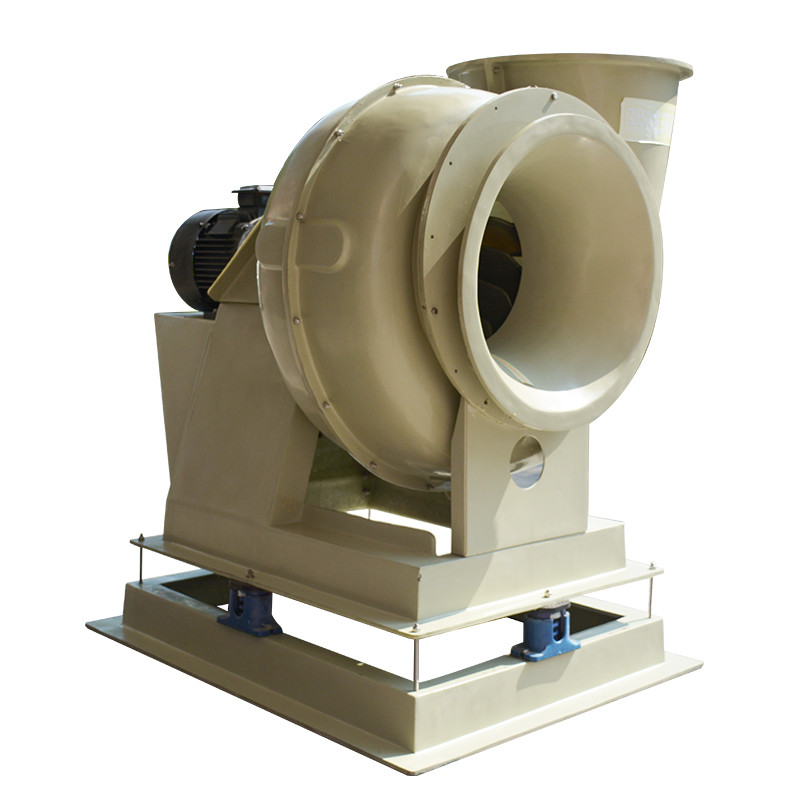

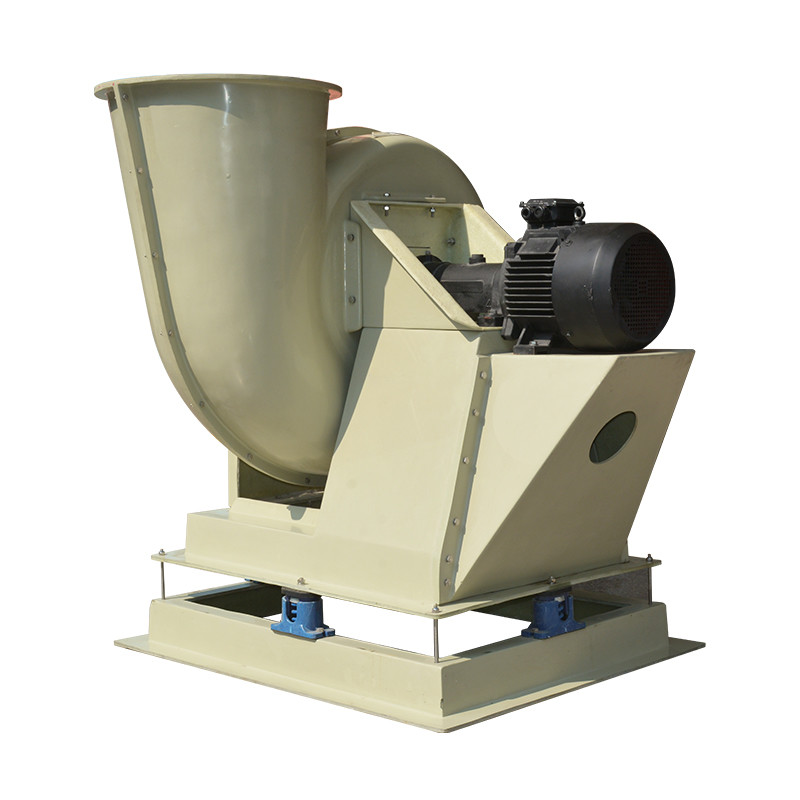

Industrial Permanent Magnet Centrifugal Exhaust Fan Blower For Air Flow 2200Pa
| Place of Origin | China |
|---|---|
| Brand Name | Xicheng |
| Model Number | XC080-4 |
| Minimum Order Quantity | 1PCS |
| Price | $860-2390/PCS |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 300PCS 20-30work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Air Inlet | 450~1200mm | Air Volume | 7800~90000m³/H |
|---|---|---|---|
| Wind Presssure | 1200~2200Pa | Power | 5.5~75Kw |
| Speed | 1000~2300r/min | Bracket | FRP |
| Air Outlet | 410~1140mm | Motor | Permanent Magnet Motor |
| Highlight | Industrial centrifugal exhaust fan blower odm,Permanent Magnet centrifugal exhaust fan blower,exhaust fan centrifugal type 2200Pa |
||
You can tick the products you need and communicate with us in the message board.
| Type | XC030-1 | XC030-2 | XC040-1 | XC040-2 | XC040-3 | XC040-4 | XC050-1 | XC050-2 | XC050-3 | XC050-4 | XC060-1 | XC060-2 | XC060-3 | XC060-4 | XC070-2 | XC070-3 | XC070-4 | XC080-1 | XC080-2 | XC080-3 | XC080-4 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Air inlet | 450 | 450 | 600 | 600 | 600 | 600 | 750 | 750 | 750 | 750 | 900 | 900 | 900 | 900 | 1050 | 1050 | 1050 | 1200 | 1200 | 1200 | 1200 | |
| Air outlet | 410 | 410 | 550 | 550 | 550 | 550 | 680 | 680 | 680 | 680 | 820 | 820 | 820 | 820 | 940 | 940 | 940 | 1140 | 1140 | 1140 | 1140 | |
| Power （Kw) | 5.5 | 7.5 | 5.5 | 7.5 | 11 | 15 | 11 | 15 | 18.5 | 22 | 18.5 | 22 | 30 | 37 | 30 | 37 | 45 | 37 | 45 | 55 | 75 | |
| Air volume (m³/H） | 7800 | 9000 | 12000 | 13800 | 15600 | 18000 | 20000 | 24000 | 27000 | 30000 | 36000 | 42000 | 48000 | 54000 | 57000 | 60000 | 66000 | 72000 | 78000 | 84000 | 90000 | |
| Wind presssure（Pa） | 1800 | 2000 | 1400 | 1600 | 1800 | 2000 | 1200 | 1400 | 1600 | 1800 | 1400 | 1600 | 1800 | 2000 | 1600 | 1800 | 2000 | 1600 | 1800 | 2000 | 2200 | |
| Speed （r/min） | 2150 | 2300 | 1620 | 1710 | 1825 | 2050 | 1297 | 1460 | 1550 | 1735 | 1175 | 1235 | 1470 | 1550 | 1050 | 1200 | 1350 | 1000 | 1100 | 1200 | 1280 |
Product Description
Industrial Grade Permanent Magnet Energy-Saving Centrifugal Fan for Efficient Air Flow
Product Description:
Our Centrifugal Exhaust Fan is equipped with a permanent magnet motor and variable frequency speed, ranging from 1000 to 2300 revolutions per minute (RPM). It also features a FRP bracket for ultra-durability and strength. This fan can handle air inlets as large as 450mm to 1200mm and exhausts from 410mm to 1140mm.
Our Centrifugal Exhaust Fan is the perfect choice when it comes to a reliable and efficient FRP Variable Frequency Permanent Magnet Centrifugal Fan. It is engineered to provide a powerful and efficient air circulation. This fan is ideal for both residential and commercial applications, and is an excellent choice for any environment that requires a strong, long-lasting, and reliable fan.
This Centrifugal Exhaust Fan is the perfect combination of performance and value. With its superior performance and long-lasting durability, this fan is sure to provide years of reliable service. Whether you are looking for an efficient and reliable fan or one that is powerful and long-lasting, this fan is sure to meet your needs. Our Centrifugal Exhaust Fan is the perfect choice for any environment that requires a strong, reliable, and long-lasting fan with variable frequency and speed control.
Features:
- Motor: permanent magnet motor replaces asynchronous motor, efficiency increased by 5%-10%
- Transmission: motor and fan impeller using direct connection mode, relative to the belt, belt pulley transmission mode efficiency increased by 3-5%
- Impeller: with Xi 'an Jiaotong University joint development and design of binary and ternary impeller, the efficiency is 5-10% higher than that of ordinary impeller
- FRP bracket, corrosion resistant, acid and alkali resistant
Technical Parameters:
| Parameters | Details |
|---|---|
| Air Outlet | 410~1140mm |
| Speed | 1000~2300r/min |
| Air Volume | 7800~90000m³/H |
| Motor | Permanent Magnet Motor |
| Power | 5.5~75Kw |
| Wind Pressure | 1200~2200Pa |
| Bracket | FRP |
| Air Inlet | 450~1200mm |
Applications:
Xicheng XC080-4 Centrifugal Exhaust Fan
Product Application
The Xicheng XC080-4 Centrifugal Exhaust Fan is an ideal choice for ventilation and cooling in a variety of applications. It is powered by a Permanent Magnet Drive Integrated Motor, providing energy-efficient performance and reliable operation. The fan features a FRP Bracket, which enables quiet operation and a long service life.
FAQ:
Q1: What is the Brand Name of the Centrifugal Exhaust Fan?
A1: The Brand Name of the Centrifugal Exhaust Fan is Xicheng.
Q2: What is the Model Number of the Centrifugal Exhaust Fan?
A2: The Model Number of the Centrifugal Exhaust Fan is XC080-4.
Q3: Where is the Place of Origin of the Centrifugal Exhaust Fan?
A3: The Place of Origin of the Centrifugal Exhaust Fan is China.
Q4: What is the Minimum Order Quantity for the Centrifugal Exhaust Fan?
A4: The Minimum Order Quantity for the Centrifugal Exhaust Fan is 1PCS.
Q5: What is the Price of the Centrifugal Exhaust Fan?
A5: The Price of the Centrifugal Exhaust Fan is $860-2390/PCS.
