FRP Permanent Magnet Centrifugal Suction Fan For Various Use 2300r/min

  • FRP Permanent Magnet Centrifugal Suction Fan For Various Use 2300r/min
  • FRP Permanent Magnet Centrifugal Suction Fan For Various Use 2300r/min
  • FRP Permanent Magnet Centrifugal Suction Fan For Various Use 2300r/min
Place of Origin China
Brand Name Xicheng
Model Number XC080-4
Minimum Order Quantity 1PCS
Price $860-2390/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 300PCS 20-30work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wind Presssure 1200~2200Pa Speed 1000~2300r/min
Air Inlet 450~1200mm Motor Permanent Magnet Motor
Air Volume 7800~90000m³/H Power 5.5~75Kw
Air Outlet 410~1140mm Bracket FRP
Highlight

FRP centrifugal suction fan

,

Permanent Magnet centrifugal suction fan

,

centrifugal suction fan 2300r/min
You can tick the products you need and communicate with us in the message board.
Type XC030-1 XC030-2 XC040-1 XC040-2 XC040-3 XC040-4 XC050-1 XC050-2 XC050-3 XC050-4 XC060-1 XC060-2 XC060-3 XC060-4 XC070-2 XC070-3 XC070-4 XC080-1 XC080-2 XC080-3 XC080-4
Air inlet 450 450 600 600 600 600 750 750 750 750 900 900 900 900 1050 1050 1050 1200 1200 1200 1200
Air outlet 410 410 550 550 550 550 680 680 680 680 820 820 820 820 940 940 940 1140 1140 1140 1140
Power （Kw) 5.5 7.5 5.5 7.5 11 15 11 15 18.5 22 18.5 22 30 37 30 37 45 37 45 55 75
Air volume (m³/H） 7800 9000 12000 13800 15600 18000 20000 24000 27000 30000 36000 42000 48000 54000 57000 60000 66000 72000 78000 84000 90000
Wind presssure（Pa） 1800 2000 1400 1600 1800 2000 1200 1400 1600 1800 1400 1600 1800 2000 1600 1800 2000 1600 1800 2000 2200
Speed （r/min） 2150 2300 1620 1710 1825 2050 1297 1460 1550 1735 1175 1235 1470 1550 1050 1200 1350 1000 1100 1200 1280
Leave a Message
Type XC030-1 XC030-2 XC040-1 XC040-2 XC040-3 XC040-4 XC050-1 XC050-2 XC050-3 XC050-4 XC060-1 XC060-2 XC060-3 XC060-4 XC070-2 XC070-3 XC070-4 XC080-1 XC080-2 XC080-3 XC080-4
Product Description

Efficient FRP Permanent Magnet Centrifugal Fan Suitable for Various Applications

Product Description:

Centrifugal Exhaust Fan is a high-performance and efficient ventilation product, made with Permanent Magnet Variable Frequency technology, which has a power range from 5.5 to 75 KW and a speed range from 1000 to 2300 r/min. The air outlet size is from 410 to 1140 mm, and the air volume ranges from 7800 to 90000m³/H. It is equipped with a Permanent Magnet Motor and FRP Permanent Magnet Centrifugal Fan, which is integrated with Permanent Magnet Drive technology. The product is reliable in performance and has long service life.



Features:



  • Motor: permanent magnet motor replaces asynchronous motor, efficiency increased by 5%-10%
  • Transmission: motor and fan impeller using direct connection mode, relative to the belt, belt pulley transmission mode efficiency increased by 3-5%
  • Impeller: with Xi 'an Jiaotong University joint development and design of binary and ternary impeller, the efficiency is 5-10% higher than that of ordinary impeller
  • FRP bracket, corrosion resistant, acid and alkali resistant





Technical Parameters:

Technical Parameters Specification
Wind pressure 1200~2200Pa
Air outlet 410~1140mm
Speed 1000~2300r/min
Power 5.5~75Kw
Air inlet 450~1200mm
Air volume 7800~90000m³/H
Bracket FRP
Motor Permanent Magnet Motor


Applications:

Xicheng XC080-4 Permanent Magnet Energy-Saving Centrifugal Exhaust Fan is a reliable and cost-effective solution to many ventilation needs. It offers superior air volume of 7800~90000m³/H and wind pressure of 1200~2200Pa, with a speed from 1000~2300r/min and power range from 5.5~75Kw. The FRP permanent magnet motor provides the perfect combination of energy efficiency and durability, making this fan an ideal choice for many applications. It is designed to meet the highest standards in terms of quality, performance and reliability. Xicheng XC080-4 Centrifugal Exhaust Fan is available for order with a minimum of 1PCS, and the price range is from $860-2390/PCS. It typically takes 7-15 work days for delivery, and the payment terms are L/C,T/T. The supply ability is 300PCS 20-30work days.

Support and Services:

Centrifugal Exhaust Fan Technical Support and Service

We provide technical support and service for Centrifugal Exhaust Fans. Our technicians are experienced and highly skilled in the installation, maintenance and repair of Centrifugal Exhaust Fans.

We are available to answer any questions or concerns you may have about your Centrifugal Exhaust Fan. If you have any problems with your Centrifugal Exhaust Fan, don't hesitate to contact us for help.

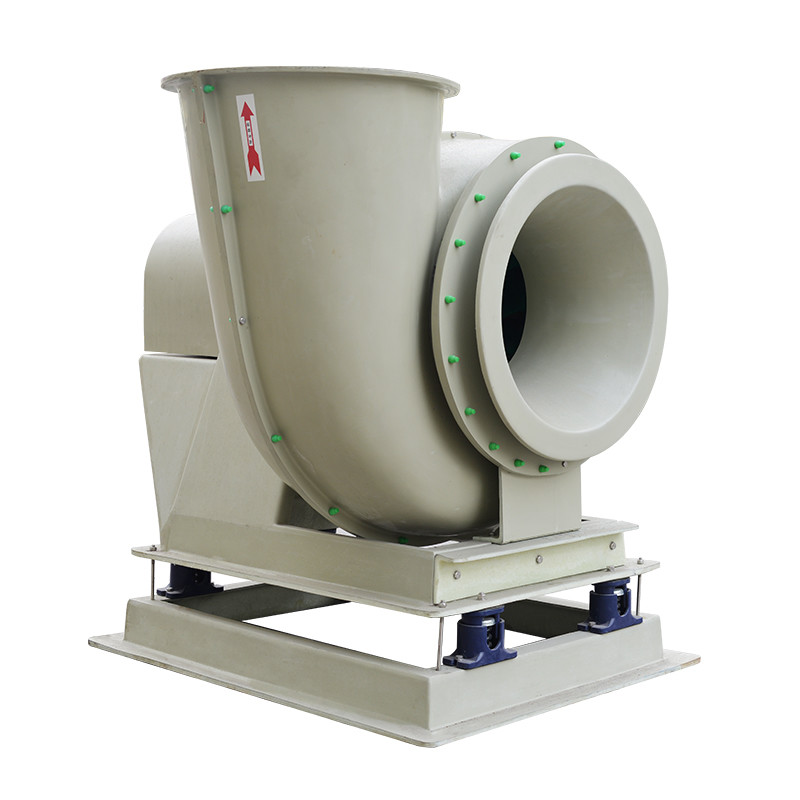

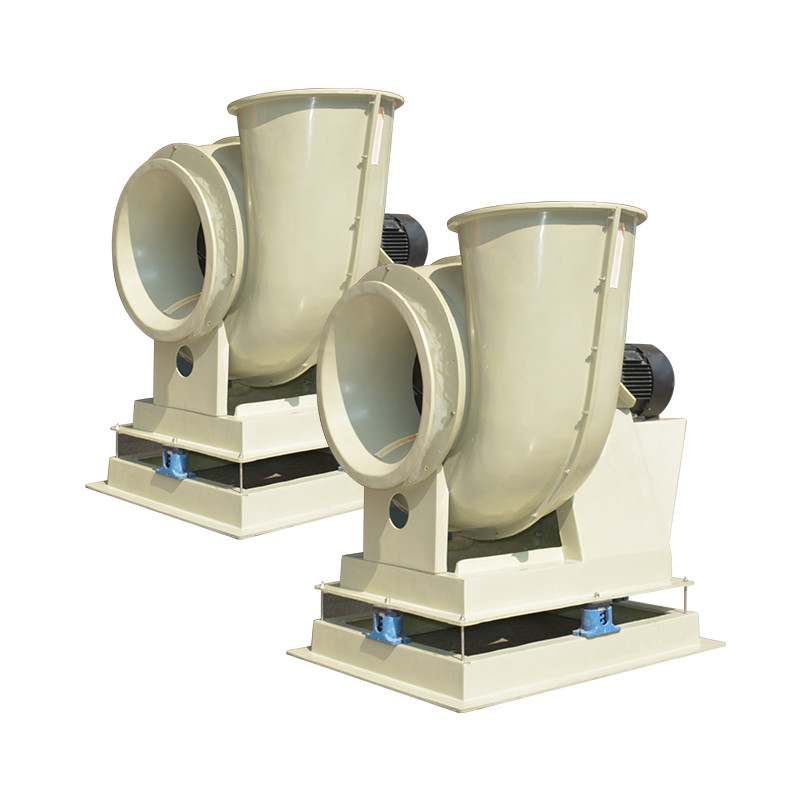

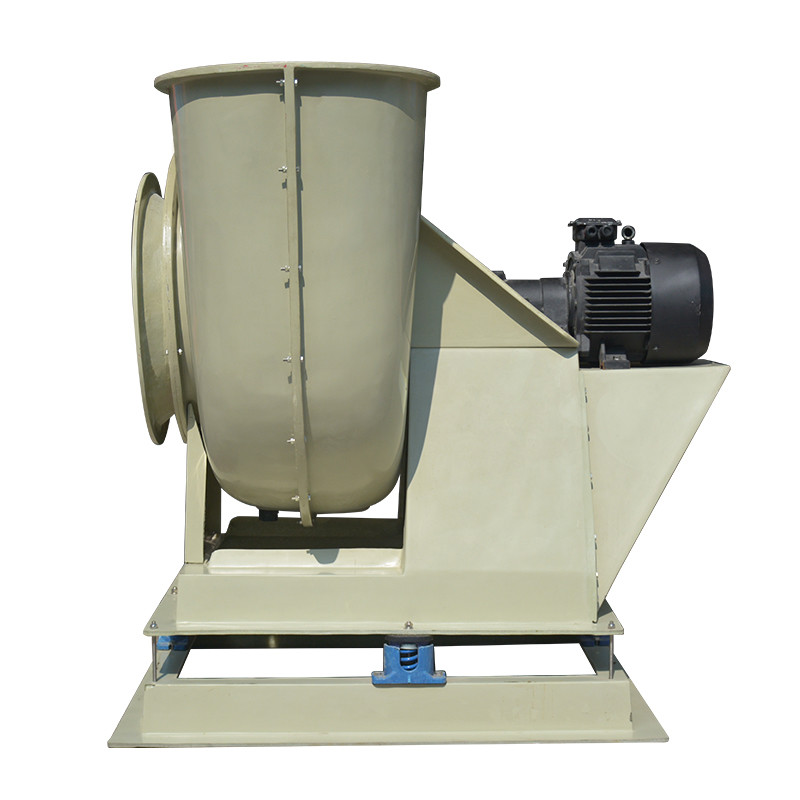

FRP Permanent Magnet Centrifugal Suction Fan For Various Use 2300r/min 0FRP Permanent Magnet Centrifugal Suction Fan For Various Use 2300r/min 1FRP Permanent Magnet Centrifugal Suction Fan For Various Use 2300r/min 2

FAQ:

  • Q: What is the brand name of the Centrifugal Exhaust Fan?
    A: The brand name is Xicheng.
  • Q: What is the model number of the Centrifugal Exhaust Fan?
    A: The model number is XC080-4.
  • Q: Where is the Centrifugal Exhaust Fan made?
    A: The Centrifugal Exhaust Fan is made in China.
  • Q: What is the minimum order quantity for the Centrifugal Exhaust Fan?
    A: The minimum order quantity is 1PCS.
  • Q: How much does the Centrifugal Exhaust Fan cost?
    A: The Centrifugal Exhaust Fan costs $860-$2390/PCS.
