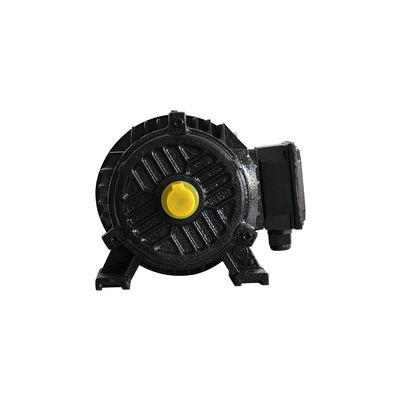

High Speed Permanent Magnet Synchronous Ac Motor 100 - 200Hz

  • High Speed Permanent Magnet Synchronous Ac Motor 100 - 200Hz
  • High Speed Permanent Magnet Synchronous Ac Motor 100 - 200Hz
  • High Speed Permanent Magnet Synchronous Ac Motor 100 - 200Hz
Place of Origin China
Brand Name Xicheng
Model Number TYB80-8-0.75-3000
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 0.75-15Kw Installation Mode B3/B35
Insulation Grade B Working System S1
Efficiency 88.6%-95.3% Product Name Permanent Magnet AC Motor
Frequency 100-200Hz Voltage 380V
Highlight

permanent magnet synchronous ac motor 100Hz

,

permanent magnet synchronous ac motor 200Hz

,

S1 high speed permanent magnet motor
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description

88.6%-95.3% Efficiency Permanent Magnet AC Motor for Frequency 100-200Hz

Product Description:

Permanent Magnet Motor, also known as Permanent Magnet Alternating Motor, is a type of AC motor driven by permanent magnet. It is characterized by its high efficiency, low noise, and small size. Our Permanent Magnet AC Motor features an Insulation Grade of B, with Output ranging from 0.75-15Kw, Frequency from 100-200Hz, Speed from 1500-3000rpm, and Installation Mode of B3/B35. The product is a permanent magnet motor specially designed for fans,the efficiency index reaches the first-class standard of GB30253-2013 "Energy Efficiency Limits and Energy Efficiency Grades of Permanent Magnet Synchronous Motors",reach the international advanced level of similar products.



Features:

  • High efficiency and energy saving, first-class energy efficiency
  • High power factor, improve grid quality factor
  • High power density, convenient for energy-saving retrofit and upgrade
  • The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions
  • Integrated design of driver and motor, simple wiring and better motor protection


Technical Parameters:

Parameter Value
Product Name Permanent Magnet AC Motor
Installation Mode B3/B35
Working System S1
Output 0.75-15Kw
Frequency 100-200Hz
Insulation Grade B
Voltage 380V
Speed 1500-3000rpm
Efficiency 88.6%-95.3%


Applications:

Permanent Magnet AC Motor from Xicheng

Xicheng’s Permanent Magnet AC Motor, Model Number TYB80-8-0.75-3000, is the ideal choice for industrial applications requiring high performance and reliable operation. It is produced in China and is available for purchase with a minimum order quantity of 1PCS. Prices range from $120-580/PCS and the delivery time is 7-15 work days. Payment terms are flexible and include L/C and T/T. The supply ability is 500PCS 15-20work days. It features an installation mode of B3/B35, a frequency of 100-200Hz, a speed of 1500-3000rpm, and an output of 0.75-15Kw.



Support and Services:

Technical Support and Service for Permanent Magnet AC Motor

Our team of engineers are available to provide technical support and services for Permanent Magnet AC Motors. We provide a wide range of services, including:

  • Design and development advice
  • Installation and commissioning support
  • Troubleshooting assistance
  • Performance optimization
  • Upgrades and modifications

We also offer a range of training programs to help customers become proficient in the use of their Permanent Magnet AC Motor. Our experienced staff are always on hand to answer any questions and provide the best possible service.

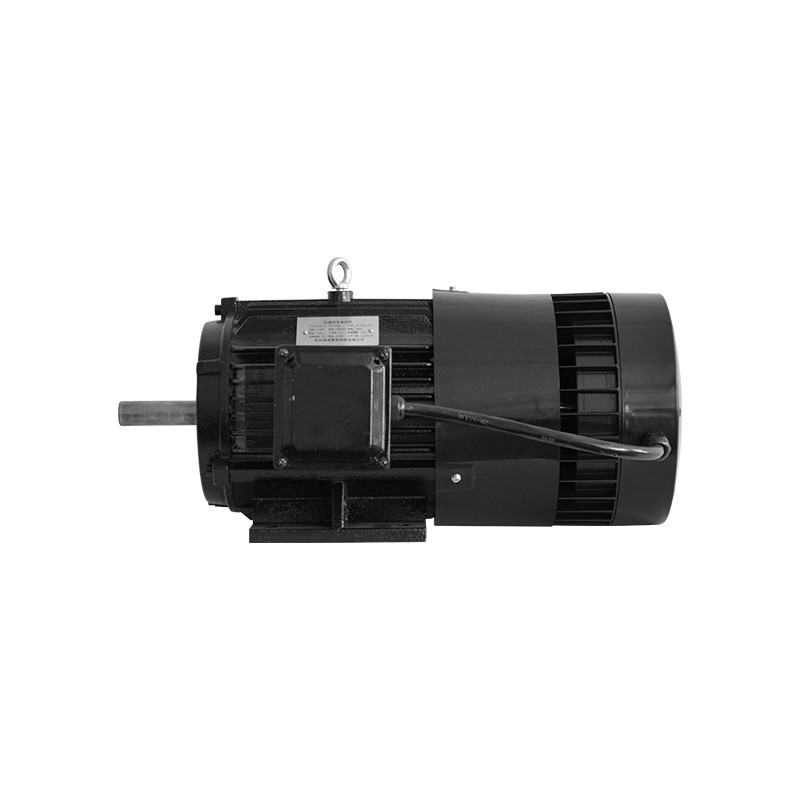

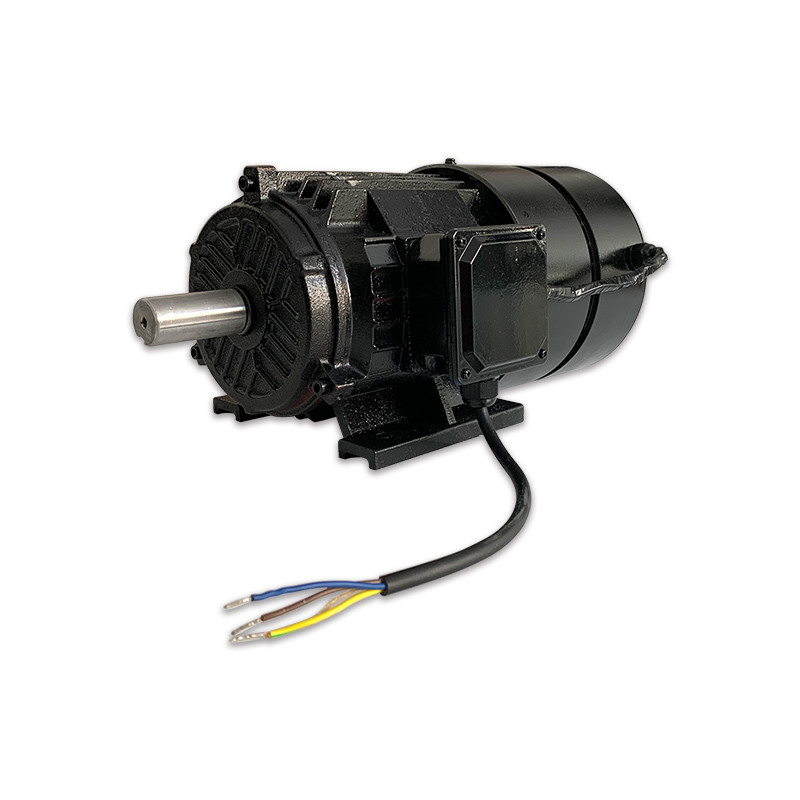

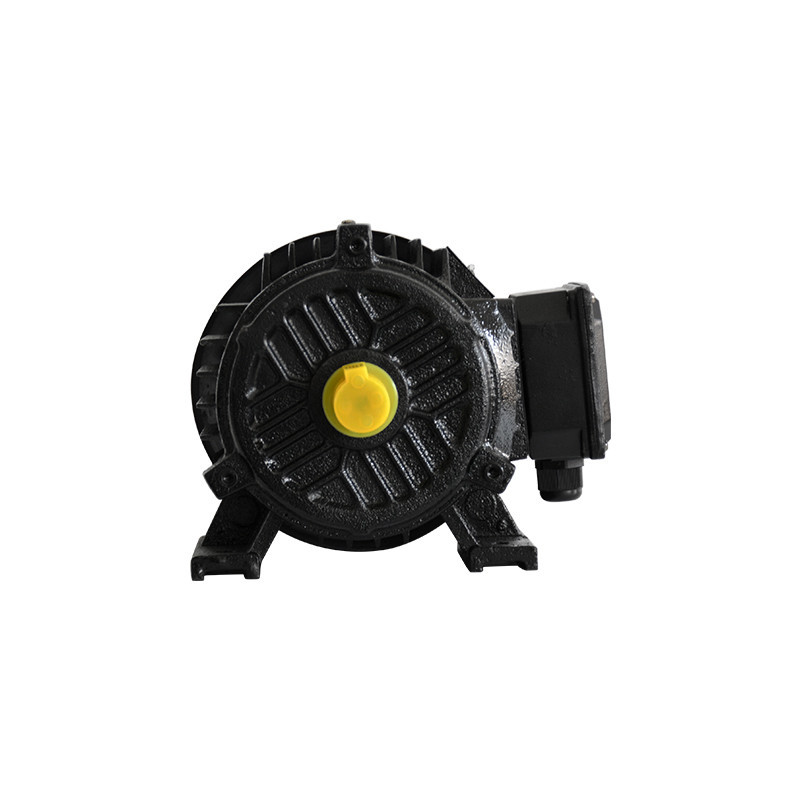

High Speed Permanent Magnet Synchronous Ac Motor 100 - 200Hz 0High Speed Permanent Magnet Synchronous Ac Motor 100 - 200Hz 1High Speed Permanent Magnet Synchronous Ac Motor 100 - 200Hz 2

FAQ:

Q1: What is the brand name of the Permanent Magnet AC Motor?

A1: The brand name of the Permanent Magnet AC Motor is Xicheng.

Q2: What is the model number of the Permanent Magnet AC Motor?

A2: The model number of the Permanent Magnet AC Motor is TYB80-8-0.75-3000.

Q3: Where is the Permanent Magnet AC Motor made?

A3: The Permanent Magnet AC Motor is made in China.

Q4: How much does the Permanent Magnet AC Motor cost?

A4: The price of the Permanent Magnet AC Motor range from $120-580 per PCS.

Q5: How long does it take to deliver the Permanent Magnet AC Motor?

A5: The delivery time of the Permanent Magnet AC Motor is 7-15 work days. The Supply Ability is 500PCS 15-20work days.
