S1 Working System Permanent Magnet AC Motor Synchronous For Versatile

  • S1 Working System Permanent Magnet AC Motor Synchronous For Versatile
  • S1 Working System Permanent Magnet AC Motor Synchronous For Versatile
  • S1 Working System Permanent Magnet AC Motor Synchronous For Versatile
Place of Origin China
Brand Name Xicheng
Model Number TYB80-8-0.75-3000
Minimum Order Quantity 1PCS
Price $120-580/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Speed 1500-3000rpm Output 0.75-15Kw
Product Name Permanent Magnet AC Motor Insulation Grade B
Working System S1 Installation Mode B3/B35
Voltage 380V Frequency 100-200Hz
Highlight

S1 Working Permanent Magnet AC Motor

,

Permanent Magnet AC Motor 3000rpm

,

synchronous ac motor For Versatile
You can tick the products you need and communicate with us in the message board.
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Voltage (V) 380 380 380 380 380 380 380 380 380 380 380 380
Erequency (Hz) 200 200 200 200 167 167 167 100 100 200 200 200
Output (Kw) 0.75 1.1 1.5 2.2 3 4 5.5 5.5 7.5 7.5 11 15
Speed (rpm) 3000 3000 3000 3000 2500 2500 2500 1500 1500 3000 3000 3000
Efficiency (%) 88.6 89.8 90.9 91.8 92.6 93.3 93.9 92.1 92.6 94.5 95 95.3
Working system S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B B B B B
Installation mode B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35 B3/B35
Leave a Message
Type TYB80-8-0.75-3000 TYB80-8-1.1-3000 TYB90-8-1.5-3000 TYB90-8-2.2-3000 TYB112-8-3-2500 TYB112-8-4-2500 TYB132-8-5.5-2500 TYB132-8-5.5-1500 TYB132-8-7.5-1500 TYB132-8-7.5-3000 TYB132-8-11-3000 TYB132-8-15-3000
Product Description

Powerful Permanent Magnet AC Motor with S1 Working System for Versatile Applications

Product Description:

Principle:The three-phase symmetrical current passing through the three-phase winding of the stator will generate a stator rotating magnetic field. The rotating magnetic field of the stator generates current in the cage winding for the rotation of the rotor to generate the rotating magnetic field of the rotor. The asynchronous torque generated by the interaction between the stator rotating magnetic field and the rotor rotating magnetic field makes the rotor turn from stationary to rotating. After the start-up is completed, the rotor winding is no longer active, and the magnetic field generated by the permanent magnet and the stator winding interacts to generate driving torque.

The product is a permanent magnet motor specially designed for fans,the efficiency index reaches the first-class standard of GB30253-2013 "Energy Efficiency Limits and Energy Efficiency Grades of Permanent Magnet Synchronous Motors",reach the international advanced level of similar products. Its high efficiency, low power consumption, and quiet operation make it a reliable and cost-effective choice for any application.



Features:



  • High efficiency and energy saving, first-class energy efficiency
  • High power factor, improve grid quality factor
  • High power density, convenient for energy-saving retrofit and upgrade
  • The frequency range is wide, and it can still maintain high-efficiency operation under changing load conditions
  • Integrated design of driver and motor, simple wiring and better motor protection





Technical Parameters:

Product Name Working System Speed Installation Mode Frequency Output Insulation Grade Voltage Efficiency
Permanent Magnet AC Motor S1 1500-3000rpm B3/B35 100-200Hz 0.75-15Kw B 380V 88.6%-95.3%


Applications:

Xicheng Permanent Magnet AC Motor, also known as Permanent Magnet Alternating Current Motor, is a reliable and efficient motor that offers a wide range of applications. It features Model Number TYB80-8-0.75-3000, and is manufactured in China. The motor comes with a Minimum Order Quantity of 1PCS and Price of $120-580/PCS. It has a Delivery Time of 7-15 work days, Payment Terms of L/C,T/T, Supply Ability of 500PCS 15-20work days and Frequency of 100-200Hz. It has a Working System of S1, Efficiency of 88.6%-95.3%, Insulation Grade of B and Output of 0.75-15Kw. With its outstanding features, Xicheng Permanent Magnet AC Motor is widely used in many industrial applications.



Support and Services:

Technical Support & Service for Permanent Magnet AC Motor

At our company, we provide comprehensive technical support and service for Permanent Magnet AC Motor. Our professional team is available 24/7 to answer any questions or concerns you may have regarding the product. We have extensive knowledge of the product and can provide advice and guidance to ensure that you get the most out of your purchase.

We also offer repair services and replacement parts for Permanent Magnet AC Motor. Our technicians are highly skilled and knowledgeable and can quickly diagnose and repair any issues that may arise.

We can also provide training and educational materials to help you and your staff become familiar with the product. Our customer service staff is available to answer any questions you may have about the product as well.

At our company, we strive to provide the best technical support and service for Permanent Magnet AC Motor. We are committed to helping you get the most out of your purchase and providing you with the best customer service experience possible.

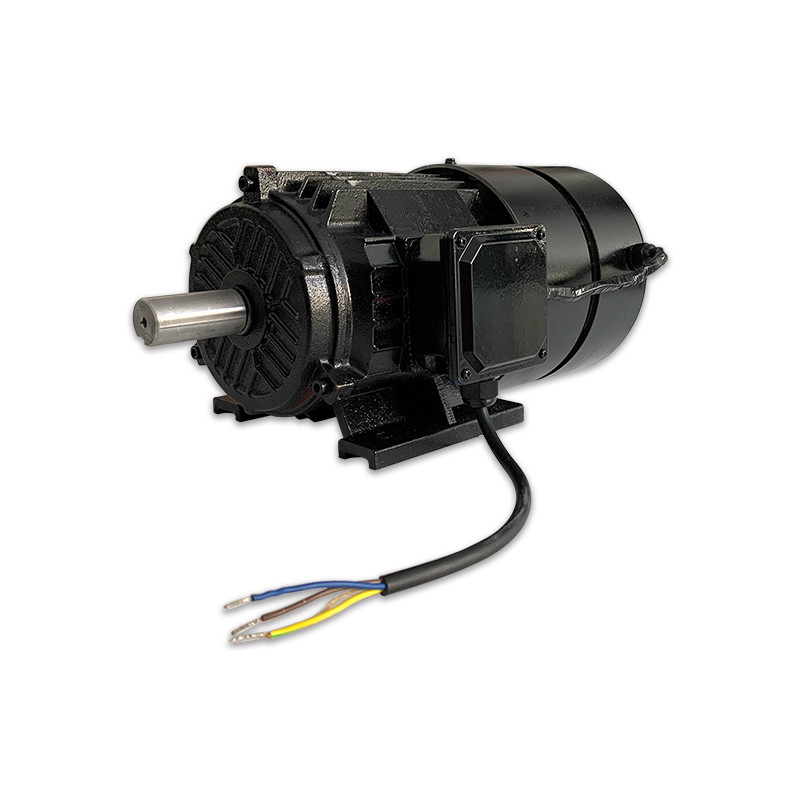

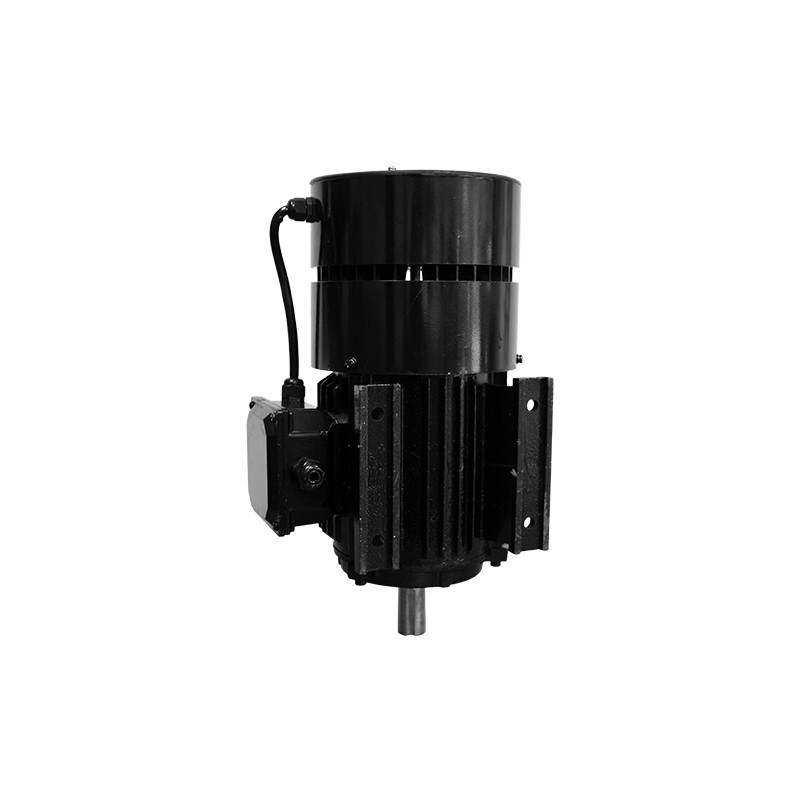

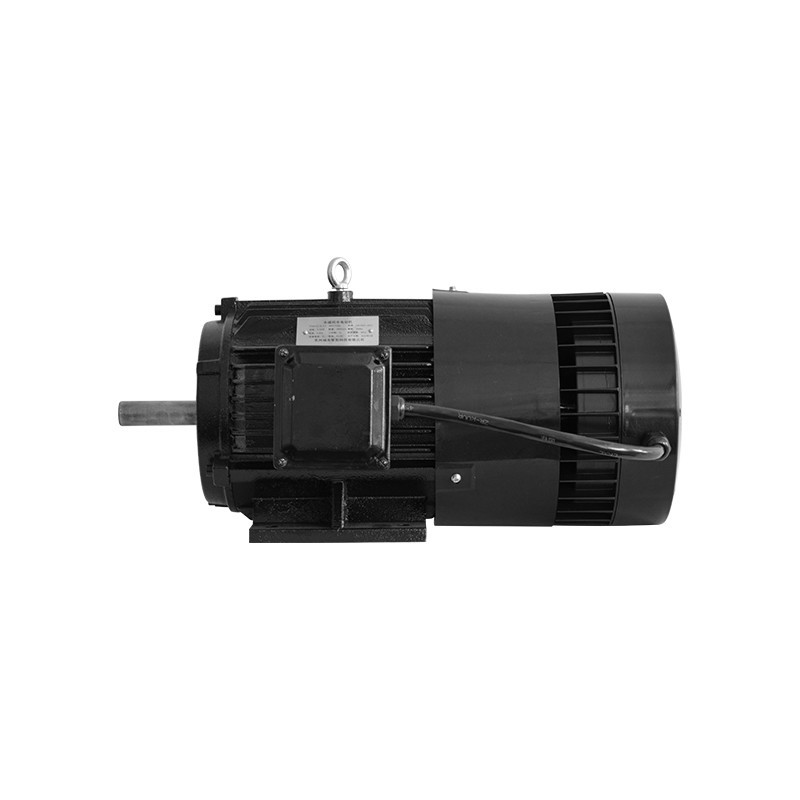

S1 Working System Permanent Magnet AC Motor Synchronous For Versatile 0S1 Working System Permanent Magnet AC Motor Synchronous For Versatile 1S1 Working System Permanent Magnet AC Motor Synchronous For Versatile 2

FAQ:

Q1: What is Permanent Magnet AC Motor?

A1: The product is a permanent magnet motor specially designed for fans,the efficiency index reaches the first-class standard of GB30253-2013 "Energy Efficiency Limits and Energy Efficiency Grades of Permanent Magnet Synchronous Motors",reach the international advanced level of similar products.

Q2: What is the brand name, model number, minimum order quantity and price of Permanent Magnet AC Motor?

A2: The brand name of Permanent Magnet AC Motor is Xicheng, the model number is TYB80-8-0.75-3000, the minimum order quantity is 1PCS, and the price ranges from $120-580/PCS.

Q3: Where is the Permanent Magnet AC Motor from?

A3: The Permanent Magnet AC Motor is from China.

Q4: How long is the delivery time?

A4: The delivery time is 7-15 work days.

Q5: What payment terms do you accept?

A5: We accept L/C,T/T payment terms.
