FRP Variable Frequency Centrifugal Exhaust Fan Permanent Magnet High Air Volume

  • FRP Variable Frequency Centrifugal Exhaust Fan Permanent Magnet High Air Volume
  • FRP Variable Frequency Centrifugal Exhaust Fan Permanent Magnet High Air Volume
Place of Origin China
Brand Name Xicheng
Model Number XC080-3
Minimum Order Quantity 1PCS
Price $860-2390/PCS
Delivery Time 7-15 work days
Supply Ability 300PCS 20-30work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

FRP Centrifugal Exhaust Fan

,

Variable Frequency Centrifugal Exhaust Fan

,

industrial suction fan High Air Volume
You can tick the products you need and communicate with us in the message board.
Type XC030-1 XC030-2 XC040-1 XC040-2 XC040-3 XC040-4 XC050-1 XC050-2 XC050-3 XC050-4 XC060-1 XC060-2 XC060-3 XC060-4 XC070-2 XC070-3 XC070-4 XC080-1 XC080-2 XC080-3 XC080-4
Air inlet 450 450 600 600 600 600 750 750 750 750 900 900 900 900 1050 1050 1050 1200 1200 1200 1200
air outlet 410 410 550 550 550 550 680 680 680 680 820 820 820 820 940 940 940 1140 1140 1140 1140
power （Kw) 5.5 7.5 5.5 7.5 11 15 11 15 18.5 22 18.5 22 30 37 30 37 45 37 45 55 75
Air volume (m³/H） 7800 9000 12000 13800 15600 18000 20000 24000 27000 30000 36000 42000 48000 54000 57000 60000 66000 72000 78000 84000 90000
wind presssure（Pa） 1800 2000 1400 1600 1800 2000 1200 1400 1600 1800 1400 1600 1800 2000 1600 1800 2000 1600 1800 2000 2200
speed （r/min） 2150 2300 1620 1710 1825 2050 1297 1460 1550 1735 1175 1235 1470 1550 1050 1200 1350 1000 1100 1200 1280
Leave a Message
Type XC030-1 XC030-2 XC040-1 XC040-2 XC040-3 XC040-4 XC050-1 XC050-2 XC050-3 XC050-4 XC060-1 XC060-2 XC060-3 XC060-4 XC070-2 XC070-3 XC070-4 XC080-1 XC080-2 XC080-3 XC080-4
Product Description

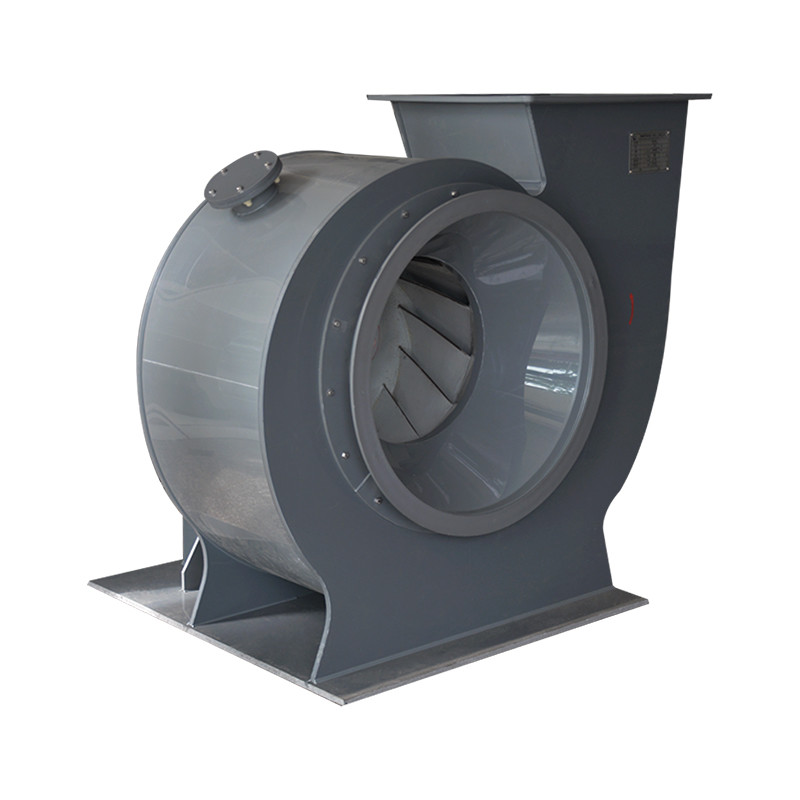

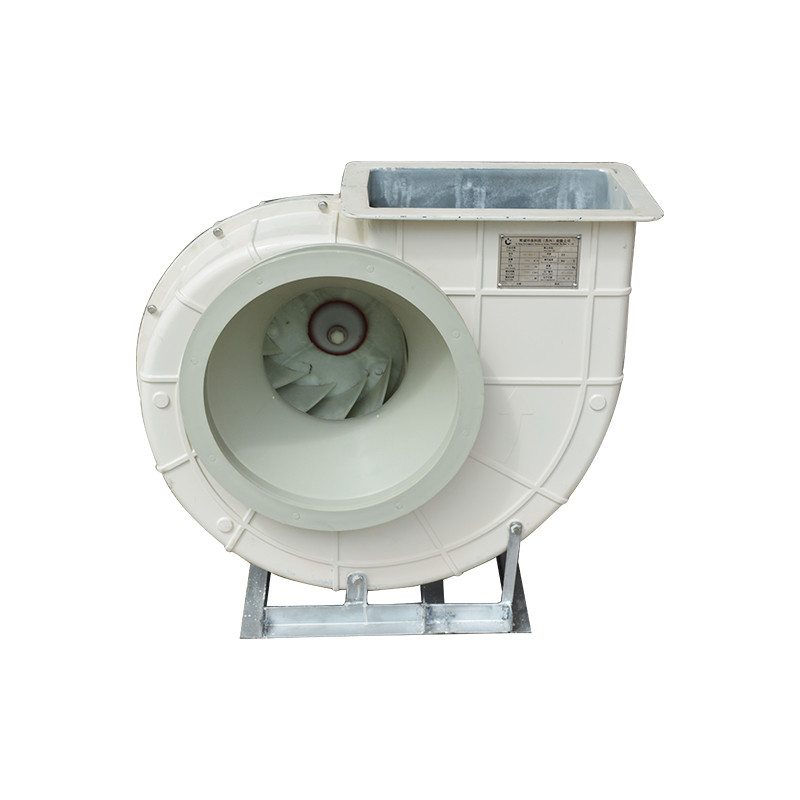

    FRP variable frequency permanent magnet centrifugal fan High air volume 75kw for industry



The driver is integrated into the motor, in addition to meeting the drive needs of the permanent magnet motor, the chip in the driver still has a certain amount of spare computing power, and can be integrated into the driver according to the needs of customers.



    For example, pressure sensor, temperature sensor, vibration sensor, remote control, display screen, etc., this is a set of closed-loop fan energy saving system, so that the fan system becomes more intelligent, and the energy saving effect is also improved again.

FRP Variable Frequency Centrifugal Exhaust Fan Permanent Magnet High Air Volume 0

FRP Variable Frequency Centrifugal Exhaust Fan Permanent Magnet High Air Volume 1

FRP Variable Frequency Centrifugal Exhaust Fan Permanent Magnet High Air Volume 2
