1.5 - 7.5Kw Centrifugal Suction Fan Powerful 1000 - 1500Pa Wind Pressure

  • 1.5 - 7.5Kw Centrifugal Suction Fan Powerful 1000 - 1500Pa Wind Pressure
  • 1.5 - 7.5Kw Centrifugal Suction Fan Powerful 1000 - 1500Pa Wind Pressure
  • 1.5 - 7.5Kw Centrifugal Suction Fan Powerful 1000 - 1500Pa Wind Pressure
Place of Origin China
Brand Name Xicheng
Model Number 5#
Minimum Order Quantity 1PCS
Price $360-1320/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 300PCS 20-30work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 1.5~7.5Kw Outer Diameter Of Air Inlet 415~700mm
Inner Diameter Of Air Inlet 315~600mm Type Permanent Magnet Variable Frequency Centrifugal Fan
Impeller Material PP/FRP Inner Diameter Of Air Outlet 315~600mm
Outer Diameter Of Air Outlet 415~700mm Air Volume 2400~11000m³/H
Highlight

Centrifugal Suction Fan 1000Pa

,

Centrifugal Suction Fan 1500Pa

,

7.5Kw industrial centrifugal blower fan
You can tick the products you need and communicate with us in the message board.
Type 3# 3# 3.6# 3.6# 4# 4# 4# 5# 5# 5# 6# 6#
Power （Kw） 1.5 1.5 2.2 2.2 3 4 3 7.5 5.5 4 5.5 7.5
Speed （r/min） 2900 3200 2900 3000 2750 2900 3200 2900 2415 1800 1450 2070
Impeller material PP PP PP PP PP FRP FRP FRP FRP PP PP FRP
Air volume (m³/H） 2400 2700 2600 2800 4500 5500 5000 10000 7000 9000 8000 11000
Wind presssure （Pa） 1000 1200 1200 1200 1200 1300 1300 1500 1500 1500 1000 1500
Air inlet 315-415 315-415 355-455 355-455 400-500 400-500 400-500 500-600 500-600 500-600 600-700 600-700
Air outlet 315-415 315-415 355-455 355-455 400-500 400-500 400-500 500-600 500-600 500-600 600-700 600-700
Leave a Message
Type 3# 3# 3.6# 3.6# 4# 4# 4# 5# 5# 5# 6# 6#
Product Description

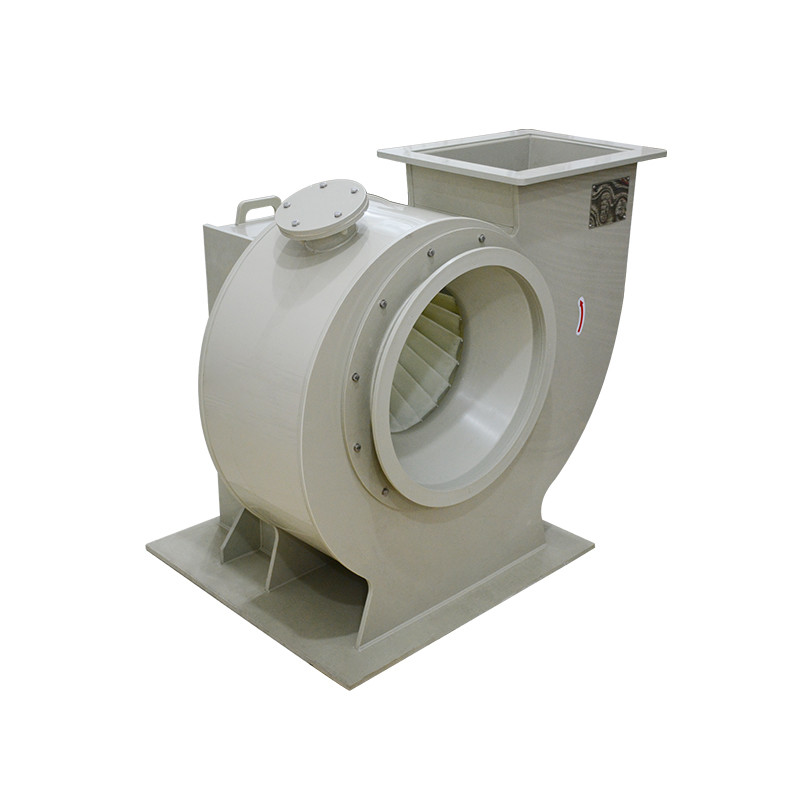

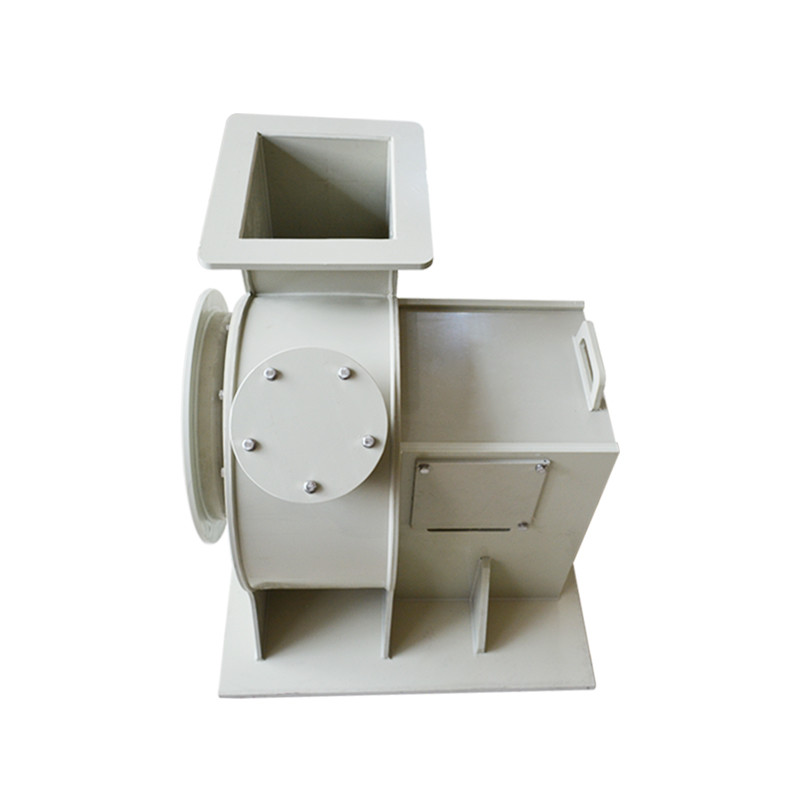

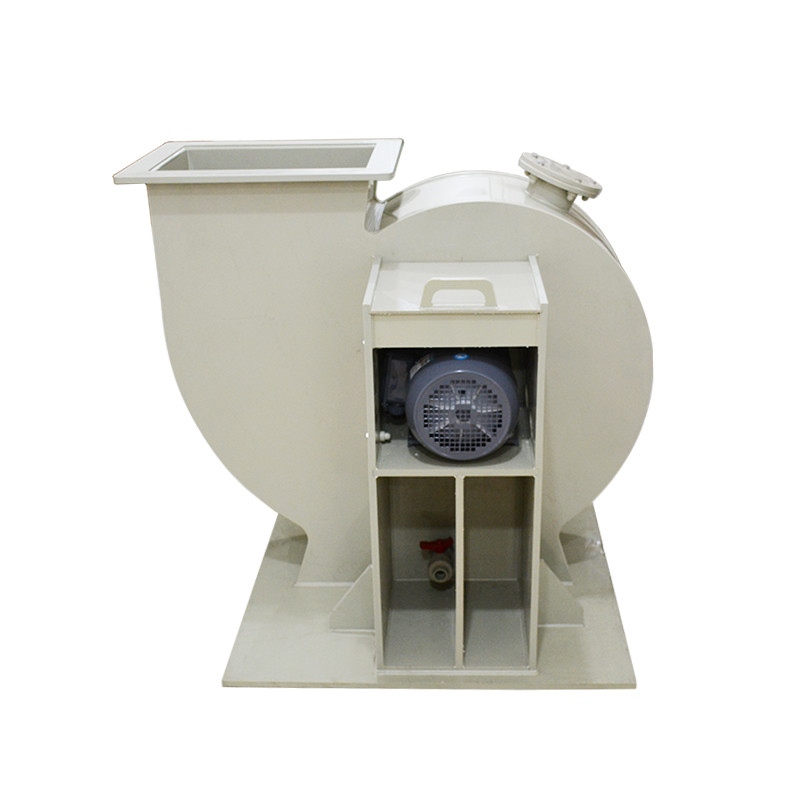

1.5-7.5Kw Centrifugal Suction Fan Efficient and Powerful with 1000-1500Pa Wind Pressure

Product Description:

The Permanent Magnet Centrifugal Suction Fan is a reliable and powerful fanning machine. With its durable impeller material of PP/FRP, it has an outer diameter of air inlet ranging from 415 to 700mm, and can generate wind pressure of 1000 to 1500Pa. It is capable of providing air volume from 2400 to 11000m³/H, and can reach speed from 1450 to 3200r/min. It is an ideal choice for those needing a powerful and reliable fanning machine.



Features:

The driver is integrated into the motor, in addition to meeting the drive needs of the permanent magnet motor, the chip in the driver still has a certain amount of spare computing power, and can be integrated into the driver according to the needs of customers.

For example, pressure sensor, temperature sensor, vibration sensor, remote control, display screen, etc., this is a set of closed-loop fan energy saving system, so that the fan system becomes more intelligent, and the energy saving effect is also improved again.



Technical Parameters:

Item Parameter
Type Permanent Magnet Variable Frequency Centrifugal Fan
Inner diameter of air inlet 315~600mm
Outer diameter of air inlet 415~700mm
Inner diameter of air outlet 315~600mm
Outer diameter of air outlet 415~700mm
Impeller material PP/FRP
Power 1.5~7.5Kw
Air volume 2400~11000m³/H
Wind Presssure 1000~1500Pa
Speed 1450~3200r/min


Applications:

Xicheng's permanent magnet centrifugal suction fan, model 5#, is an ideal choice for a wide range of applications. With its inner diameter of air inlet ranging from 315 to 600mm, speed from 1450 to 3200r/min, outer diameter of air inlet from 415 to 700mm, wind pressure from 1000 to 1500Pa, and outer diameter of air outlet from 415 to 700mm, this fan is designed for excellent performance and reliability. And with a minimum order quantity of 1PCS, a competitive price range from $360 to 1320/PCS, and a delivery time of 7-15 work days, this fan is sure to meet your needs. Moreover, Xicheng offers a supply ability of 300PCS 20-30 work days and has flexible payment terms of L/C and T/T.



Support and Services:

Centrifugal Suction Fan Technical Support & Services

We are committed to providing our customers with the highest quality of technical support and service for the Centrifugal Suction Fan. Our team of experienced technicians is always available to provide assistance with installation, maintenance, and troubleshooting.

  • Installation Assistance: Our technicians can provide expert advice and assistance with the installation and setup of your Centrifugal Suction Fan.
  • Troubleshooting: If you experience any problems with your Centrifugal Suction Fan, our technicians can help diagnose the issue and provide solutions.

For more information about our technical support and services for the Centrifugal Suction Fan, please contact us today.

1.5 - 7.5Kw Centrifugal Suction Fan Powerful 1000 - 1500Pa Wind Pressure 01.5 - 7.5Kw Centrifugal Suction Fan Powerful 1000 - 1500Pa Wind Pressure 11.5 - 7.5Kw Centrifugal Suction Fan Powerful 1000 - 1500Pa Wind Pressure 2

FAQ:

Q: What is the brand name of the Centrifugal Suction Fan?
A: The brand name of the Centrifugal Suction Fan is Xicheng.
Q: What is the model number of the Centrifugal Suction Fan?
A: The model number of the Centrifugal Suction Fan is 5#.
Q: Where is the Centrifugal Suction Fan manufactured?
A: The Centrifugal Suction Fan is manufactured in China.
Q: What is the minimum order quantity for the Centrifugal Suction Fan?
A: The minimum order quantity for the Centrifugal Suction Fan is 1PCS.
Q: What is the price of the Centrifugal Suction Fan?
A: The price of the Centrifugal Suction Fan is $360-1320/PCS.
Q: How long does it take for delivery of the Centrifugal Suction Fan?
A: It takes 7-15 work days for delivery of the Centrifugal Suction Fan.
Q: What are the payment terms for the Centrifugal Suction Fan?
A: The payment terms for the Centrifugal Suction Fan are L/C and T/T.
Q: How many Centrifugal Suction Fans can be supplied?
A: 300PCS of Centrifugal Suction Fans can be supplied within 20-30 work days.
Tags:

Centrifugal Suction Fan 1500Pa

Centrifugal Suction Fan 1000Pa

Centrifugal Suction Fan 5.5Kw
