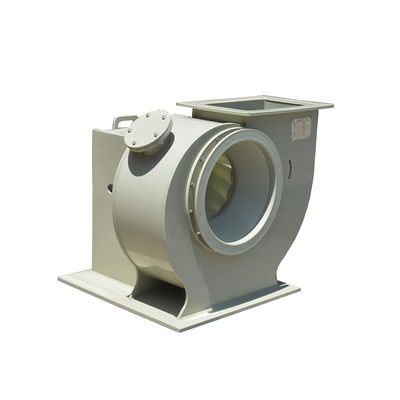

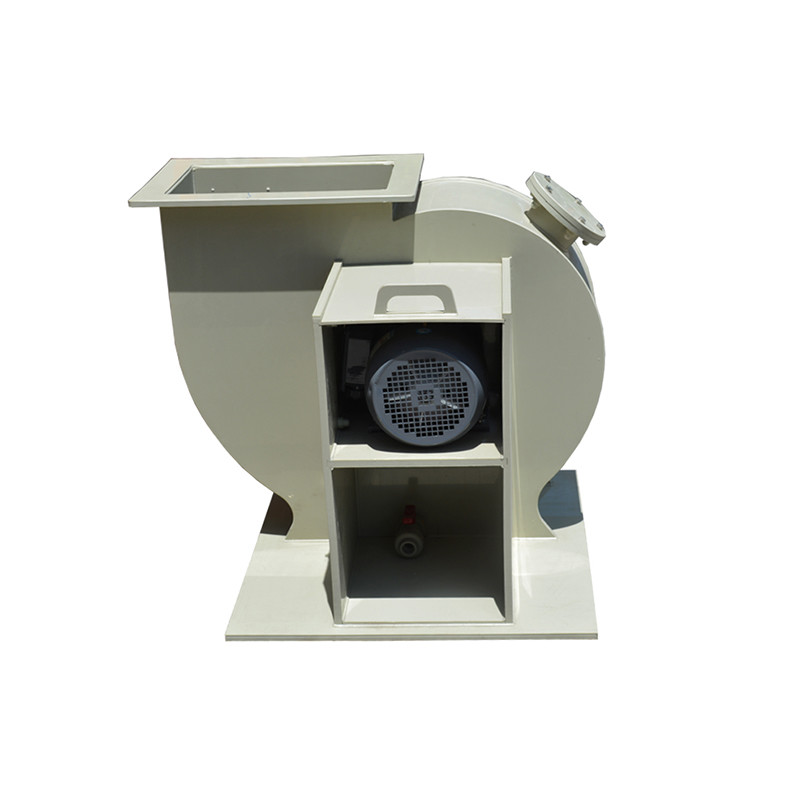

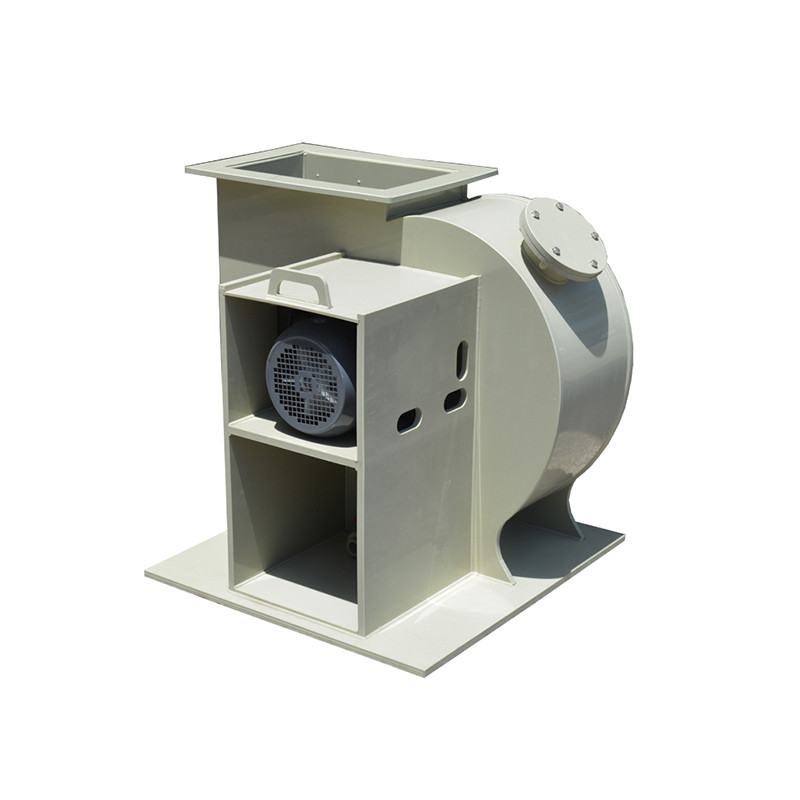

Permanent Magnet Centrifugal Suction Fan Blower 5.5Kw 380V For Industrial Plants

  • Permanent Magnet Centrifugal Suction Fan Blower 5.5Kw 380V For Industrial Plants
  • Permanent Magnet Centrifugal Suction Fan Blower 5.5Kw 380V For Industrial Plants
  • Permanent Magnet Centrifugal Suction Fan Blower 5.5Kw 380V For Industrial Plants
Place of Origin China
Brand Name Xicheng
Model Number 5#
Minimum Order Quantity 1PCS
Price $360-1320/PCS
Delivery Time 7-15 work days
Supply Ability 300PCS 20-30work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Permanent magnet Centrifugal Suction Fan

,

Centrifugal Suction Fan 5.5Kw

,

centrifugal suction blower For industrial
You can tick the products you need and communicate with us in the message board.
Type 3# 3# 3.6# 3.6# 4# 4# 4# 5# 5# 5# 6# 6#
power （Kw） 1.5 1.5 2.2 2.2 3 4 3 7.5 5.5 4 5.5 7.5
speed （r/min） 2900 3200 2900 3000 2750 2900 3200 2900 2415 1800 1450 2070
Impeller material PP PP PP PP PP FRP FRP FRP FRP PP PP FRP
Air volume (m³/H） 2400 2700 2600 2800 4500 5500 5000 10000 7000 9000 8000 11000
wind presssure （Pa） 1000 1200 1200 1200 1200 1300 1300 1500 1500 1500 1000 1500
Air inlet 315-415 315-415 355-455 355-455 400-500 400-500 400-500 500-600 500-600 500-600 600-700 600-700
air outlet 315-415 315-415 355-455 355-455 400-500 400-500 400-500 500-600 500-600 500-600 600-700 600-700
Leave a Message
Type 3# 3# 3.6# 3.6# 4# 4# 4# 5# 5# 5# 6# 6#
Product Description

     Xicheng permanent magnet fan can limit the power limit of the motor through the driver, so that the motor always maintains a high efficiency working range. In the case of low load rate, the efficiency and power factor reduction of permanent magnet motor is very small, and it can still maintain high efficiency within the larger load variation range, and the efficiency range is wider. Therefore, compared with the asynchronous motor, the permanent magnet motor can have a better match, the same working condition, the same speed, the permanent magnet motor can choose to be 1 level smaller than the asynchronous motor, and the efficiency is higher.



    For example, under the same working condition, the useful work done by the 15KW permanent magnet motor is basically the same as that done by the 22KW three-phase asynchronous motor, and even more efficient.

Permanent Magnet Centrifugal Suction Fan Blower 5.5Kw 380V For Industrial Plants 0Permanent Magnet Centrifugal Suction Fan Blower 5.5Kw 380V For Industrial Plants 1
