Permanent Magnet Centrifugal Suction Blower 1500 - 7500W Industrial Blower Fan

  • Permanent Magnet Centrifugal Suction Blower 1500 - 7500W Industrial Blower Fan
  • Permanent Magnet Centrifugal Suction Blower 1500 - 7500W Industrial Blower Fan
  • Permanent Magnet Centrifugal Suction Blower 1500 - 7500W Industrial Blower Fan
Place of Origin China
Brand Name Xicheng
Model Number 5#
Minimum Order Quantity 1PCS
Price $360-1320/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 300PCS 20-30work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Outer Diameter Of Air Inlet 415~700mm Inner Diameter Of Air Inlet 315~600mm
Speed 1450~3200r/min Inner Diameter Of Air Outlet 315~600mm
Outer Diameter Of Air Outlet 415~700mm Power 1.5~7.5Kw
Impeller Material PP/FRP Air Volume 2400~11000m³/H
Highlight

heavy duty industrial exhaust fan 1500W

,

heavy duty industrial exhaust fan 7500W

,

FRP Impeller industrial blower fan
You can tick the products you need and communicate with us in the message board.
Type 3# 3# 3.6# 3.6# 4# 4# 4# 5# 5# 5# 6# 6#
Power （Kw） 1.5 1.5 2.2 2.2 3 4 3 7.5 5.5 4 5.5 7.5
Speed （r/min） 2900 3200 2900 3000 2750 2900 3200 2900 2415 1800 1450 2070
Impeller material PP PP PP PP PP FRP FRP FRP FRP PP PP FRP
Air volume (m³/H） 2400 2700 2600 2800 4500 5500 5000 10000 7000 9000 8000 11000
Wind presssure （Pa） 1000 1200 1200 1200 1200 1300 1300 1500 1500 1500 1000 1500
Air inlet 315-415 315-415 355-455 355-455 400-500 400-500 400-500 500-600 500-600 500-600 600-700 600-700
Air outlet 315-415 315-415 355-455 355-455 400-500 400-500 400-500 500-600 500-600 500-600 600-700 600-700
Leave a Message
Type 3# 3# 3.6# 3.6# 4# 4# 4# 5# 5# 5# 6# 6#
Product Description

Powerful Performance Permanent Magnet Centrifugal Suction Blower with 1.5-7.5Kw Power

Product Description:

The Permanent Magnet Centrifugal Suction Fan is a variable frequency centrifugal fan that can provide a wide range of air volume and power. With a speed range of 1450-3200r/min, an air volume range of 2400-11000m³/H, a power range of 1.5-7.5Kw and an outer diameter of air outlet range of 415-700mm, this fan is perfect for a variety of applications. It is designed with a permanent magnet motor, ensuring high efficiency and reliability. It is also simple to install and maintain, and the variable speed enables it to adjust the air volume and pressure for various needs. This fan is the perfect choice for those who require a reliable and energy-efficient solution.


Features:



Xicheng permanent magnet fan can limit the power limit of the motor through the driver, so that the motor always maintains a high efficiency working range. In the case of low load rate, the efficiency and power factor reduction of permanent magnet motor is very small, and it can still maintain high efficiency within the larger load variation range, and the efficiency range is wider. Therefore, compared with the asynchronous motor, the permanent magnet motor can have a better match, the same working condition, the same speed, the permanent magnet motor can choose to be 1 level smaller than the asynchronous motor, and the efficiency is higher.

For example, under the same working condition, the useful work done by the 15KW permanent magnet motor is basically the same as that done by the 22KW three-phase asynchronous motor, and even more efficient.





Technical Parameters:

Product Attributes Value
Outer diameter of air outlet 415~700mm
Inner diameter of air inlet 315~600mm
Wind Pressure 1000~1500Pa
Air volume 2400~11000m³/H
Power 1.5~7.5Kw
Outer diameter of air inlet 415~700mm
Impeller material PP/FRP
Speed 1450~3200r/min
Inner diameter of air outlet 315~600mm
Type Permanent Magnet Variable Frequency Centrifugal Fan


Applications:

Xicheng Permanent Magnet Centrifugal Suction Machine 5# is the best choice for various industrial applications. Made in China, the unit comes with a minimum order quantity of 1PCS and the price ranging from $360-1320/PCS. The delivery time is 7-15 working days and payment can be made via L/C, T/T. Xicheng 5# has a supply ability of 300PCS in a period of 20-30 working days. Its impeller material is PP/FRP, wind pressure is 1000-1500Pa, power is 1.5-7.5Kw, air volume is 2400-11000m³/H and outer diameter of air inlet is 415-700mm. Xicheng 5# Permanent Magnet Centrifugal Suction Ventilator is the perfect solution for any industrial ventilation needs.



Support and Services:

Technical Support and Service for Centrifugal Suction Fan

We offer professional technical support and service for our Centrifugal Suction Fans. Our technical staff are knowledgeable and experienced in troubleshooting and resolving any issues that may arise. We can provide assistance with installation, regular maintenance, and repair of the fan in the event of a malfunction.

We also provide spare parts and replacement components for our Centrifugal Suction Fans, ensuring that your fan remains in working order. We are committed to providing prompt and reliable service, so that your fan can be kept running and maintained in good condition.

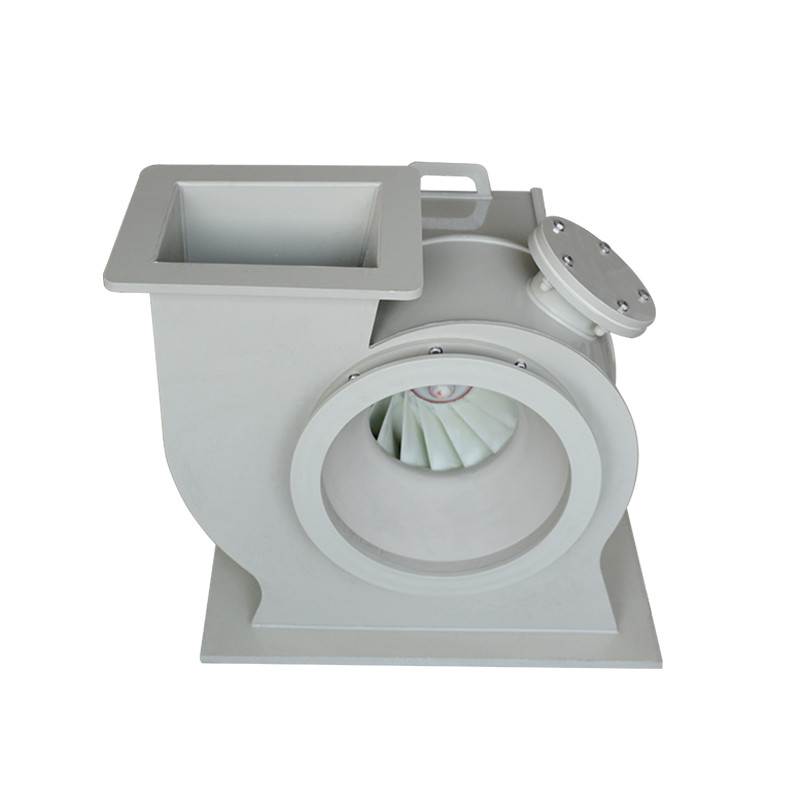

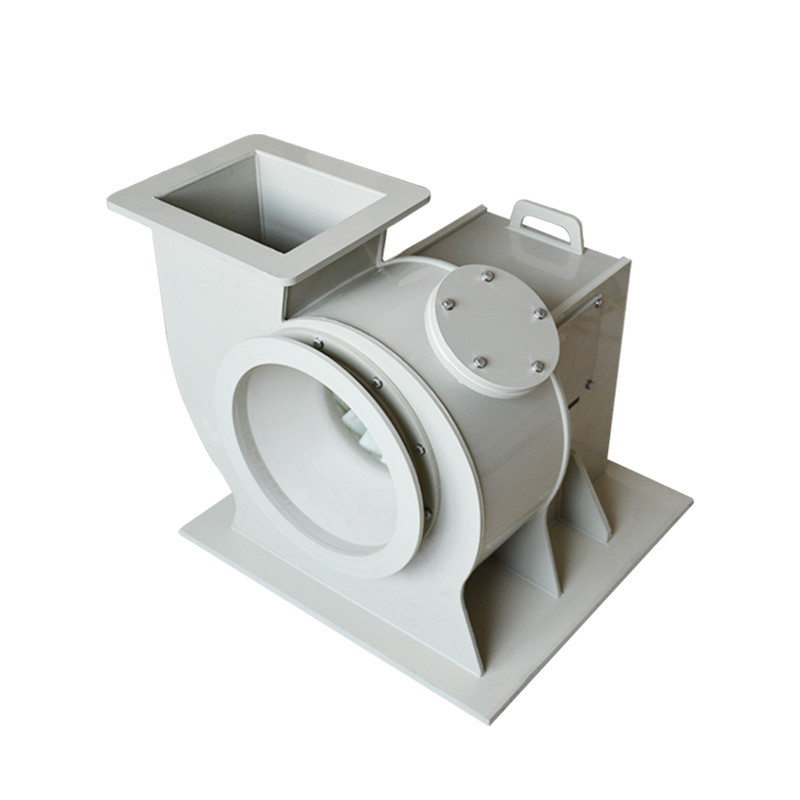

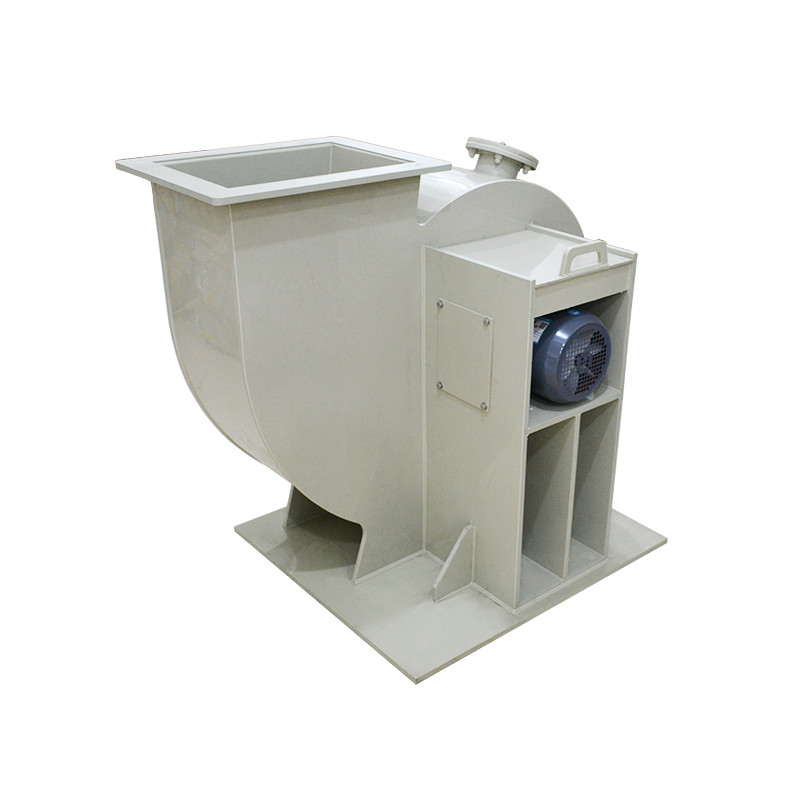

Permanent Magnet Centrifugal Suction Blower 1500 - 7500W Industrial Blower Fan 0Permanent Magnet Centrifugal Suction Blower 1500 - 7500W Industrial Blower Fan 1Permanent Magnet Centrifugal Suction Blower 1500 - 7500W Industrial Blower Fan 2

FAQ:

  • Q: What is the Brand Name of the Centrifugal Suction Fan?
    A: The Brand Name of the Centrifugal Suction Fan is Xicheng.
  • Q: What is the Model Number for the Centrifugal Suction Fan?
    A: The Model Number for the Centrifugal Suction Fan is 5#.
  • Q: Where is the Centrifugal Suction Fan made?
    A: The Centrifugal Suction Fan is made in China.
  • Q: What is the Minimum Order Quantity for the Centrifugal Suction Fan?
    A: The Minimum Order Quantity for the Centrifugal Suction Fan is 1PCS.
  • Q: What is the Price for the Centrifugal Suction Fan?
    A: The Price for the Centrifugal Suction Fan is $360-1320/PCS.
