Permanent Magnet Centrifugal Sucked Industrial Exhaust Fan 1.5 - 7.5Kw

  • Permanent Magnet Centrifugal Sucked Industrial Exhaust Fan 1.5 - 7.5Kw
  • Permanent Magnet Centrifugal Sucked Industrial Exhaust Fan 1.5 - 7.5Kw
  • Permanent Magnet Centrifugal Sucked Industrial Exhaust Fan 1.5 - 7.5Kw
Place of Origin China
Brand Name Xicheng
Model Number 5#
Minimum Order Quantity 1PCS
Price $360-1320/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 300PCS 20-30work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 1.5~7.5Kw Impeller Material PP/FRP
Air Volume 2400~11000m³/H Outer Diameter Of Air Outlet 415~700mm
Wind Presssure 1000~1500Pa Outer Diameter Of Air Inlet 415~700mm
Inner Diameter Of Air Inlet 315~600mm Type Permanent Magnet Variable Frequency Centrifugal Fan
Highlight

Permanent Magnet industrial exhaust fan

,

industrial exhaust fan 1.5KW

,

Centrifugal Sucked Fan 7.5Kw
You can tick the products you need and communicate with us in the message board.
Type 3# 3# 3.6# 3.6# 4# 4# 4# 5# 5# 5# 6# 6#
Power （Kw） 1.5 1.5 2.2 2.2 3 4 3 7.5 5.5 4 5.5 7.5
Speed （r/min） 2900 3200 2900 3000 2750 2900 3200 2900 2415 1800 1450 2070
Impeller material PP PP PP PP PP FRP FRP FRP FRP PP PP FRP
Air volume (m³/H） 2400 2700 2600 2800 4500 5500 5000 10000 7000 9000 8000 11000
Wind presssure （Pa） 1000 1200 1200 1200 1200 1300 1300 1500 1500 1500 1000 1500
Air inlet 315-415 315-415 355-455 355-455 400-500 400-500 400-500 500-600 500-600 500-600 600-700 600-700
Air outlet 315-415 315-415 355-455 355-455 400-500 400-500 400-500 500-600 500-600 500-600 600-700 600-700
Leave a Message
Type 3# 3# 3.6# 3.6# 4# 4# 4# 5# 5# 5# 6# 6#
Product Description

Industrial Permanent Magnet Centrifugal Sucked Fan with 1.5-7.5Kw Power

Product Description:

The Permanent Magnet Centrifugal Sucking Fan is a highly efficient suction blower, which is designed for heavy-duty industrial applications. It features an inner diameter of air inlet from 315 to 600mm, a wind pressure from 1000 to 1500Pa, an outer diameter of air inlet from 415 to 700mm, an impeller material of PP/FRP, and a speed from 1450 to 3200r/min. The fan is an ideal choice for applications such as chemical, pharmaceutical, food processing and mining industries. With its superior performance, the Permanent Magnet Centrifugal Suction Blower is a great alternative to traditional Magnetic Centrifugal Suction Blower.



Features:



Xicheng permanent magnet fan can limit the power limit of the motor through the driver, so that the motor always maintains a high efficiency working range. In the case of low load rate, the efficiency and power factor reduction of permanent magnet motor is very small, and it can still maintain high efficiency within the larger load variation range, and the efficiency range is wider. Therefore, compared with the asynchronous motor, the permanent magnet motor can have a better match, the same working condition, the same speed, the permanent magnet motor can choose to be 1 level smaller than the asynchronous motor, and the efficiency is higher.

For example, under the same working condition, the useful work done by the 15KW permanent magnet motor is basically the same as that done by the 22KW three-phase asynchronous motor, and even more efficient.





Technical Parameters:

Parameter Specification
Inner diameter of air outlet 315~600mm
Air volume 2400~11000m³/H
Power 1.5~7.5Kw
Speed 1450~3200r/min
Outer diameter of air outlet 415~700mm
Impeller material PP/FRP
Outer diameter of air inlet 415~700mm
Wind Presssure 1000~1500Pa
Inner diameter of air inlet 315~600mm
Type Permanent Magnet Variable Frequency Centrifugal Fan


Applications:

The Permanent Magnet Centrifugal Suction Fanning offered by Brand Name Xicheng is an ideal choice for those who need a fan with a higher performance. The Model Number 5# is made of high quality materials with Outer diameter of air outlet and Outer diameter of air inlet ranging from 415-700mm. It also features Impeller material made of PP/FRP for increased durability. With its power ranging from 1.5-7.5Kw and speed ranging from 1450-3200r/min, this fan can be used in various applications. The order quantity is 1PCS with Price ranging from $360-1320/PCS and Delivery Time of 7-15 work days. To ensure customer satisfaction, Payment Terms of L/C and T/T and Supply Ability of 300PCS with 20-30 work days are also available.



Support and Services:

Centrifugal Suction Fan Technical Support and Service

Our technical support and service team is dedicated to providing top-notch support for our Centrifugal Suction Fans. We provide a full suite of services, including:

  • 24/7 telephone support
  • Online technical support
  • Product training and certification
  • Spare parts and accessories

We are committed to providing the best customer service and technical support possible. If you have any questions or concerns about our Centrifugal Suction Fans, please don't hesitate to contact us.

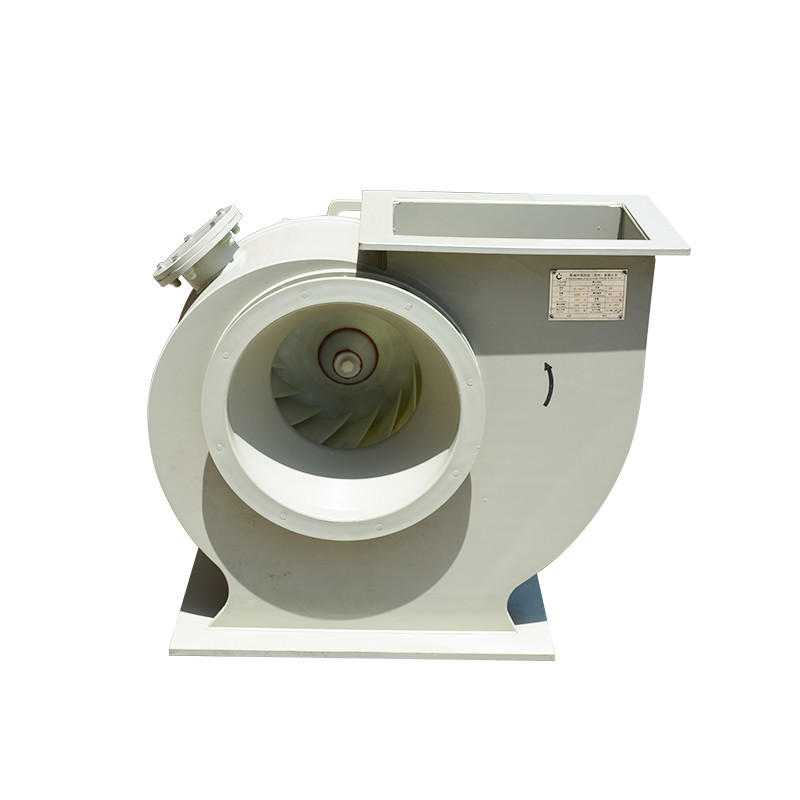

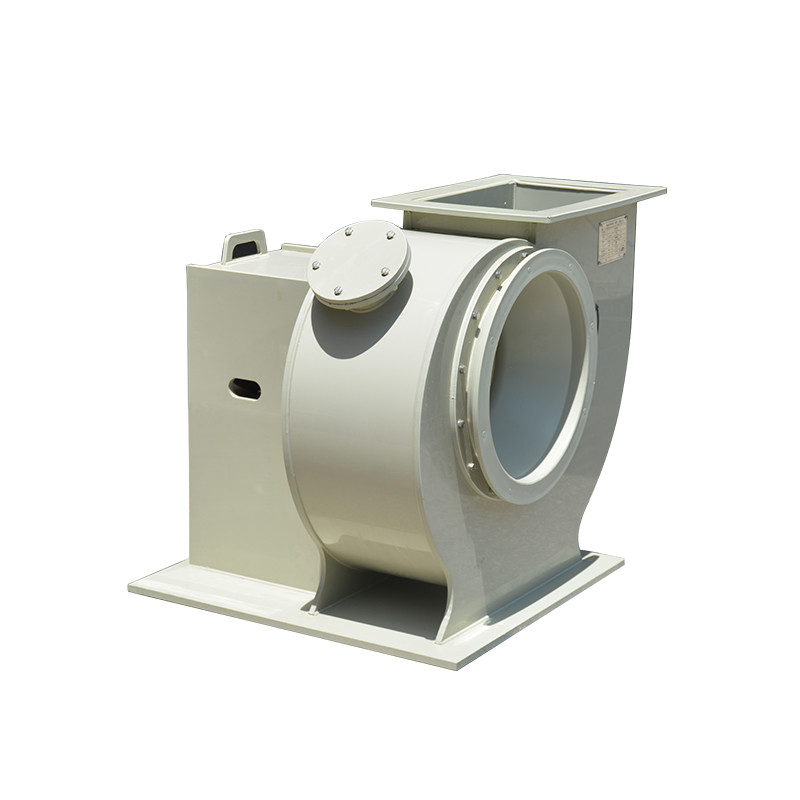

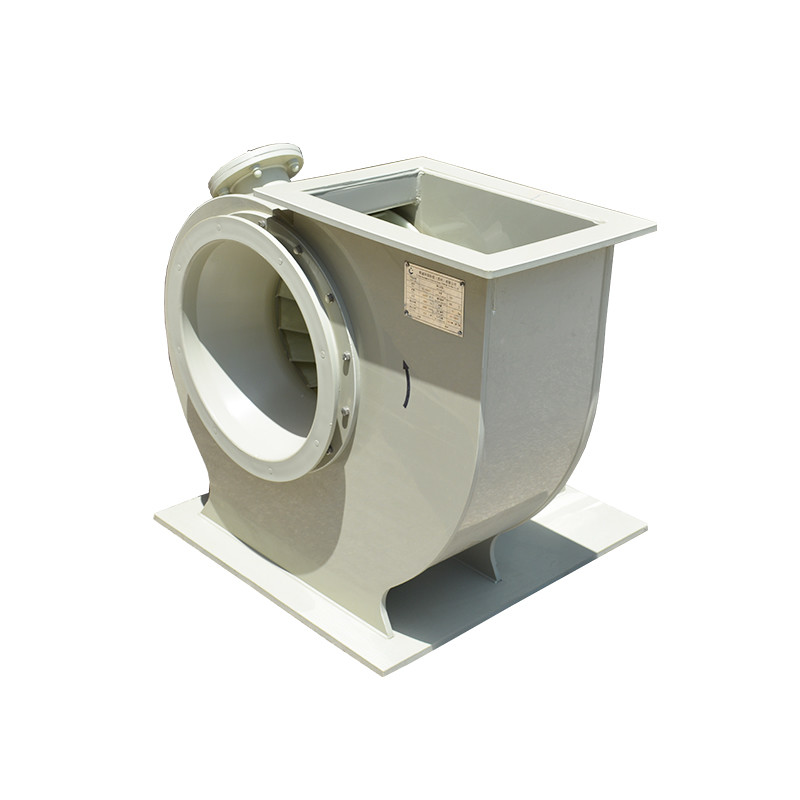

Permanent Magnet Centrifugal Sucked Industrial Exhaust Fan 1.5 - 7.5Kw 0Permanent Magnet Centrifugal Sucked Industrial Exhaust Fan 1.5 - 7.5Kw 1Permanent Magnet Centrifugal Sucked Industrial Exhaust Fan 1.5 - 7.5Kw 2

FAQ:

Q: What is the Brand Name of Centrifugal Suction Fan?
A: The Brand Name of the Centrifugal Suction Fan is Xicheng.
Q: What is the Model Number of Centrifugal Suction Fan?
A: The Model Number of the Centrifugal Suction Fan is 5#.
Q: Where is the Centrifugal Suction Fan made?
A: The Centrifugal Suction Fan is made in China.
Q: What is the Minimum Order Quantity for Centrifugal Suction Fan?
A: The Minimum Order Quantity for the Centrifugal Suction Fan is 1PCS.
Q: How much does the Centrifugal Suction Fan cost?
A: The Centrifugal Suction Fan costs between $360-1320/PCS.
