1200Pa FRP Centrifugal Fan 450 - 1200mm Air Inlet Heavy Duty Industrial Exhaust Fan
| Place of Origin | China |
|---|---|
| Brand Name | Xicheng |
| Model Number | XC080-4 |
| Minimum Order Quantity | 1PCS |
| Price | $860-2390/PCS |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 300PCS 20-30work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Air Inlet | 450~1200mm | Power | 5.5~75Kw |
|---|---|---|---|
| Air Volume | 7800~90000m³/H | Motor | Permanent Magnet Motor |
| Bracket | FRP | Air Outlet | 410~1140mm |
| Speed | 1000~2300r/min | Wind Presssure | 1200~2200Pa |
| Highlight | FRP Centrifugal Fan 450MM,FRP Centrifugal Fan 1200mm,1200Pa 2200Pa heavy duty industrial exhaust fan |
||
You can tick the products you need and communicate with us in the message board.
| Type | XC030-1 | XC030-2 | XC040-1 | XC040-2 | XC040-3 | XC040-4 | XC050-1 | XC050-2 | XC050-3 | XC050-4 | XC060-1 | XC060-2 | XC060-3 | XC060-4 | XC070-2 | XC070-3 | XC070-4 | XC080-1 | XC080-2 | XC080-3 | XC080-4 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Air inlet | 450 | 450 | 600 | 600 | 600 | 600 | 750 | 750 | 750 | 750 | 900 | 900 | 900 | 900 | 1050 | 1050 | 1050 | 1200 | 1200 | 1200 | 1200 | |
| Air outlet | 410 | 410 | 550 | 550 | 550 | 550 | 680 | 680 | 680 | 680 | 820 | 820 | 820 | 820 | 940 | 940 | 940 | 1140 | 1140 | 1140 | 1140 | |
| Power （Kw) | 5.5 | 7.5 | 5.5 | 7.5 | 11 | 15 | 11 | 15 | 18.5 | 22 | 18.5 | 22 | 30 | 37 | 30 | 37 | 45 | 37 | 45 | 55 | 75 | |
| Air volume (m³/H） | 7800 | 9000 | 12000 | 13800 | 15600 | 18000 | 20000 | 24000 | 27000 | 30000 | 36000 | 42000 | 48000 | 54000 | 57000 | 60000 | 66000 | 72000 | 78000 | 84000 | 90000 | |
| Wind presssure（Pa） | 1800 | 2000 | 1400 | 1600 | 1800 | 2000 | 1200 | 1400 | 1600 | 1800 | 1400 | 1600 | 1800 | 2000 | 1600 | 1800 | 2000 | 1600 | 1800 | 2000 | 2200 | |
| Speed （r/min） | 2150 | 2300 | 1620 | 1710 | 1825 | 2050 | 1297 | 1460 | 1550 | 1735 | 1175 | 1235 | 1470 | 1550 | 1050 | 1200 | 1350 | 1000 | 1100 | 1200 | 1280 |
Product Description

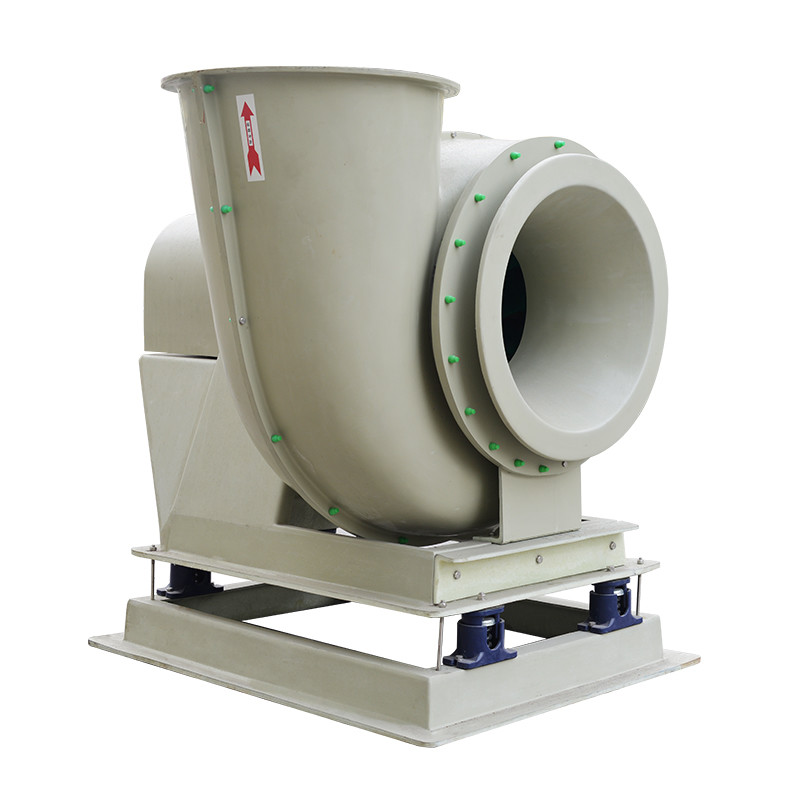

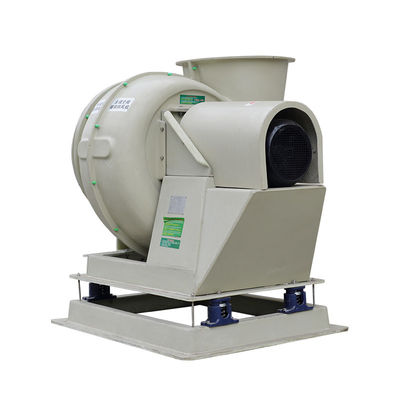

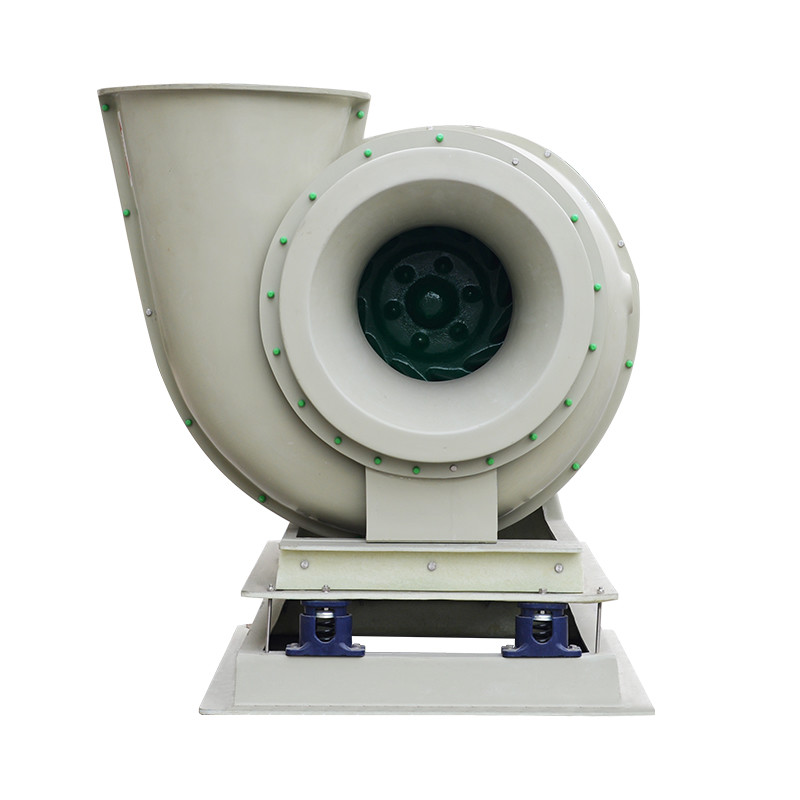

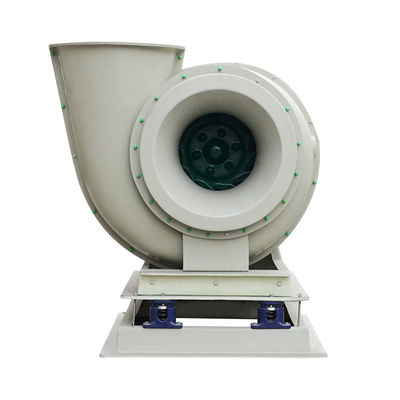

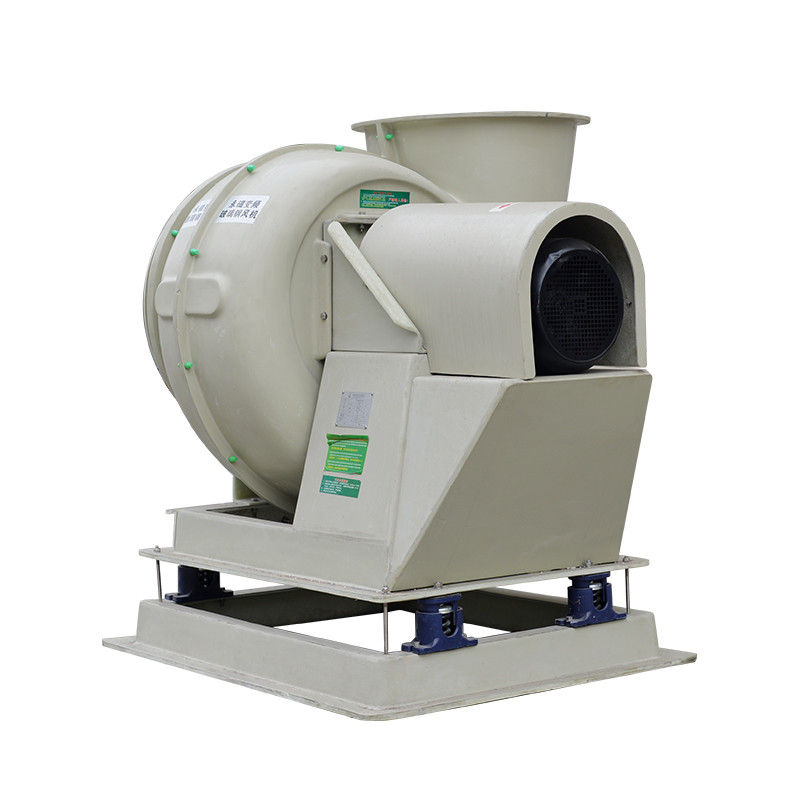

Permanent Magnet Motor FRP Centrifugal Fan with 450-1200mm Air Inlet
Product Description:
FRP Centrifugal Fan is a high-performance air blower specially designed for industrial and agricultural ventilation applications. It is equipped with a permanent magnet motor, FRP bracket and an air outlet of 410~1140mm, ensuring superior air flow movement and durability. The fan provides a wide range of air volume from 7800~90000m³/H and a wind pressure of 1200~2200Pa, making it suitable for various types of industrial and agricultural ventilation need. It is highly efficient, safe and easy to maintain, making it an ideal choice for ventilation and air circulation systems in factories, workshops, warehouses, greenhouses and other high-humidity environments.
Features:
- Motor: permanent magnet motor replaces asynchronous motor, efficiency increased by 5%-10%
- Transmission: motor and fan impeller using direct connection mode, relative to the belt, belt pulley transmission mode efficiency increased by 3-5%
- Impeller: with Xi 'an Jiaotong University joint development and design of binary and ternary impeller, the efficiency is 5-10% higher than that of ordinary impeller
- FRP bracket, corrosion resistant, acid and alkali resistant
Technical Parameters:
| Product Attribute | Value |
|---|---|
| FRP Centrifugal Exhaust Fan | |
| Air inlet | 450~1200mm |
| Speed | 1000~2300r/min |
| Power | 5.5~75Kw |
| Bracket | FRP |
| Motor | Permanent Magnet Motor |
| Air outlet | 410~1140mm |
| Wind pressure | 1200~2200Pa |
| Air volume | 7800~90000m³/H |
Work Efficiently:
At present, the problem of artificially increasing the safety factor exists in the calculation of fan motor power, and the adverse consequences such as the increase of motor model and rated power, the increase of investment, the decrease of the actual operating efficiency of the motor, and the increase of power consumption. That is, we often say "high power with low load".
Support and Services:
FRP Centrifugal Fan Technical Support and Service
At Xicheng, we provide high quality technical support and service for FRP Centrifugal Fans. Our team of experts are available to answer any questions you may have about installation, maintenance, and troubleshooting.
FAQ:
What is the brand name of the FRP Centrifugal Fan?
The brand name of the FRP Centrifugal Fan is Xicheng.
What is the model number of the FRP Centrifugal Fan?
The model number of the FRP Centrifugal Fan is XC080-4.
Where is the FRP Centrifugal Fan made?
The FRP Centrifugal Fan is made in China.
What is the minimum order quantity of the FRP Centrifugal Fan?
The minimum order quantity of the FRP Centrifugal Fan is 1PCS.
What is the price range of the FRP Centrifugal Fan?
The price range of the FRP Centrifugal Fan is $860-2390/PCS.
