7800 - 90000m3/H FRP Centrifugal Fan Air Volume Centrifugal Extractor Fan
| Place of Origin | China |
|---|---|
| Brand Name | Xicheng |
| Model Number | XC080-4 |
| Minimum Order Quantity | 1PCS |
| Price | $860-2390/PCS |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 300PCS 20-30work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Air Volume | 7800~90000m³/H | Power | 5.5~75Kw |
|---|---|---|---|
| Speed | 1000~2300r/min | Air Outlet | 410~1140mm |
| Air Inlet | 450~1200mm | Bracket | FRP |
| Wind Presssure | 1200~2200Pa | Motor | Permanent Magnet Motor |
| Highlight | 7800m3/H FRP Centrifugal Blower,90000m3/H FRP Centrifugal Blower,Air Volume centrifugal extractor fan |
||
You can tick the products you need and communicate with us in the message board.
| Type | XC030-1 | XC030-2 | XC040-1 | XC040-2 | XC040-3 | XC040-4 | XC050-1 | XC050-2 | XC050-3 | XC050-4 | XC060-1 | XC060-2 | XC060-3 | XC060-4 | XC070-2 | XC070-3 | XC070-4 | XC080-1 | XC080-2 | XC080-3 | XC080-4 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Air inlet | 450 | 450 | 600 | 600 | 600 | 600 | 750 | 750 | 750 | 750 | 900 | 900 | 900 | 900 | 1050 | 1050 | 1050 | 1200 | 1200 | 1200 | 1200 | |
| Air outlet | 410 | 410 | 550 | 550 | 550 | 550 | 680 | 680 | 680 | 680 | 820 | 820 | 820 | 820 | 940 | 940 | 940 | 1140 | 1140 | 1140 | 1140 | |
| Power （Kw) | 5.5 | 7.5 | 5.5 | 7.5 | 11 | 15 | 11 | 15 | 18.5 | 22 | 18.5 | 22 | 30 | 37 | 30 | 37 | 45 | 37 | 45 | 55 | 75 | |
| Air volume (m³/H） | 7800 | 9000 | 12000 | 13800 | 15600 | 18000 | 20000 | 24000 | 27000 | 30000 | 36000 | 42000 | 48000 | 54000 | 57000 | 60000 | 66000 | 72000 | 78000 | 84000 | 90000 | |
| Wind presssure（Pa） | 1800 | 2000 | 1400 | 1600 | 1800 | 2000 | 1200 | 1400 | 1600 | 1800 | 1400 | 1600 | 1800 | 2000 | 1600 | 1800 | 2000 | 1600 | 1800 | 2000 | 2200 | |
| Speed （r/min） | 2150 | 2300 | 1620 | 1710 | 1825 | 2050 | 1297 | 1460 | 1550 | 1735 | 1175 | 1235 | 1470 | 1550 | 1050 | 1200 | 1350 | 1000 | 1100 | 1200 | 1280 |
Product Description

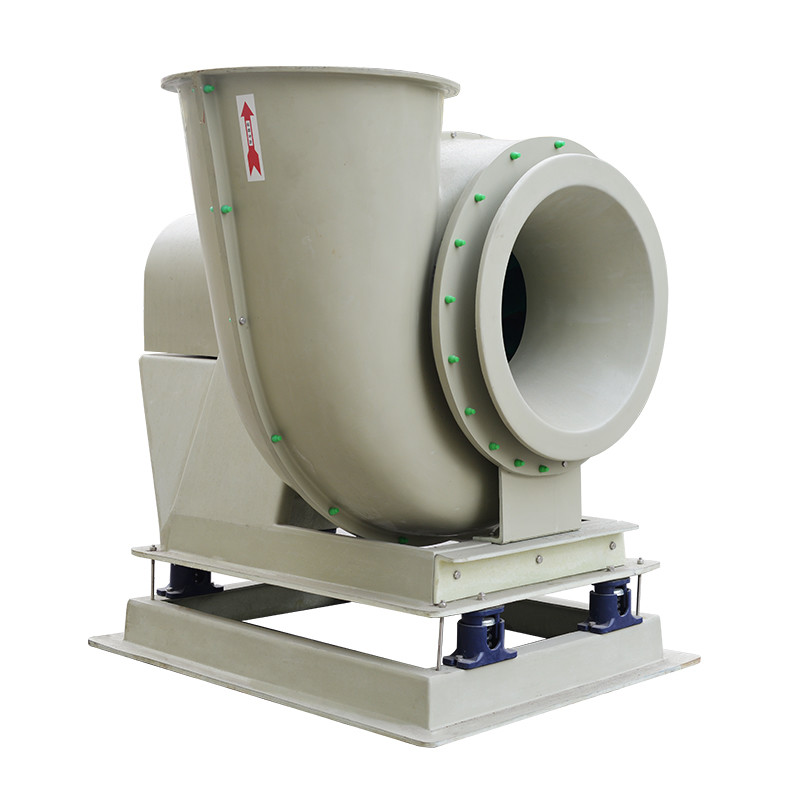

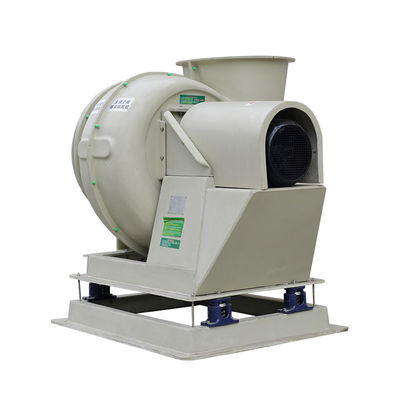

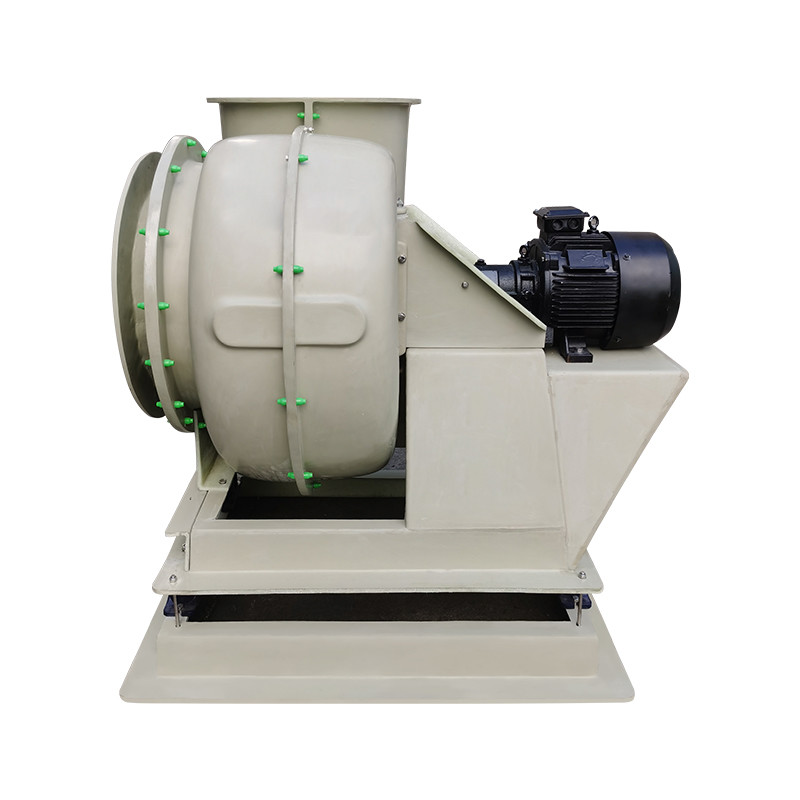

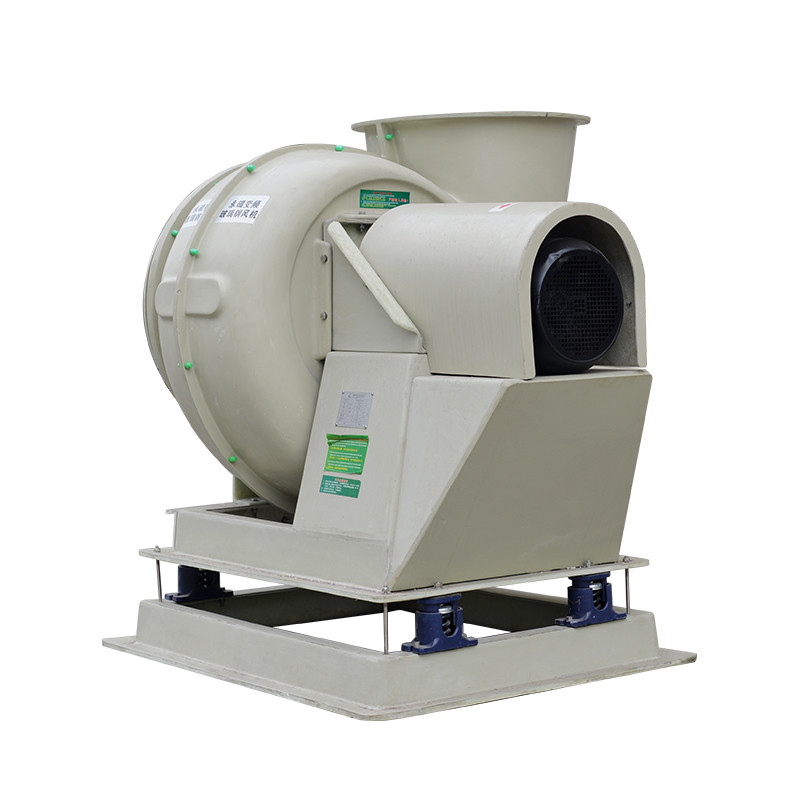

Efficient FRP Centrifugal Fan 7800-90000m³/H Air Volume Permanent Magnet Motor
Product Description:
Our FRP Centrifugal Fan is built with superior FRP material and Permanent Magnet Motor which provides reliable and efficient performance. With an air volume range of 7800 to 90000 m³/H, air inlet from 450 to 1200mm, and speed from 1000 to 2300r/min, the FRP Centrifugal Fan is the perfect choice for air conditioning, ventilation, and air purification applications. It is highly reliable and easy to maintain, and can significantly reduce the energy consumption of the system. Our FRP Centrifugal Ventilator is designed to meet the highest standards in terms of durability, performance, and safety. It is the ideal choice for any commercial or industrial application.
Features:
- Motor: permanent magnet motor replaces asynchronous motor, efficiency increased by 5%-10%
- Transmission: motor and fan impeller using direct connection mode, relative to the belt, belt pulley transmission mode efficiency increased by 3-5%
- Impeller: with Xi 'an Jiaotong University joint development and design of binary and ternary impeller, the efficiency is 5-10% higher than that of ordinary impeller
- FRP bracket, corrosion resistant, acid and alkali resistant
Technical Parameters:
| Parameter | Details |
|---|---|
| Speed | 1000~2300r/min |
| Motor | Permanent Magnet Motor |
| Air volume | 7800~90000m³/H |
| Air inlet | 450~1200mm |
| Bracket | FRP |
| Air outlet | 410~1140mm |
| Power | 5.5~75Kw |
| Wind presssure | 1200~2200Pa |
Applications:
Xicheng FRP Centrifugal Fan, model XC080-4, is a powerful ventilator that comes with a minimum order quantity of 1PCS from China. It has a speed from 1000~2300r/min, air outlet from 410~1140mm, wind pressure from 1200~2200Pa, air inlet from 450~1200mm, and air volume from 7800~90000m³/H. The price is very competitive, starting from $860-2390/PCS. Delivery time is 7-15 work days and payment terms are L/C,T/T. The supply ability is 300PCS 20-30work days. The Xicheng FRP Centrifugal Fan is ideal for many applications, from ventilation in industrial and commercial fields, to air filtration in hospitals and laboratories.
Support and Services:
FRP Centrifugal Fan Technical Support and Service
We provide comprehensive technical support and service for FRP Centrifugal Fans. Our team of experts are available to answer any questions you may have about the product, installation, and maintenance.
We are committed to providing you with the best customer service and technical support for your FRP Centrifugal Fan. If you have any questions or need assistance, please do not hesitate to contact us.
FAQ:
Q1: What is the material of FRP Centrifugal Fan?
A1: It is made of fiberglass reinforced plastic material.
Q2: What is the size of the FRP Centrifugal Fan?
A2: The size of XC080-4 is Ø800mm * 4 blades.
Q3: What is the minimum order quantity?
A3: The minimum order quantity is 1PCS.
Q4: What is the delivery time?
A4: The delivery time is 7-15 work days.
Q5: How about the payment terms?
A5: The payment terms is L/C,T/T.
