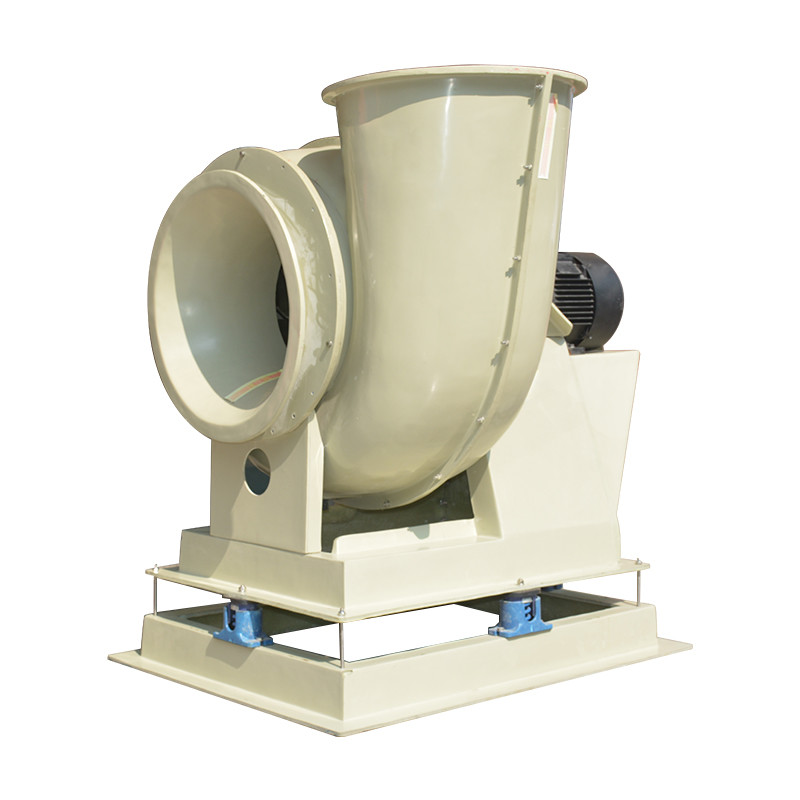

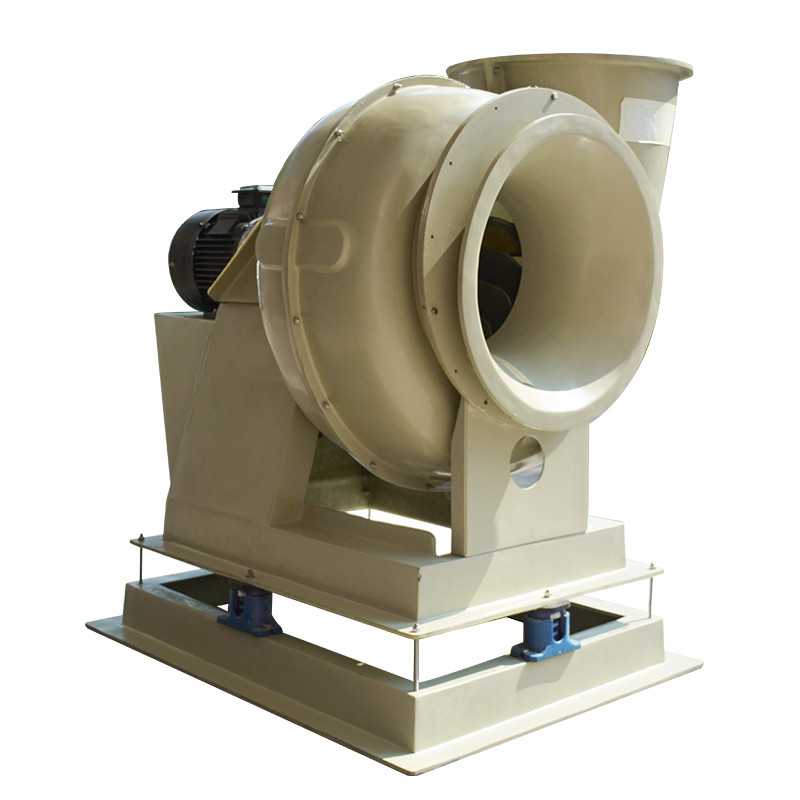

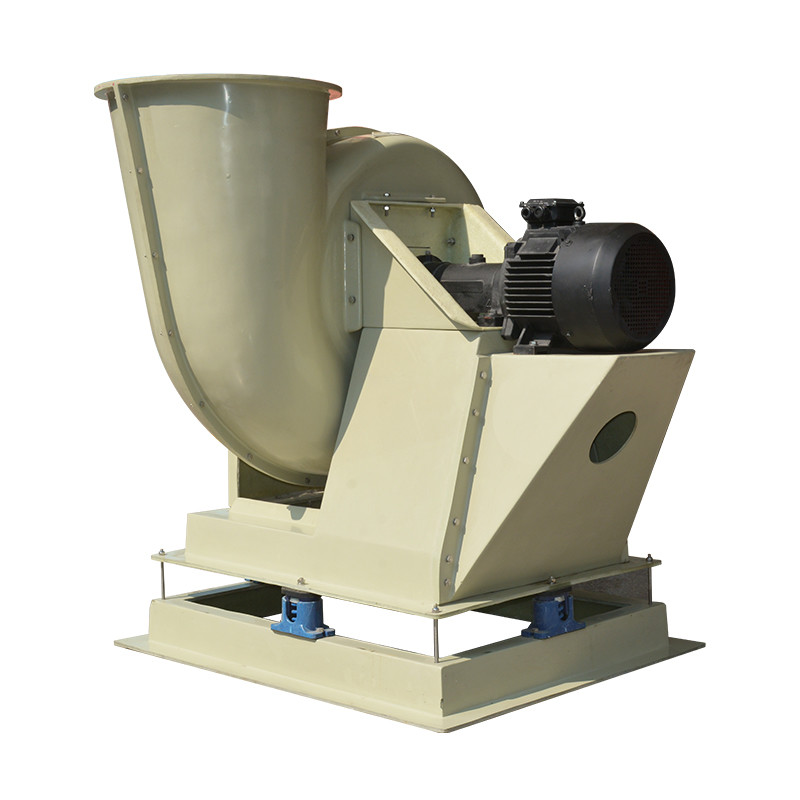

Bracket FRP Centrifugal Blower 1000 - 2300r/Min Permanent Magnet Motor

  • Bracket FRP Centrifugal Blower 1000 - 2300r/Min Permanent Magnet Motor
  • Bracket FRP Centrifugal Blower 1000 - 2300r/Min Permanent Magnet Motor
  • Bracket FRP Centrifugal Blower 1000 - 2300r/Min Permanent Magnet Motor
Place of Origin China
Brand Name Xicheng
Model Number XC080-4
Minimum Order Quantity 1PCS
Price $860-2390/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 300PCS 20-30work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Bracket FRP Air Volume 7800~90000m³/H
Wind Presssure 1200~2200Pa Power 5.5~75Kw
Speed 1000~2300r/min Air Outlet 410~1140mm
Air Inlet 450~1200mm Motor Permanent Magnet Motor
Highlight

Bracket FRP Centrifugal Blower

,

FRP Centrifugal Blower 1000r/min

,

centrifugal extractor fan 2300r/min
You can tick the products you need and communicate with us in the message board.
Type XC030-1 XC030-2 XC040-1 XC040-2 XC040-3 XC040-4 XC050-1 XC050-2 XC050-3 XC050-4 XC060-1 XC060-2 XC060-3 XC060-4 XC070-2 XC070-3 XC070-4 XC080-1 XC080-2 XC080-3 XC080-4
Air inlet 450 450 600 600 600 600 750 750 750 750 900 900 900 900 1050 1050 1050 1200 1200 1200 1200
Air outlet 410 410 550 550 550 550 680 680 680 680 820 820 820 820 940 940 940 1140 1140 1140 1140
Power （Kw) 5.5 7.5 5.5 7.5 11 15 11 15 18.5 22 18.5 22 30 37 30 37 45 37 45 55 75
Air volume (m³/H） 7800 9000 12000 13800 15600 18000 20000 24000 27000 30000 36000 42000 48000 54000 57000 60000 66000 72000 78000 84000 90000
Wind presssure（Pa） 1800 2000 1400 1600 1800 2000 1200 1400 1600 1800 1400 1600 1800 2000 1600 1800 2000 1600 1800 2000 2200
Speed （r/min） 2150 2300 1620 1710 1825 2050 1297 1460 1550 1735 1175 1235 1470 1550 1050 1200 1350 1000 1100 1200 1280
Leave a Message
Type XC030-1 XC030-2 XC040-1 XC040-2 XC040-3 XC040-4 XC050-1 XC050-2 XC050-3 XC050-4 XC060-1 XC060-2 XC060-3 XC060-4 XC070-2 XC070-3 XC070-4 XC080-1 XC080-2 XC080-3 XC080-4
Product Description

FRP Centrifugal Fan Bracket FRP with Speed 1000-2300r/min and Permanent Magnet Motor


Product Description:

The FRP Centrifugal Fan is a type of centrifugal extraction fan, ventilator and exhauster, with a permanent magnet motor and a FRP bracket. It is capable of providing a wide range of airflow, from 450mm to 1200mm, with a power range of 5.5Kw to 75Kw. Moreover, it offers a wide range of wind pressure, from 1200Pa to 2200Pa.

The FRP Centrifugal Fan is designed to be highly efficient and durable. It is perfect for a variety of industrial and commercial applications, such as ventilation, cooling, and air conditioning. It is also highly resistant to corrosion and durable, making it well-suited for use in harsh environments.

This FRP Centrifugal Fan is a reliable and cost-effective solution for industrial applications. It is easy to install and maintain, and provides a great value for money.



Features:





  • Motor: permanent magnet motor replaces asynchronous motor, efficiency increased by 5%-10%
  • Transmission: motor and fan impeller using direct connection mode, relative to the belt, belt pulley transmission mode efficiency increased by 3-5%
  • Impeller: with Xi 'an Jiaotong University joint development and design of binary and ternary impeller, the efficiency is 5-10% higher than that of ordinary impeller
  • FRP bracket, corrosion resistant, acid and alkali resistant





Technical Parameters:



Property Value
Product Name FRP Centrifugal Fan
Power 5.5~75Kw
Air volume 7800~90000m³/H
Air inlet 450~1200mm
Air outlet 410~1140mm
Wind presssure 1200~2200Pa
Bracket FRP
Speed 1000~2300r/min
Motor Permanent Magnet Motor



Applications:



Xicheng FRP Centrifugal Exhaust Fan, Model XC080-4 is a great solution for your ventilation needs. It is a durable and reliable product from China, with a minimum order quantity of 1PCS and a price ranging from $860-2390/PCS. Delivery time is 7-15 work days and payment terms are L/C,T/T. We can guarantee a supply ability of 300PCS within 20-30 work days. This fan is powered by a Permanent Magnet Motor and has an air inlet of 450~1200mm, a wind pressure of 1200~2200Pa, an air outlet of 410~1140mm, and an air volume of 7800~90000m³/H.

The Xicheng FRP Centrifugal Exhaust Fan is an ideal choice for your ventilation needs. It is made with durable and reliable materials, and its performance is second to none. We are confident that this product will exceed your expectations. Get your Xicheng FRP Centrifugal Exhaust Fan today!



Support and Services:



FRP Centrifugal Fan Technical Support and Service

We provide comprehensive technical support and service to ensure that your FRP Centrifugal Fan operates efficiently and reliably. Our team of experts can provide technical support on installation, operation, maintenance, troubleshooting, and more.

We are committed to providing the highest level of customer service and satisfaction. Our team is available 24/7 to answer any questions or concerns you may have about your FRP Centrifugal Fan.

Bracket FRP Centrifugal Blower 1000 - 2300r/Min Permanent Magnet Motor 0Bracket FRP Centrifugal Blower 1000 - 2300r/Min Permanent Magnet Motor 1Bracket FRP Centrifugal Blower 1000 - 2300r/Min Permanent Magnet Motor 2

FAQ:



  • Q: What is the brand name for this FRP Centrifugal Fan?
    A: The brand name is Xicheng.
  • Q: What is the model number for this FRP Centrifugal Fan?
    A: The model number is XC080-4.
  • Q: Where is this FRP Centrifugal Fan manufactured?
    A: This FRP Centrifugal Fan is manufactured in China.
  • Q: What is the minimum order quantity for this FRP Centrifugal Fan?
    A: The minimum order quantity is 1PCS.
  • Q: How much does this FRP Centrifugal Fan cost?
    A: The price of this FRP Centrifugal Fan is between $860-2390/PCS.
