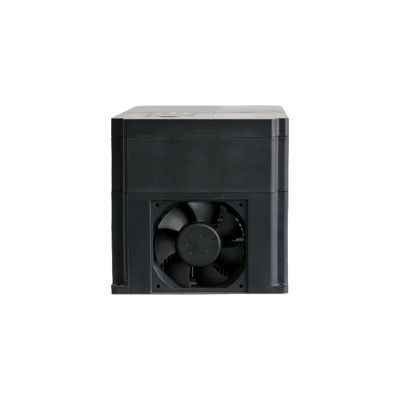

0.4KW - 5.5KW Three Phase Motor Driver Vfd 3 Phase AC 380V

  • 0.4KW - 5.5KW Three Phase Motor Driver Vfd 3 Phase AC 380V
  • 0.4KW - 5.5KW Three Phase Motor Driver Vfd 3 Phase AC 380V
  • 0.4KW - 5.5KW Three Phase Motor Driver Vfd 3 Phase AC 380V
Place of Origin China
Brand Name Xicheng
Model Number EZ680*T7.5GB
Minimum Order Quantity 1PCS
Price $52-1310/1PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 1000PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage AC 3phase 380V Voltage Frequency 50/60Hz
Output Power 400-55000W Output Current 1.5A-112A
Rated Frequency 0.0-500.0Hz Weight 0.8-15Kg
Phase Number 3
Highlight

0.4KW Three Phase Motor Driver

,

5.5KW Three Phase Motor Driver

,

vfd 3 phase 380V
You can tick the products you need and communicate with us in the message board.
Type EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ580*T2.2GB EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ680*T2.2GB EZ680*T3.7GB EZ680*T5.5GB EZ680*T7.5GB EZ680*T11GB EZ680*T15GB EZ680*T18.5GB EZ680*T22GB EZ680*T30GB EZ680*T37GB EZ680*T45GB EZ680*T55GB
Power（Kw) 0.4 0.7 1.5 2.2 0.5 0.7 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37 45 55
Input voltage(V) AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v
Output current(A) 1.5 2.1 3.8 5.1 2.3 4 7 5.1 9 13 17 25 32 37 45 60 75 91 112
Voltage frequency(HZ) 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Rated frequency(HZ) 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0
Weight(kg) 0.8 0.8 0.8 0.8 0.8 0.8 0.8 2 2 2 3.8 3.8 5.75 5.75 5.75 9.8 9.8 9.8 15
Size(mm) 84*140*100 84*140*100 84*140*100 84*140*100 84*140*100 84*140*100 84*140*100 125*185*160 125*185*160 125*185*160 160*247*183 160*247*183 208*304*192 208*304*192 208*304*192 225*360*224 225*360*224 225*360*224 295*520*270
Leave a Message
Type EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ580*T2.2GB EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ680*T2.2GB EZ680*T3.7GB EZ680*T5.5GB EZ680*T7.5GB EZ680*T11GB EZ680*T15GB EZ680*T18.5GB EZ680*T22GB EZ680*T30GB EZ680*T37GB EZ680*T45GB EZ680*T55GB
Product Description

Efficient Three-Phase Motor Driver with 400-55000W Output Power

Product Description:

The 3-Phase Motor Driver is a highly advanced motor controller designed for use in industrial applications. It is capable of operating with a voltage frequency of 50/60Hz, and a rated frequency of 0.0-500.0Hz. It features three phases, with an output current range of 1.5A-112A, and a weight range of 0.8-15Kg. This 3-Phase Motor Driver is an ideal choice for controlling three-phase motors, ensuring reliable and efficient performance. It is easy to install and use, and offers excellent protection for the motor and its components. With its high-quality construction and superior performance, the 3-Phase Motor Driver is the perfect choice for any industrial motor control system.



Technical Parameters:

Key Term Description
Three-Phase Motor Driver A motor driver designed to power three-phase motors.
Rated Frequency 0.0-500.0Hz
Voltage Frequency 50/60Hz
Weight 0.8-15Kg
Output Power 400-55000W
Phase Number 3
Input Voltage AC 3phase 380V
Output Current 1.5A-112A


Applications:

The Tri-Phase Motor Driver from Xicheng (model number EZ680*T7.5GB) is a multi-phase motor controller from China that is available for a minimum order quantity of 1PCS. Its price ranges from $52-1310/1PCS and delivery time is 7-15 work days. It accepts payment terms like L/C,T/T and it has a supply ability of 1000PCS 15-20work days. It has a rated frequency of 0.0-500.0Hz, a weight of 0.8-15Kg, a phase number of 3, an input voltage of AC 3phase 380V and a voltage frequency of 50/60Hz.



Support and Services:

Three Phase Motor Driver Technical Support and Services

We are here to provide you with technical support and services for your Three Phase Motor Driver. Our experienced staff is available to answer any questions you may have about the product and its performance.

We offer a variety of services to our customers, including:

  • Troubleshooting and diagnostics
  • Software updates and upgrades
  • Performance optimization
  • Technical advice and assistance

We strive to provide the best possible customer support and service for your Three Phase Motor Driver. If you have any questions or concerns, please do not hesitate to contact us.

0.4KW - 5.5KW Three Phase Motor Driver Vfd 3 Phase AC 380V 00.4KW - 5.5KW Three Phase Motor Driver Vfd 3 Phase AC 380V 10.4KW - 5.5KW Three Phase Motor Driver Vfd 3 Phase AC 380V 2

FAQ:

Q1: What is the Brand Name of the Three Phase Motor Driver?

A1: The Brand Name is Xicheng.

Q2: What is the Model Number of the Three Phase Motor Driver?

A2: The Model Number is EZ680*T7.5GB.

Q3: Where is the Three Phase Motor Driver made?

A3: The Three Phase Motor Driver is made in China.

Q4: What is the Minimum Order Quantity for the Three Phase Motor Driver?

A4: The Minimum Order Quantity is 1PCS.

Q5: What is the Price for the Three Phase Motor Driver?

A5: The Price for the Three Phase Motor Driver is $52-1310/1PCS.
