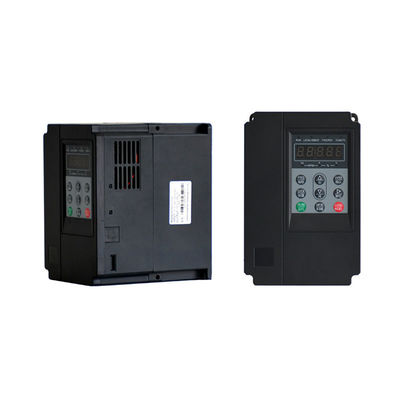

380v Motor Frequency Converter AC Driver 1.5A - 112A Adjustable Frequency Ac Drive

  • 380v Motor Frequency Converter AC Driver 1.5A - 112A Adjustable Frequency Ac Drive
  • 380v Motor Frequency Converter AC Driver 1.5A - 112A Adjustable Frequency Ac Drive
  • 380v Motor Frequency Converter AC Driver 1.5A - 112A Adjustable Frequency Ac Drive
Place of Origin China
Brand Name Xicheng
Model Number EZ680*T55GB
Minimum Order Quantity 1PCS
Price $52-1310/1PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 1000PCS 15-20wodk days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 0.4~55Kw Input Voltage AC 3phase 380v
Rated Frequency 0.0-500.0Hz Voltage Frequency 50/60Hz
Weight 0.8-15Kg Output Current 1.5A-112A
Highlight

380v Motor Frequency Converter

,

Motor Frequency Converter 1.5A

,

112A adjustable frequency ac drive
You can tick the products you need and communicate with us in the message board.
Type EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ580*T2.2GB EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ680*T2.2GB EZ680*T3.7GB EZ680*T5.5GB EZ680*T7.5GB EZ680*T11GB EZ680*T15GB EZ680*T18.5GB EZ680*T22GB EZ680*T30GB EZ680*T37GB EZ680*T45GB EZ680*T55GB
Power（Kw) 0.4 0.7 1.5 2.2 0.5 0.7 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37 45 55
Input voltage(V) AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v
Output current(A) 1.5 2.1 3.8 5.1 2.3 4 7 5.1 9 13 17 25 32 37 45 60 75 91 112
Voltage frequency(HZ) 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Rated frequency(HZ) 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0
Weight(kg) 0.8 0.8 0.8 0.8 0.8 0.8 0.8 2 2 2 3.8 3.8 5.75 5.75 5.75 9.8 9.8 9.8 15
Size(mm) 84*140*100 84*140*100 84*140*100 84*140*100 84*140*100 84*140*100 84*140*100 125*185*160 125*185*160 125*185*160 160*247*183 160*247*183 208*304*192 208*304*192 208*304*192 225*360*224 225*360*224 225*360*224 295*520*270
Leave a Message
Type EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ580*T2.2GB EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ680*T2.2GB EZ680*T3.7GB EZ680*T5.5GB EZ680*T7.5GB EZ680*T11GB EZ680*T15GB EZ680*T18.5GB EZ680*T22GB EZ680*T30GB EZ680*T37GB EZ680*T45GB EZ680*T55GB
Product Description

Achieve precise control with Variable frequency AC driver 1.5A-112A output current

Product Description:

Motor Frequency Converter is a three phase variable frequency driver, also known as Variable Frequency AC driver. It is designed to convert 50/60Hz input voltage (AC 3phase 380v) into a 0.0-500.0Hz rated frequency, with power ranging from 0.4Kw to 55Kw. The weight of this product is 0.8-15Kg, making it reliable and efficient. It is perfect for any applications that require variable frequency AC drive.



Technical Parameters:

Parameter Description
Voltage frequency 50/60Hz
Output current 1.5A-112A
Rated frequency 0.0-500.0Hz
Weight 0.8-15Kg
Power 0.4~55Kw
Input voltage AC 3phase 380v


Applications:

Xicheng EZ680*T55GB Motor Frequency Converter

Xicheng's EZ680*T55GB Motor Frequency Converter is a variable frequency AC driver designed. It offers users flexibility and reliability with a wide range of input voltage, power, rated frequency, output current and voltage frequency.

The EZ680*T55GB Motor Frequency Converter features an input voltage of AC 3phase 380v, power of 0.4~55Kw, rated frequency of 0.0-500.0Hz and output current of 1.5A-112A, with a voltage frequency of 50/60Hz. It is available for purchase with a minimum order quantity of 1PCS, priced at $52-1310 per piece, with a delivery time of 7-15 work days and payment terms of L/C, T/T. The supplier is able to deliver up to 1000PCS orders within 15-20 work days.



Support and Services:

Motor Frequency Converter Technical Support and Services

We provide comprehensive technical support and services for our Motor Frequency Converter product. Our experienced technicians are available to assist you with product installation, maintenance, troubleshooting, and repair. Whether you need assistance selecting the right product for your application, or need help getting it up and running, we can help.

Our team of experts is available to answer any questions you may have and provide the technical guidance you need to maximize your Motor Frequency Converter’s performance.

For more information about our technical support and services, please contact us.

380v Motor Frequency Converter AC Driver 1.5A - 112A Adjustable Frequency Ac Drive 0380v Motor Frequency Converter AC Driver 1.5A - 112A Adjustable Frequency Ac Drive 1380v Motor Frequency Converter AC Driver 1.5A - 112A Adjustable Frequency Ac Drive 2

FAQ:

Q1. What is Motor Frequency Converter? A1.EZ680 High-performance Vector inverter is a universal high-performance current vector inverter. It can realize the control of asynchronous motor and permanent magnet synchronous machine, It has a communication bus function, powerful. It can be used to drive textile, paper making, wire drawing, machine tools, packaging, food, fan, water pump and various kinds of automatic production equipment.
Q2. What is the Brand Name of Motor Frequency Converter? A2. The brand name of Motor Frequency Converter is Xicheng.
Q3. What is the Model Number of Motor Frequency Converter? A3. The model number of Motor Frequency Converter is EZ680*T55GB.
Q4. Where is Motor Frequency Converter manufactured? A4. Motor Frequency Converter is manufactured in China.
Q5. What is the Price and Minimum Order Quantity of Motor Frequency Converter? A5. The Price of Motor Frequency Converter is $52-1310/1PCS, and the Minimum Order Quantity is 1PCS.
