3 Phase Motor Frequency Converter Adjustable Frequency Ac Drive For 380V

  • 3 Phase Motor Frequency Converter Adjustable Frequency Ac Drive For 380V
  • 3 Phase Motor Frequency Converter Adjustable Frequency Ac Drive For 380V
  • 3 Phase Motor Frequency Converter Adjustable Frequency Ac Drive For 380V
Place of Origin China
Brand Name Xicheng
Model Number EZ680*T55GB
Minimum Order Quantity 1PCS
Price $52-1310/1PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 1000PCS 15-20wodk days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight 0.8-15Kg Rated Frequency 0.0-500.0Hz
Voltage Frequency 50/60Hz Power 0.4~55Kw
Input Voltage AC 3phase 380v Output Current 1.5A-112A
Highlight

3 Phase Motor Frequency Converter

,

Motor Frequency Converter 50Hz

,

60Hz adjustable frequency ac drive
You can tick the products you need and communicate with us in the message board.
Type EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ580*T2.2GB EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ680*T2.2GB EZ680*T3.7GB EZ680*T5.5GB EZ680*T7.5GB EZ680*T11GB EZ680*T15GB EZ680*T18.5GB EZ680*T22GB EZ680*T30GB EZ680*T37GB EZ680*T45GB EZ680*T55GB
Power（Kw) 0.4 0.7 1.5 2.2 0.5 0.7 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37 45 55
Input voltage(V) AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v
Output current(A) 1.5 2.1 3.8 5.1 2.3 4 7 5.1 9 13 17 25 32 37 45 60 75 91 112
Voltage frequency(HZ) 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Rated frequency(HZ) 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0
Weight(kg) 0.8 0.8 0.8 0.8 0.8 0.8 0.8 2 2 2 3.8 3.8 5.75 5.75 5.75 9.8 9.8 9.8 15
Size(mm) 84*140*100 84*140*100 84*140*100 84*140*100 84*140*100 84*140*100 84*140*100 125*185*160 125*185*160 125*185*160 160*247*183 160*247*183 208*304*192 208*304*192 208*304*192 225*360*224 225*360*224 225*360*224 295*520*270
Leave a Message
Type EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ580*T2.2GB EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ680*T2.2GB EZ680*T3.7GB EZ680*T5.5GB EZ680*T7.5GB EZ680*T11GB EZ680*T15GB EZ680*T18.5GB EZ680*T22GB EZ680*T30GB EZ680*T37GB EZ680*T45GB EZ680*T55GB
Product Description

Reliable and Efficient Frequency Converter for AC 3-Phase 380V 0.4-55Kw

Product Description:

The Motor Frequency Converter is a variable frequency driver for three phase AC motors, featuring a rated frequency ranging from 0.0 to 500.0Hz, an input voltage of AC 3phase 380v and a voltage frequency of 50/60Hz. It can provide an output current of 1.5A to 112A, and has a total weight of 0.8 to 15Kg. This product is perfect for motor speed control and can offer high performance and reliable operation.

The Motor Frequency Converter is designed to offer variable frequency drive for AC motors, providing precise speed control with an adjustable frequency. It's also an energy-saving product that helps reduce the power consumption of the motor. Moreover, this product is highly durable and has a long lifespan, making it a great choice for various applications.



Technical Parameters:

Product Attribute Technical Parameter
Weight 0.8-15Kg
Output current 1.5A-112A
Input voltage AC 3phase 380v
Power 0.4~55Kw
Voltage frequency 50/60Hz
Rated frequency 0.0-500.0Hz
Type Variable frequency driver, Three phase variable frequency driver, Variable frequency AC driver


Applications:

Motor Frequency Converter, also known as Variable Frequency Driver, is a brand name Xicheng product with the model number EZ680*T55GB, which is made in China. The minimum order quantity is 1PCS, with the price range of $52 - $1310/1PCS. The delivery time is 7-15 work days, and the payment terms are L/C and T/T. The supply ability is 1000PCS within 15-20 work days. The rated frequency is 0.0-500.0Hz, with the voltage frequency of 50/60Hz. The weight ranges from 0.8-15Kg, and the power is from 0.4-55Kw, with the output current from 1.5A-112A.


Support and Services:

We provide technical support and service for Motor Frequency Converter. Our dedicated technical support team is available 24/7 to answer any questions you may have. We offer online resources such as user manuals and software updates to help you get the most out of your Motor Frequency Converter. We also provide training and certification classes for technicians who need to work with Motor Frequency Converters.

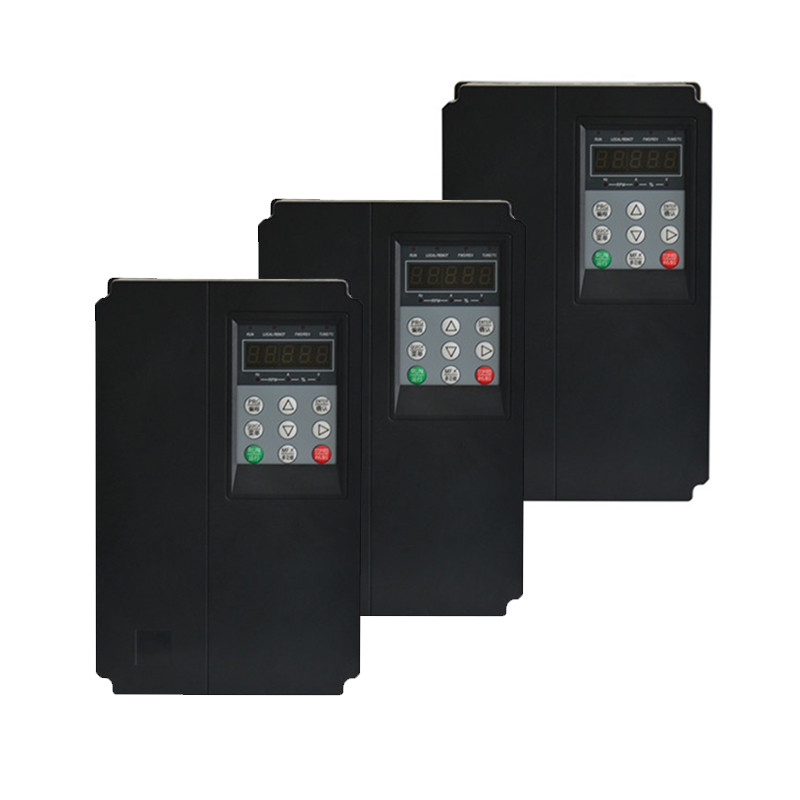

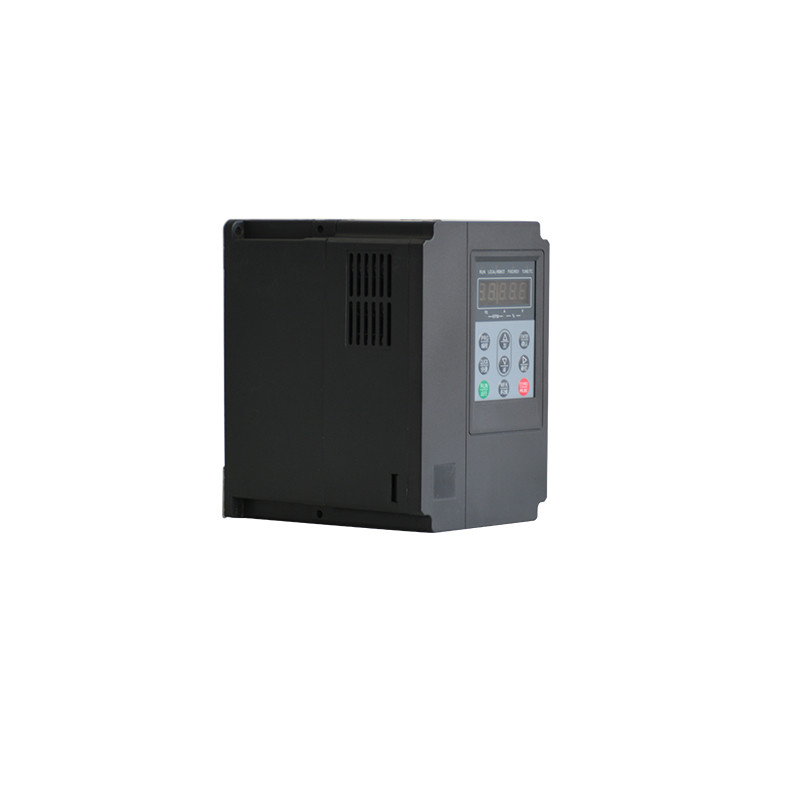

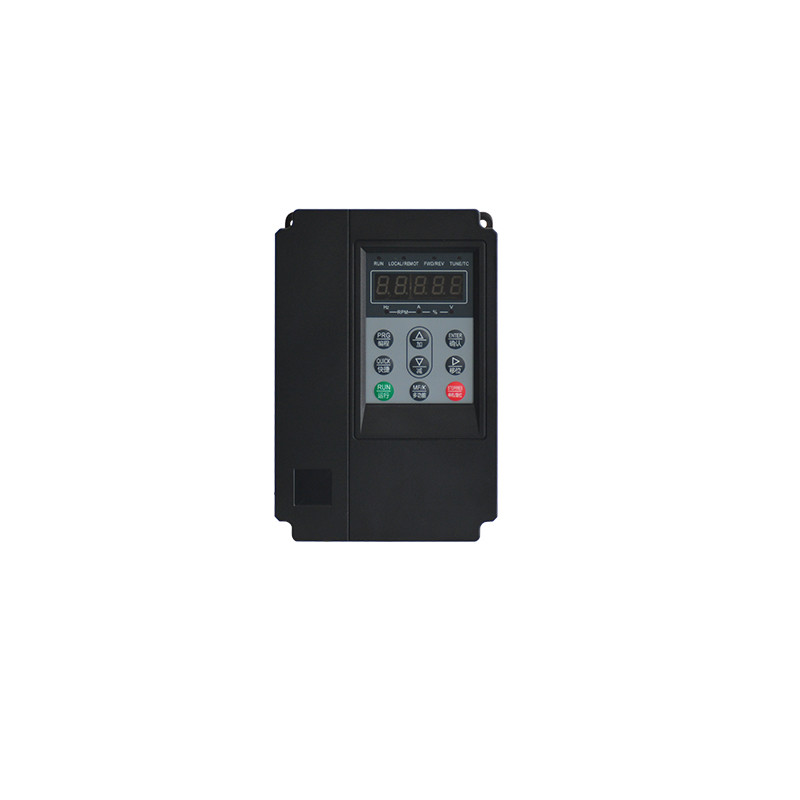

3 Phase Motor Frequency Converter Adjustable Frequency Ac Drive For 380V 03 Phase Motor Frequency Converter Adjustable Frequency Ac Drive For 380V 13 Phase Motor Frequency Converter Adjustable Frequency Ac Drive For 380V 2

FAQ:

Q: What is the brand of Motor Frequency Converter?
A: The brand of Motor Frequency Converter is Xicheng.
Q: What is the model number of Motor Frequency Converter?
A: The model number of Motor Frequency Converter is EZ680*T55GB.
Q: Where is Motor Frequency Converter made?
A: Motor Frequency Converter is made in China.
Q: What is the minimum order quantity of Motor Frequency Converter?
A: The minimum order quantity of Motor Frequency Converter is 1PCS.
Q: How much is the price of Motor Frequency Converter?
A: The price of Motor Frequency Converter is between $52 and $1310 for 1PCS.
Q: How long is the Delivery Time for Motor Frequency Converter?
A: The Delivery Time for Motor Frequency Converter is 7-15 work days.
Q: What are the payment terms of Motor Frequency Converter?
A: The payment terms of Motor Frequency Converter are L/C, T/T.
Q: How many Motor Frequency Converters can be supplied?
A: 1000PCS of Motor Frequency Converter can be supplied in 15-20 work days.
