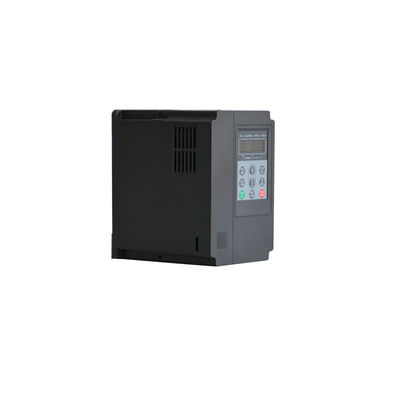

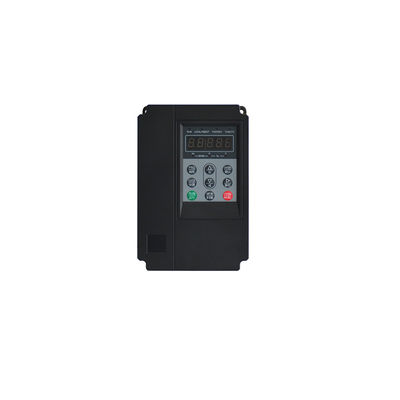

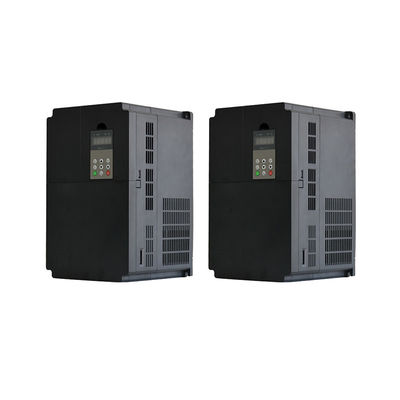

Motor Frequency 3hp Vfd Phase Converter 0.4 - 55Kw 0.0 - 500.0Hz

  • Motor Frequency 3hp Vfd Phase Converter 0.4 - 55Kw 0.0 - 500.0Hz
  • Motor Frequency 3hp Vfd Phase Converter 0.4 - 55Kw 0.0 - 500.0Hz
  • Motor Frequency 3hp Vfd Phase Converter 0.4 - 55Kw 0.0 - 500.0Hz
Place of Origin China
Brand Name Xicheng
Model Number EZ680*T55GB
Minimum Order Quantity 1PCS
Price $52-1310/1PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 1000PCS 15-20wodk days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 0.4~55Kw Input Voltage AC 3phase 380v
Output Current 1.5A-112A Weight 0.8-15Kg
Voltage Frequency 50/60Hz Rated Frequency 0.0-500.0Hz
Highlight

3hp vfd phase converter 0.4kw

,

3hp vfd phase converter 55Kw

,

inverter frequency drive 500.0Hz
You can tick the products you need and communicate with us in the message board.
Type EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ580*T2.2GB EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ680*T2.2GB EZ680*T3.7GB EZ680*T5.5GB EZ680*T7.5GB EZ680*T11GB EZ680*T15GB EZ680*T18.5GB EZ680*T22GB EZ680*T30GB EZ680*T37GB EZ680*T45GB EZ680*T55GB
Power（Kw) 0.4 0.7 1.5 2.2 0.5 0.7 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37 45 55
Input voltage(V) AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v
Output current(A) 1.5 2.1 3.8 5.1 2.3 4 7 5.1 9 13 17 25 32 37 45 60 75 91 112
Voltage frequency(HZ) 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Rated frequency(HZ) 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0
Weight(kg) 0.8 0.8 0.8 0.8 0.8 0.8 0.8 2 2 2 3.8 3.8 5.75 5.75 5.75 9.8 9.8 9.8 15
Size(mm) 84*140*100 84*140*100 84*140*100 84*140*100 84*140*100 84*140*100 84*140*100 125*185*160 125*185*160 125*185*160 160*247*183 160*247*183 208*304*192 208*304*192 208*304*192 225*360*224 225*360*224 225*360*224 295*520*270
Leave a Message
Type EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ580*T2.2GB EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ680*T2.2GB EZ680*T3.7GB EZ680*T5.5GB EZ680*T7.5GB EZ680*T11GB EZ680*T15GB EZ680*T18.5GB EZ680*T22GB EZ680*T30GB EZ680*T37GB EZ680*T45GB EZ680*T55GB
Product Description

High-Performance Motor Frequency Converter 0.4-55Kw 0.0-500.0Hz Rated Frequency

Product Description:

Motor Frequency Converter

Motor Frequency Converter is a variable frequency AC driver, also known as three phase variable frequency driver or variable frequency driver. It provides quite a wide range of rated frequency from 0.0 to 500.0 Hz and the power is ranged from 0.4 to 55Kw. The input voltage is AC 3phase 380v, while the voltage frequency is 50/60 Hz. The weight of the motor frequency converter varies from 0.8 to 15Kg, which makes it easy to install and carry.

In conclusion, the Motor Frequency Converter is a reliable, efficient and cost-effective product. It can be widely used in various applications, and will definitely bring you great convenience.



Technical Parameters:

Parameter Detail
Product Name Motor Frequency Converter, Variable frequency driver, Variable frequency AC driver
Output current 1.5A-112A
Power 0.4~55Kw
Voltage frequency 50/60Hz
Input voltage AC 3phase 380v
Weight 0.8-15Kg
Rated frequency 0.0-500.0Hz


Applications:

Xicheng's EZ680*T55GB Motor Frequency Converter is the perfect choice for those who need a reliable variable frequency driver for their motor applications. This three phase variable frequency driver offers a rated frequency range from 0.0 to 500.0Hz, making it suitable for a wide range of uses. With a power range of 0.4 to 55Kw, the EZ680*T55GB can handle even the toughest of motor applications. Additionally, it has an input voltage of AC 3phase 380v and an output current of 1.5A to 112A, making it suitable for many different applications. Furthermore, this motor frequency converter comes with a minimum order quantity of 1PCS and a price range of $52 to 1310/1PCS, making it an affordable option. Finally, with a supply ability of 1000PCS in 15-20 work days and delivery time of 7-15 work days, you can be sure that you will receive your product in a timely manner. The EZ680*T55GB Motor Frequency Converter from Xicheng is the perfect choice for those who need a reliable variable frequency driver for their motor applications.



Support and Services:

Motor Frequency Converter Technical Support & Services

We provide comprehensive technical support and services for our Motor Frequency Converter. Our services include:

  • Training of personnel on how to use and maintain the device
  • Product maintenance and troubleshooting
  • Q&A and advice on product selection and application
  • Remote technical support and diagnostics
  • Software updates and upgrades

For any questions or concerns, please contact us.

Motor Frequency 3hp Vfd Phase Converter 0.4 - 55Kw 0.0 - 500.0Hz 0Motor Frequency 3hp Vfd Phase Converter 0.4 - 55Kw 0.0 - 500.0Hz 1Motor Frequency 3hp Vfd Phase Converter 0.4 - 55Kw 0.0 - 500.0Hz 2

FAQ:

Q&A about Motor Frequency Converter
  • Q: What is the brand name of the Motor Frequency Converter? A: The brand name of the Motor Frequency Converter is Xicheng.
  • Q: What is the model number of the Motor Frequency Converter? A: The model number of the Motor Frequency Converter is EZ680*T55GB.
  • Q: Where is the Motor Frequency Converter made? A: The Motor Frequency Converter is made in China.
  • Q: How many Motor Frequency Converters can I purchase? A: The minimum order quantity is one PCS.
  • Q: How much does a Motor Frequency Converter cost? A: The cost of a Motor Frequency Converter is between $52-1310 per PCS.
