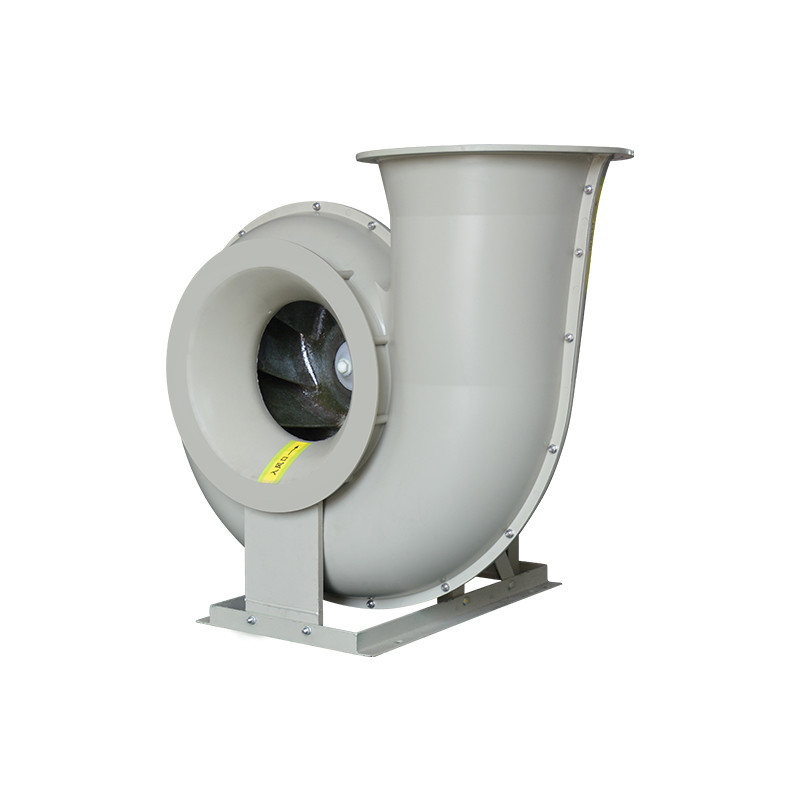

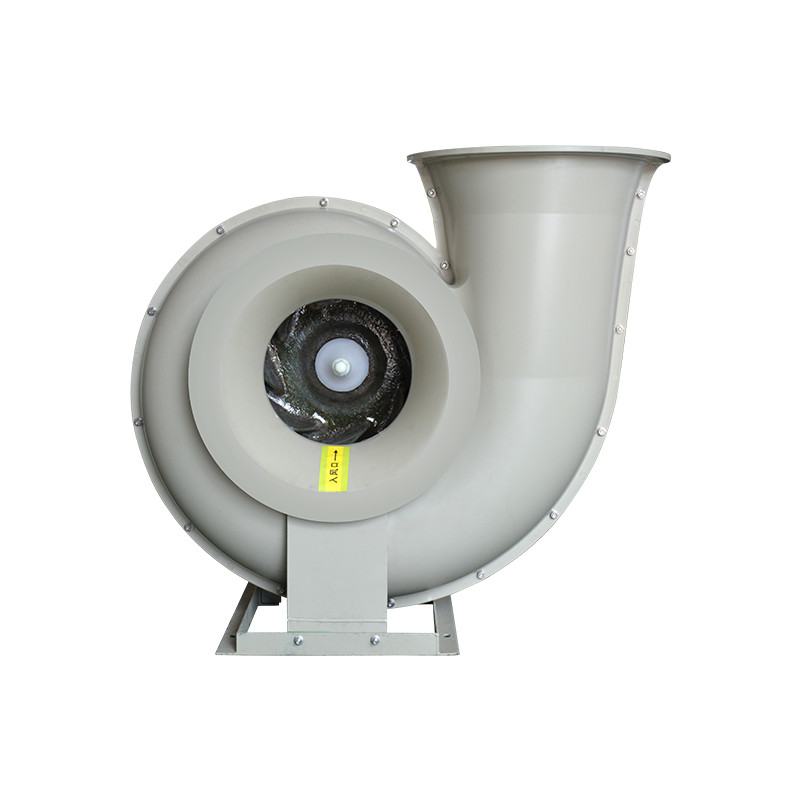

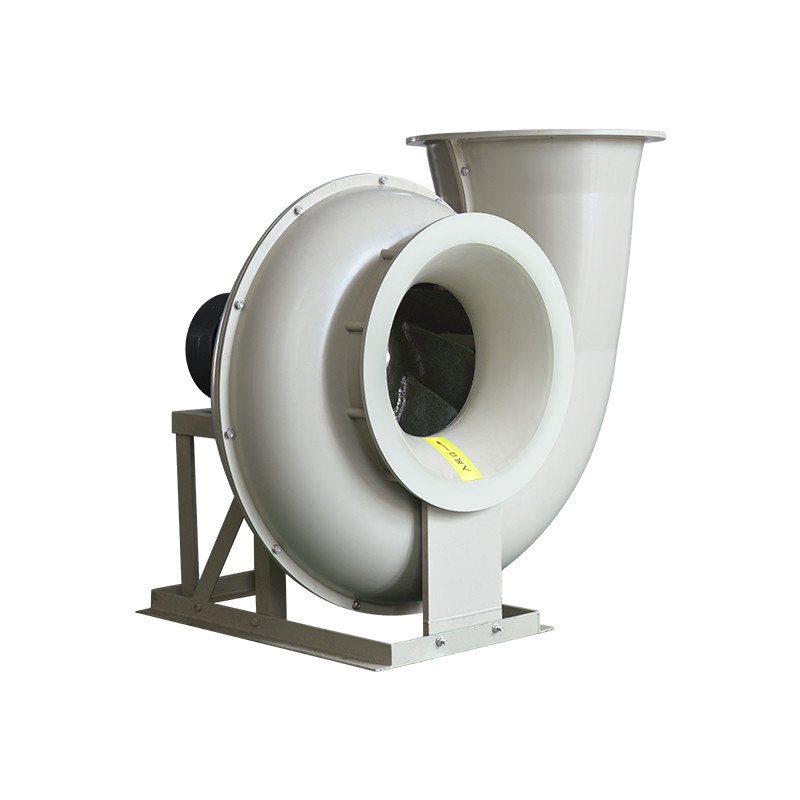

3000RPM Centrifugal Blower Fan 315 - 600mm Air Inlet High Pressure
| Place of Origin | China |
|---|---|
| Brand Name | Xicheng |
| Model Number | 6# |
| Minimum Order Quantity | 1PCS |
| Price | $261-1103/PCS |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 300PCS 20-30work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Speed | 1450~3200r/min | Inner Diameter Of Air Outlet | 315~600mm |
|---|---|---|---|
| Outer Diameter Of Air Outlet | 415~700mm | Wind Presssure | 1000~1500Pa |
| Outer Diameter Of Air Inlet | 415~700mm | Impeller Material | PP/FRP |
| Power | 1.5~7.5Kw | Type | Centrifugal Blower Fan |
| Highlight | 3000RPM Centrifugal Blower Fan,Centrifugal Blower Fan 315MM,600mm high pressure centrifugal blower |
||
You can tick the products you need and communicate with us in the message board.
| Type | 3# | 3# | 3.6# | 3.6# | 4# | 4# | 4# | 5# | 5# | 5# | 6# | 6# | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power （Kw） | 1.5 | 1.5 | 2.2 | 2.2 | 3 | 4 | 3 | 7.5 | 5.5 | 4 | 5.5 | 7.5 | |
| Speed （r/min） | 2900 | 3200 | 2900 | 3000 | 2750 | 2900 | 3200 | 2900 | 2415 | 1800 | 1450 | 2070 | |
| Impeller material | PP | PP | PP | PP | PP | FRP | FRP | FRP | FRP | PP | PP | FRP | |
| Air volume (m³/H） | 2400 | 2700 | 2600 | 2800 | 4500 | 5500 | 5000 | 10000 | 7000 | 9000 | 8000 | 11000 | |
| Wind presssure （Pa） | 1000 | 1200 | 1200 | 1200 | 1200 | 1300 | 1300 | 1500 | 1500 | 1500 | 1000 | 1500 | |
| Air inlet | 315-415 | 315-415 | 355-455 | 355-455 | 400-500 | 400-500 | 400-500 | 500-600 | 500-600 | 500-600 | 600-700 | 600-700 | |
| Air outlet | 315-415 | 315-415 | 355-455 | 355-455 | 400-500 | 400-500 | 400-500 | 500-600 | 500-600 | 500-600 | 600-700 | 600-700 |
Product Description
Energy-Efficient PP Volute Permanent Magnet Inverter Fan with 315-600mm Inner Diameter Air Inlet
Product Description:
Centrifugal Blower Fan is a kind of air blower or fan that works on the principle of centrifugal force. It is designed for high pressure and high air flow rate applications. It is made from PP or FRP material, with outer diameter of air inlet between 415~700mm. The wind pressure ranges from 1000~1500Pa, while air volume is 2400~11000m³/H. It is widely used in industrial and commercial ventilation system, HVAC system, etc. Our Centrifugal Blower Fan is characterized by its high efficiency, low noise, light weight, and corrosion resistance. It also offers high quality performance, reliability and durability. The volute design of our Centrifugal Air Blower and Centrifugal Air Fan ensures that the air flow is evenly distributed and the pressure is well balanced. The PP or FRP volute Centrifugal Fan Blower is the perfect solution for your air movement needs. Choose our Centrifugal Blower Fan for high performance and low cost of operation. For more information about our Centrifugal Air Blower and Centrifugal Air Fan, please feel free to contact us.
Features:
1. Reasonable structure, our company and Xi 'an Jiaotong University joint research and development design, repeated trials forum, break the traditional fan design concept, and strive for efficiency and stability
2. Volute shape design: smooth air flow field, high efficiency, low noise; PP shell of flame retardant material, strong anti-corrosion performance, suitable for a variety of pipeline connections, a wide range of use
3. The transmission mode of direct connection between the motor and the impeller makes the transmission loss smaller and the efficiency of the fan higher
4. The central shaft of the impeller adopts conical design, and the connection with the motor adopts cone sleeve protection to prevent corrosion and rust of the connecting rod, and the installation, maintenance and replacement are more convenient
5. High efficiency and energy saving impeller design, the impeller adopts high strength material integrated injection molding, high strength, good toughness, aging resistance, corrosion resistance, long service life
6. PP centrifugal fan with permanent magnet motor, high efficiency and energy saving is not easy to damage, large wheelbase, high torque, large air volume, stepless speed regulation, easy to operate
7. Suitable for 3 kinds of motors: conventional motor, explosion-proof motor, permanent magnet motor
Technical Parameters:
| Parameters | Centrifugal Blower Fan |
|---|---|
| Wind presssure | 1000~1500Pa |
| Type | Centrifugal Blower Fan |
| Inner diameter of air inlet | 315~600mm |
| Inner diameter of air outlet | 315~600mm |
| Power | 1.5~7.5Kw |
| Impeller material | PP/FRP |
| Speed | 1450~3200r/min |
| Air volume | 2400~11000m³/H |
| Outer diameter of air inlet | 415~700mm |
| Outer diameter of air outlet | 415~700mm |
Applications:
The Xicheng 6# Centrifugal Blower Fan is an ideal solution for a variety of industrial applications. It is designed with a PP volute and a centrifugal impeller material for maximum efficiency. This fan is powered by 1.5~7.5Kw of energy and features an outer diameter of air inlet and outlet of 415~700mm. It is equipped with a minimum order quantity of 1PCS and a price of $261-1103/PCS, with a delivery time of 7-15 work days. Additionally, it has a supply ability of 300PCS 20-30work days and accepts payment terms through L/C and T/T.
The Xicheng 6# Centrifugal Blower Fan is an excellent choice for various industrial applications, thanks to its superior design and performance. It is perfect for high pressure/volume conveying, air ventilating, fume exhausting, drying, cooling, and air cleaning. Furthermore, this fan offers superior efficiency and reliability in a variety of applications such as industrial plants, workshops, warehouses, and more.
The Xicheng 6# Centrifugal Blower Fan is made from the highest quality materials and is built to last. It is designed for maximum efficiency and performance, ensuring a long-lasting and reliable operation. It is also easy to install and maintain, making it an ideal choice for any application.
Support and Services:
Technical Support and Service for Centrifugal Blower Fan
We provide comprehensive technical support and service for centrifugal blower fans. Our experienced team of professionals can help you to choose the right fan for your application and troubleshoot any issues you may have.
We offer troubleshooting and diagnostic services for centrifugal blower fans, and can help you to identify and rectify any potential issues with your fan.
We also provide ongoing maintenance and servicing for centrifugal blower fans, to ensure they remain in good working order and deliver optimal performance.
If you need any technical support and service for your centrifugal blower fan, please don't hesitate to get in touch with us today.
FAQ:
Q: What is the Brand Name of this Centrifugal Blower Fan?
A: The Brand Name of this Centrifugal Blower Fan is Xicheng.
Q: What is the Model Number of this Centrifugal Blower Fan?
A: The Model Number of this Centrifugal Blower Fan is 6#.
Q: Where is this Centrifugal Blower Fan made?
A: This Centrifugal Blower Fan is made in China.
Q: What is the minimum order quantity for this Centrifugal Blower Fan?
A: The minimum order quantity for this Centrifugal Blower Fan is 1PCS.
Q: What is the price range of this Centrifugal Blower Fan?
A: The price range of this Centrifugal Blower Fan is from $261 to $1103 per PCS.
