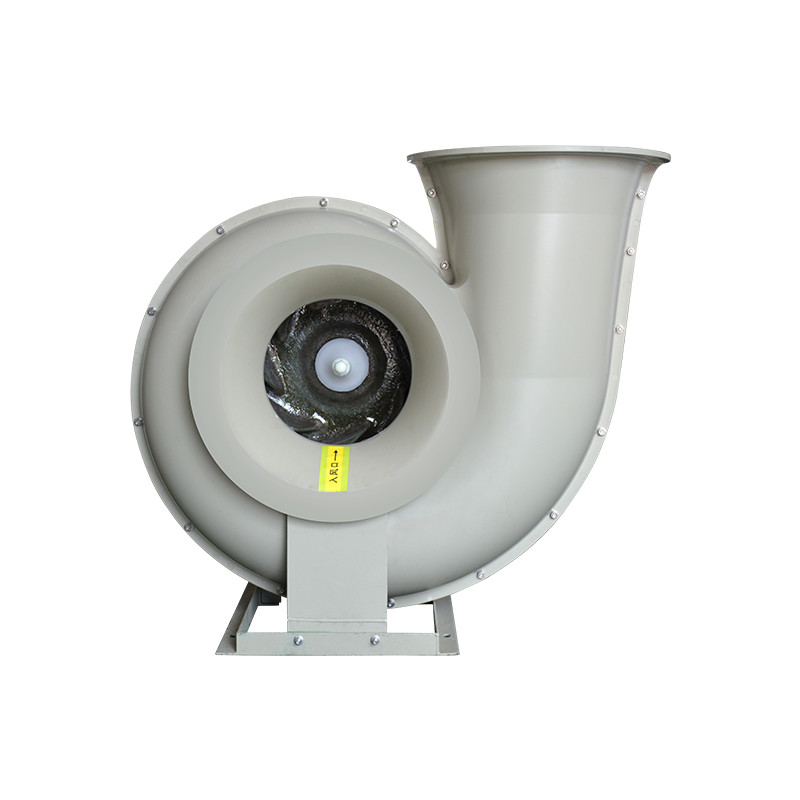

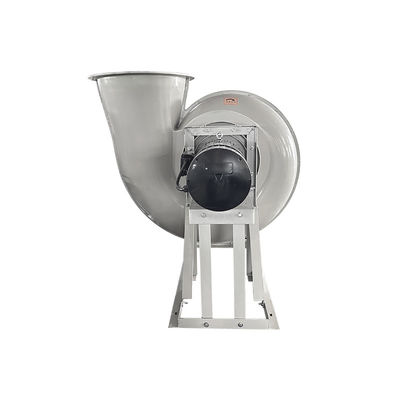

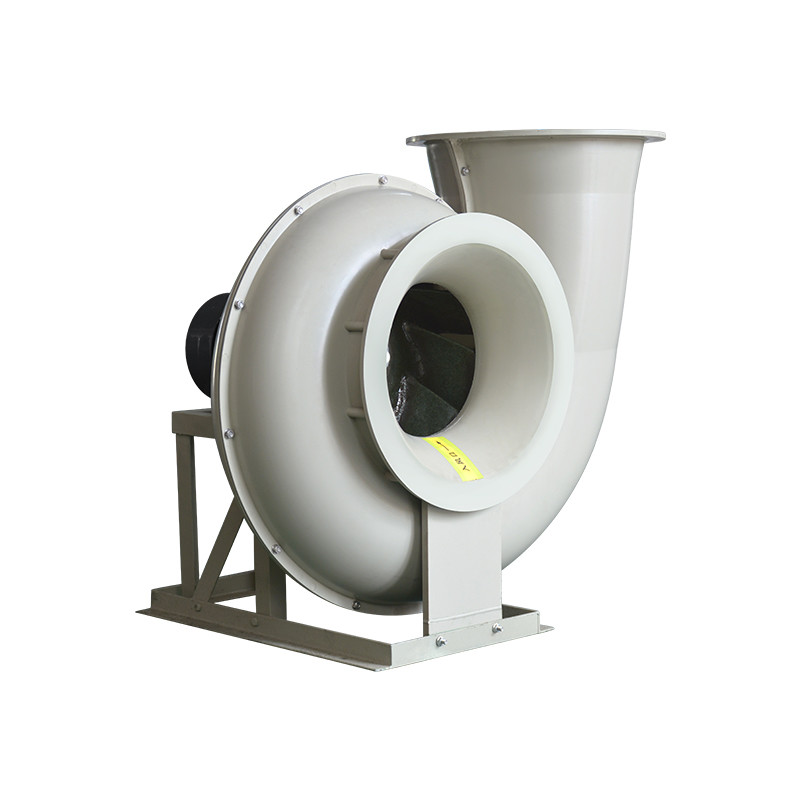

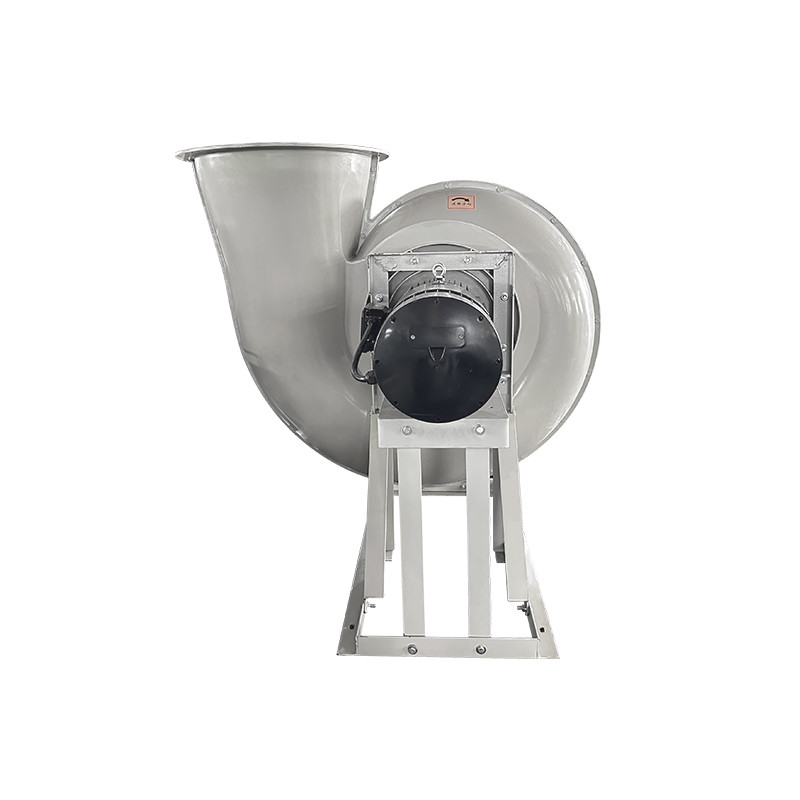

Industrial Centrifugal Blower Fans Inner Dia 315 - 600mm 1000 - 1500Pa

Industrial PP Volute Permanent Magnet Inverter Fan Inner Diameter 315-600mm Wind Pressure 1000-1500Pa

Product Description:

Our Centrifugal Air Fan is an ideal choice for various applications. It features an inner diameter of air inlet ranging from 315mm to 600mm and an outer diameter of air inlet ranging from 415mm to 700mm. The impeller material of the centrifugal air fan can be selected from PP or FRP, and the speed can be adjusted from 1450r/min to 3200r/min. Power range is from 1.5Kw to 7.5Kw, making this Centrifugal Air Fan suitable for almost any kind of project.

Features:

1. Reasonable structure, our company and Xi 'an Jiaotong University joint research and development design, repeated trials forum, break the traditional fan design concept, and strive for efficiency and stability

2. Volute shape design: smooth air flow field, high efficiency, low noise; PP shell of flame retardant material, strong anti-corrosion performance, suitable for a variety of pipeline connections, a wide range of use

3. The transmission mode of direct connection between the motor and the impeller makes the transmission loss smaller and the efficiency of the fan higher

4. The central shaft of the impeller adopts conical design, and the connection with the motor adopts cone sleeve protection to prevent corrosion and rust of the connecting rod, and the installation, maintenance and replacement are more convenient

5. High efficiency and energy saving impeller design, the impeller adopts high strength material integrated injection molding, high strength, good toughness, aging resistance, corrosion resistance, long service life

6. PP centrifugal fan with permanent magnet motor, high efficiency and energy saving is not easy to damage, large wheelbase, high torque, large air volume, stepless speed regulation, easy to operate

7. Suitable for 3 kinds of motors: conventional motor, explosion-proof motor, permanent magnet motor

Technical Parameters:

Applications:

Xicheng 6# Centrifugal Blower Fan is designed for a wide range of applications, from industrial to commercial. It features a compact design, minimum order quantity of 1PCS, a price range of $261-1103/PCS, delivery within 7-15 work days, payment terms of L/C,T/T, and a supply ability of 300PCS within 20-30 work days. It is equipped with air volume of 2400~11000m³/H, wind pressure of 1000~1500Pa, speed of 1450~3200r/min, outer diameter of air inlet of 415~700mm, and inner diameter of air inlet of 315~600mm. This fan is capable of providing powerful air flow and pressure with utmost efficiency.

Support and Services:

We provide technical support and service for our Centrifugal Blower Fan products. We understand that our customers may encounter technical issues with their equipment and our team of experts are here to help. Our technical support and service includes:

• Diagnosis of technical issues
• Troubleshooting and problem solving
• Replacement and upgrade services

We are committed to providing high quality technical support and service for our Centrifugal Blower Fan products. Please do not hesitate to contact us if you have any questions or need assistance with your equipment.

FAQ:

Q1: What is the Brand Name of the Centrifugal Blower Fan?

A1: The Brand Name is Xicheng.

Q2: What is the Model Number of the Centrifugal Blower Fan?

A2: The Model Number is 6#.

Q3: Where is the Centrifugal Blower Fan from?

A3: The Centrifugal Blower Fan is from China.

Q4: What is the Minimum Order Quantity of the Centrifugal Blower Fan?

A4: The Minimum Order Quantity is 1PCS.

Q5: What is the Price of the Centrifugal Blower Fan?

A5: The Price of the Centrifugal Blower Fan is from $261-1103/PCS.
