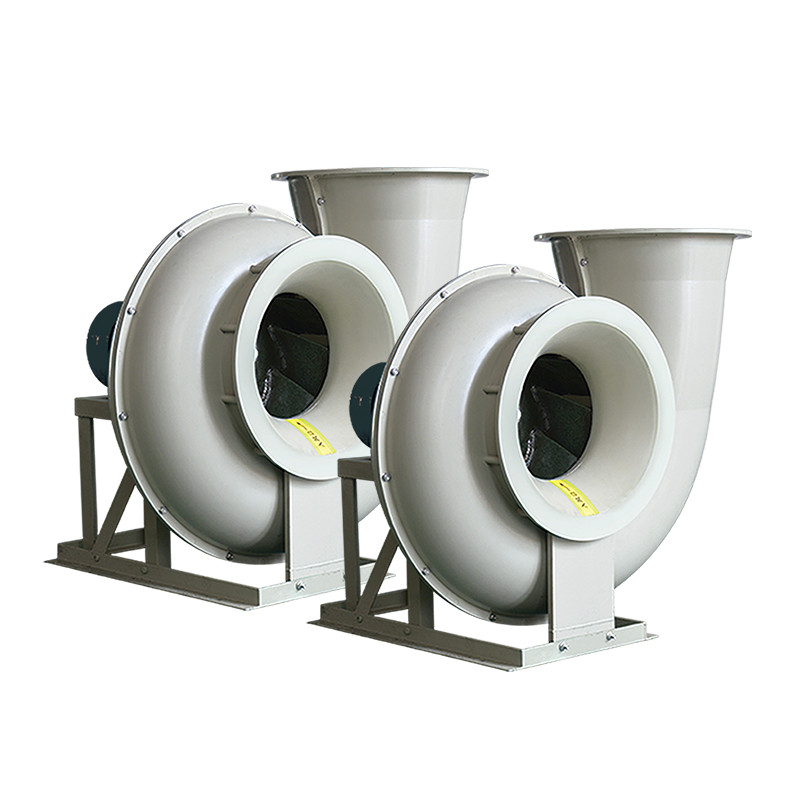

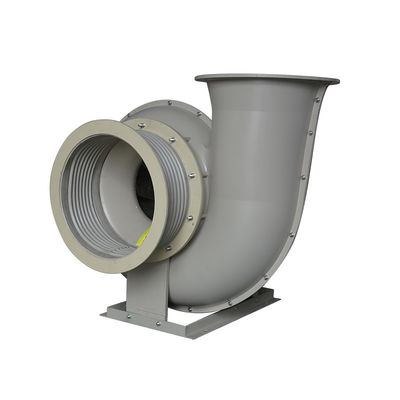

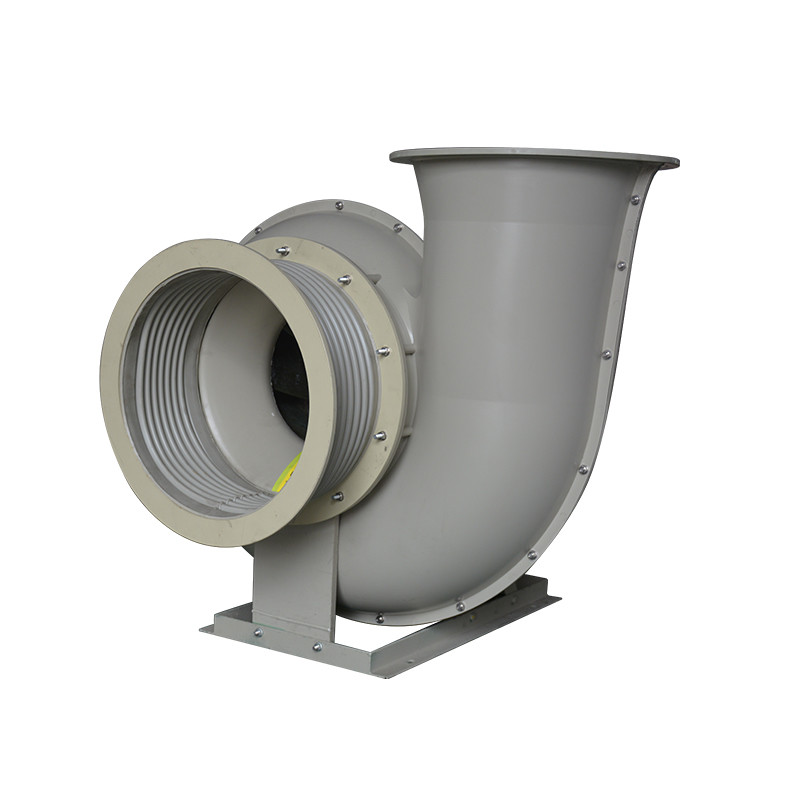

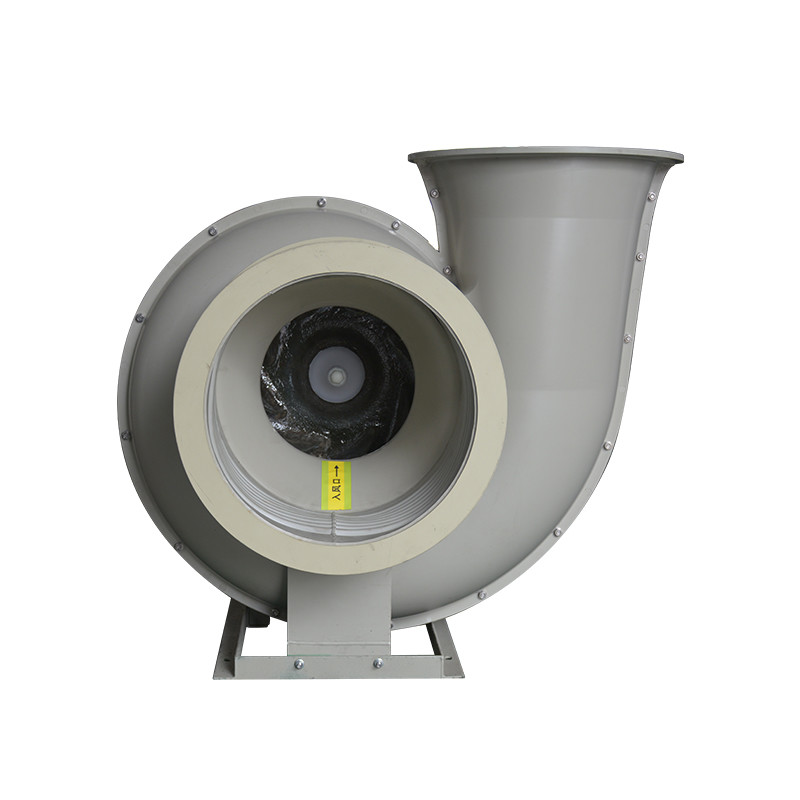

Permanent Magnet Centrifugal Blower Fan 415 - 700mm Outer Dia Centrifugal Exhaust Fan

Powerful PP volute permanent magnet centrifugal fan 415-700mm Outer Diameter for Effective Ventilation

Product Description:

Centrifugal Blower Fan, also known as Centrifugal Air Fan, is a kind of volute permanent magnet fan, which can be used for blowing and exhausting. It has two kinds of Impeller material: PP and FRP. The Outer diameter of air inlet is between 415~700mm, and the Outer diameter of air outlet is between 415~700mm, Inner diameter of air outlet is between 315~600mm. The motor power ranges from 1.5~7.5Kw. It is widely used in air conditioning, ventilation, etc.

Features:

1. Reasonable structure, our company and Xi 'an Jiaotong University joint research and development design, repeated trials forum, break the traditional fan design concept, and strive for efficiency and stability

2. Volute shape design: smooth air flow field, high efficiency, low noise; PP shell of flame retardant material, strong anti-corrosion performance, suitable for a variety of pipeline connections, a wide range of use

3. The transmission mode of direct connection between the motor and the impeller makes the transmission loss smaller and the efficiency of the fan higher

4. The central shaft of the impeller adopts conical design, and the connection with the motor adopts cone sleeve protection to prevent corrosion and rust of the connecting rod, and the installation, maintenance and replacement are more convenient

5. High efficiency and energy saving impeller design, the impeller adopts high strength material integrated injection molding, high strength, good toughness, aging resistance, corrosion resistance, long service life

6. PP centrifugal fan with permanent magnet motor, high efficiency and energy saving is not easy to damage, large wheelbase, high torque, large air volume, stepless speed regulation, easy to operate

7. Suitable for 3 kinds of motors: conventional motor, explosion-proof motor, permanent magnet motor

Technical Parameters:

Applications:

Xicheng 6# Centrifugal Blower Fan is a top-quality product with outstanding features. It has a wind pressure of 1000-1500Pa and an inner diameter of air inlet of 315-600mm. It is capable of providing an air volume of 2400-11000m³/H and a speed of 1450-3200r/min. This PP volute permanent magnet centrifugal fan is the perfect choice for any application requiring high-efficiency and low noise. It is capable of delivering superior performance with minimal energy consumption. With its sleek and compact design, it is easy to install and maintain. It is also highly durable and reliable, making it perfect for long-term use. The price of this product ranges from 261 to 1103/PCS, and it has a minimum order quantity of 1PCS. Delivery time is 7-15 work days, with a supply ability of 300PCS in 20-30 work days. Payment terms are L/C or T/T.

Support and Services:

At Xicheng Company, we provide technical support and service for Centrifugal Blower Fans. Our team of experts is available 24/7 to answer any questions you may have about the product and to provide assistance with installation, maintenance, and troubleshooting.

We can help you identify any potential problems and provide solutions to ensure optimal efficiency and performance.

If you ever need assistance or have any questions about our Centrifugal Blower Fans, please contact us and we will be happy to help.

FAQ:

Q: What is the Brand Name of this Centrifugal Blower Fan?

A: The Brand Name of this Centrifugal Blower Fan is Xicheng.

Q: What is the Model Number of this Centrifugal Blower Fan?

A: The Model Number of this Centrifugal Blower Fan is 6#.

Q: Where is this Centrifugal Blower Fan made in?

A: This Centrifugal Blower Fan is made in China.

Q: What is the Minimum Order Quantity of this Centrifugal Blower Fan?

A: The Minimum Order Quantity of this Centrifugal Blower Fan is 1PCS.

Q: How much does each Centrifugal Blower Fan cost?

A: Each Centrifugal Blower Fan costs $261-1103/PCS.
