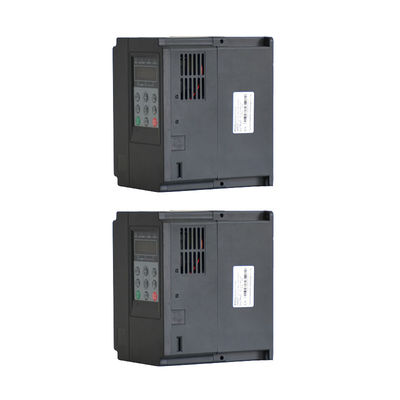

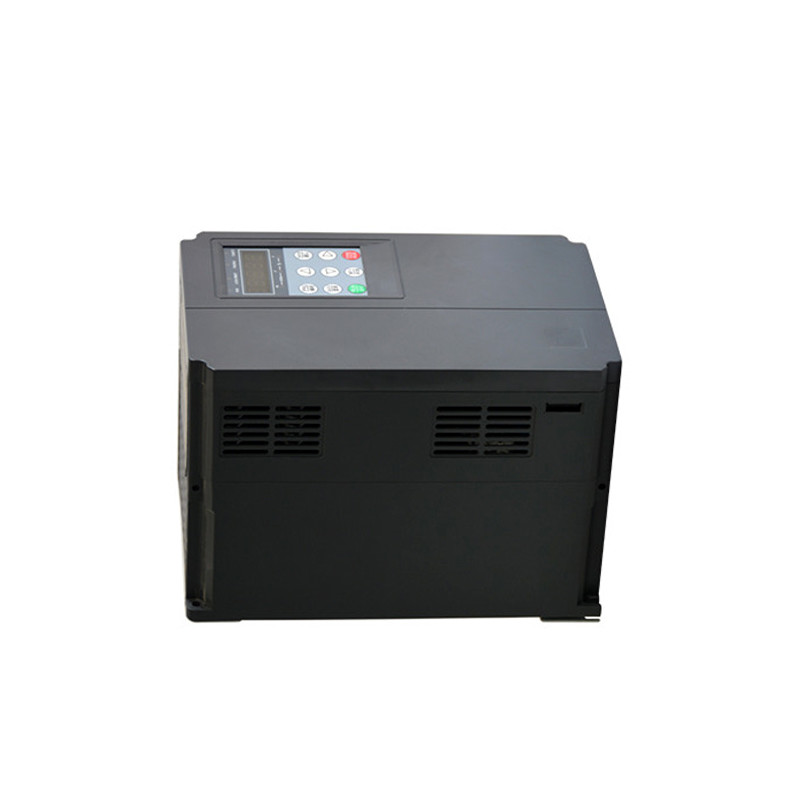

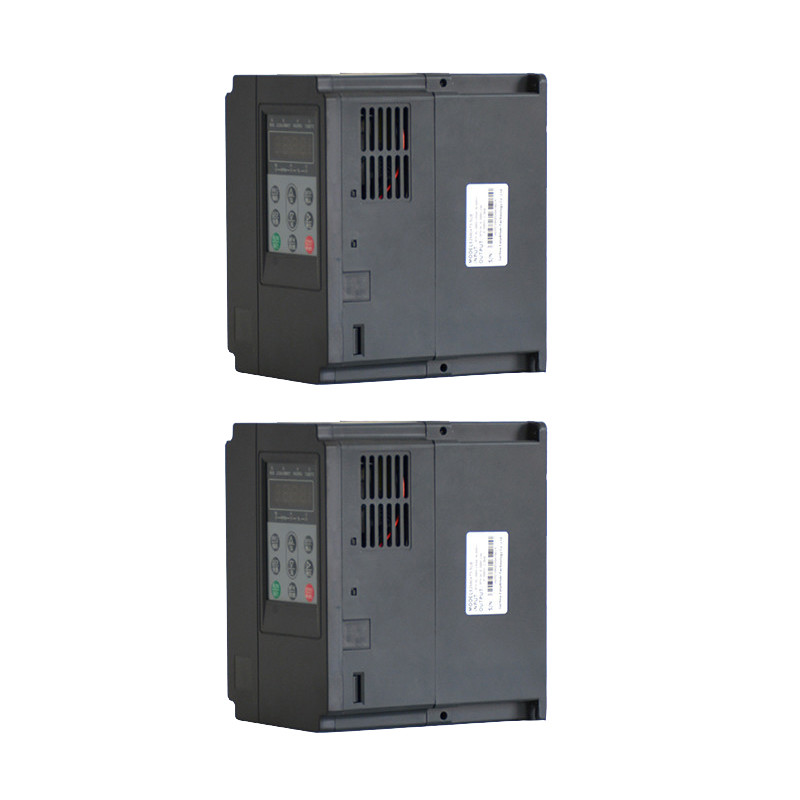

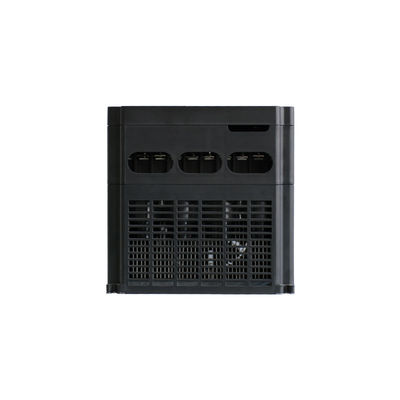

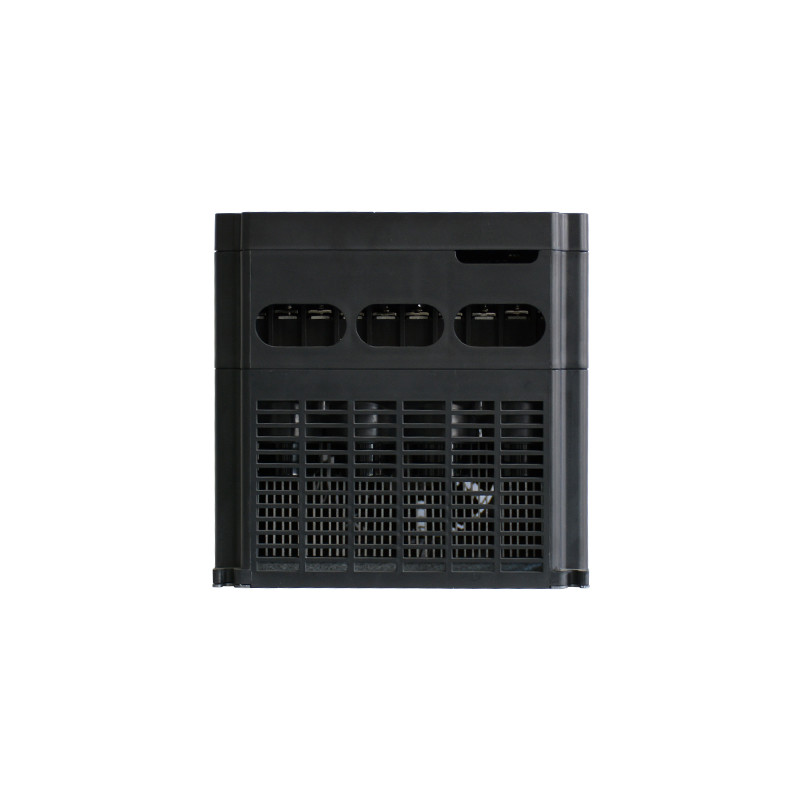

Industrial 0.8 - 15Kg Variable Frequency Converter 3hp Vfd Phase Converter
| Place of Origin | China |
|---|---|
| Brand Name | Xicheng |
| Model Number | EZ680*T2.2GB |
| Minimum Order Quantity | 1PCS |
| Price | $52-1310/1PCS |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 1000PCS 15-20wodk days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Input Voltage | AC 3phase 380v | Power | 0.4~55Kw |
|---|---|---|---|
| Voltage Frequency | 50/60Hz | Rated Frequency | 0.0-500.0Hz |
| Output Current | 1.5A-112A | Weight | 0.8-15Kg |
| Highlight | 0.8kg Variable Frequency Converter,15Kg Variable Frequency Converter,3hp vfd phase converter 60Hz |
||
You can tick the products you need and communicate with us in the message board.
| Type | EZ580*T0.4GB | EZ580*T0.7GB | EZ580*T1.5GB | EZ580*T2.2GB | EZ580*T0.4GB | EZ580*T0.7GB | EZ580*T1.5GB | EZ680*T2.2GB | EZ680*T3.7GB | EZ680*T5.5GB | EZ680*T7.5GB | EZ680*T11GB | EZ680*T15GB | EZ680*T18.5GB | EZ680*T22GB | EZ680*T30GB | EZ680*T37GB | EZ680*T45GB | EZ680*T55GB | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power（Kw) | 0.4 | 0.7 | 1.5 | 2.2 | 0.5 | 0.7 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | |
| Input voltage(V) | AC 3phase 380v | AC 3phase 380v | AC 3phase 380v | AC 3phase 380v | AC 3phase 380v | AC 3phase 380v | AC 3phase 380v | AC 3phase 380v | AC 3phase 380v | AC 3phase 380v | AC 3phase 380v | AC 3phase 380v | AC 3phase 380v | AC 3phase 380v | AC 3phase 380v | AC 3phase 380v | AC 3phase 380v | AC 3phase 380v | AC 3phase 380v | |
| Output current(A) | 1.5 | 2.1 | 3.8 | 5.1 | 2.3 | 4 | 7 | 5.1 | 9 | 13 | 17 | 25 | 32 | 37 | 45 | 60 | 75 | 91 | 112 | |
| Voltage frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | |
| Rated frequency(HZ) | 0.0-500.0 | 0.0-500.0 | 0.0-500.0 | 0.0-500.0 | 0.0-500.0 | 0.0-500.0 | 0.0-500.0 | 0.0-500.0 | 0.0-500.0 | 0.0-500.0 | 0.0-500.0 | 0.0-500.0 | 0.0-500.0 | 0.0-500.0 | 0.0-500.0 | 0.0-500.0 | 0.0-500.0 | 0.0-500.0 | 0.0-500.0 | |
| Weight(kg) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 2 | 2 | 2 | 3.8 | 3.8 | 5.75 | 5.75 | 5.75 | 9.8 | 9.8 | 9.8 | 15 | |
| Size(mm) | 84*140*100 | 84*140*100 | 84*140*100 | 84*140*100 | 84*140*100 | 84*140*100 | 84*140*100 | 125*185*160 | 125*185*160 | 125*185*160 | 160*247*183 | 160*247*183 | 208*304*192 | 208*304*192 | 208*304*192 | 225*360*224 | 225*360*224 | 225*360*224 | 295*520*270 |
Product Description
Industrial-Grade 0.8-15Kg Frequency Converter for Reliable Results
Product Description:
Variable Frequency Converter is a motor driver that can achieve motor variable frequency driving. It can provide voltage frequency of 50/60Hz, input voltage of AC 3phase 380v, rated frequency of 0.0-500.0Hz, power of 0.4-55Kw, output current of 1.5A-112A. This Variable Frequency Converter is suitable for a wide range of applications, such as industry automation, pumps, fans, lighting, elevators, electric welding machines, etc. It is designed to meet different user needs and provide reliable and efficient motor variable frequency driving.
The Variable Frequency Converter is easy to install and maintain, and provides a safe and reliable driving solution for motor variable frequency applications.
The Variable Frequency Converter is a reliable, efficient, and cost-effective solution for motor variable frequency driving. Its wide range of applications make it an ideal choice for industrial automation, pumps, fans, lighting, elevators, electric welding machines, and other applications.
Technical Parameters:
| Parameter | Value |
|---|---|
| Power | 0.4~55Kw |
| Output current | 1.5A-112A |
| Voltage frequency | 50/60Hz |
| Weight | 0.8-15Kg |
| Input voltage | AC 3phase 380v |
| Rated frequency | 0.0-500.0Hz |
| Motor Driver | Yes |
| Frequency Converter | Yes |
| Variable Voltage | Yes |
| Variable Speed | Yes |
Applications:
Xicheng EZ680*T2.2GB Motor Variable Frequency Driver
Xicheng's EZ680*T2.2GB Motor Variable Frequency Driver is a widely used motor frequency converter that offers a wide range of features for optimal performance. It has a rated frequency of 0.0-500.0Hz, a power range of 0.4~55Kw, an input voltage of AC 3phase 380v, and an output current of 1.5A-112A. It is also lightweight, with a weight of 0.8-15Kg, and can be ordered in quantities of 1PCS for a minimum order quantity. The price ranges from $52-1310/1PCS, and delivery takes 7-15 work days. It is capable of a supply ability of 1000PCS in 15-20wodk days, and payment is accepted through L/C and T/T. Xicheng's EZ680*T2.2GB Motor Variable Frequency Driver is a reliable frequency converter that is perfect for any motor needs.
Support and Services:
Variable Frequency Converter Technical Support and Service
We are committed to providing quick and reliable technical support and service for our Variable Frequency Converter products. Our experienced engineers and technicians are available to answer any questions and provide assistance with installing, troubleshooting, and maintaining your Variable Frequency Converter.
Contact Us
If you have any questions about our Variable Frequency Converter products or require technical support and service, please don’t hesitate to contact us. We are here to help.
FAQ:
Q1: What is the brand of the Variable Frequency Converter?
A1: The Variable Frequency Converter is made by Xicheng.
Q2: What is the model number of the Variable Frequency Converter?
A2: The model number of the Variable Frequency Converter is EZ680*T2.2GB.
Q3: Where is the Variable Frequency Converter made?
A3: The Variable Frequency Converter is made in China.
Q4: How many pieces of Variable Frequency Converter can be ordered at least?
A4: At least one piece of Variable Frequency Converter can be ordered.
Q5: What is the price range of the Variable Frequency Converter?
A5: The price range of the Variable Frequency Converter is from $52-1310/1PCS.
