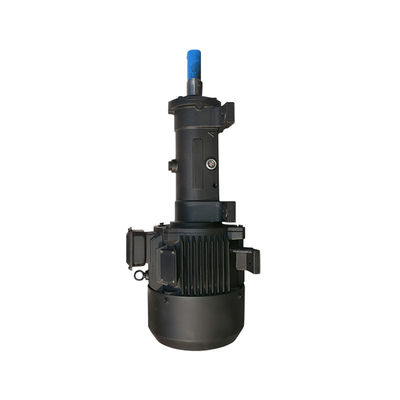

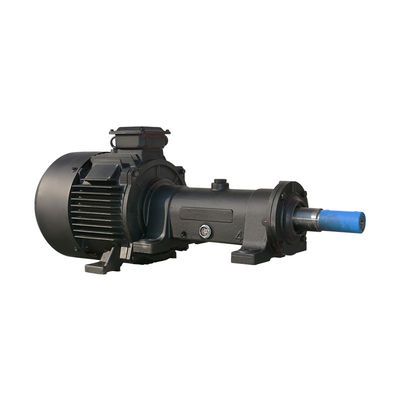

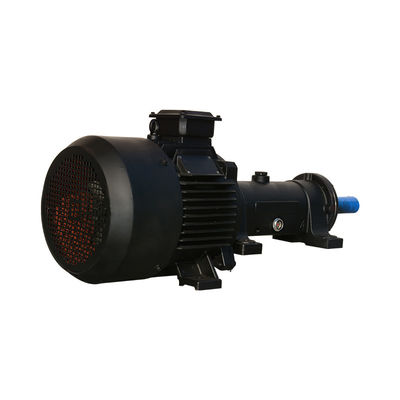

DC Direct Current Permanent Magnet Motor 93.6-95.8% Efficiency Rare Earth

  • DC Direct Current Permanent Magnet Motor 93.6-95.8% Efficiency Rare Earth
  • DC Direct Current Permanent Magnet Motor 93.6-95.8% Efficiency Rare Earth
  • DC Direct Current Permanent Magnet Motor 93.6-95.8% Efficiency Rare Earth
Place of Origin China
Brand Name Xicheng
Model Number TYB225-8-55-1500
Minimum Order Quantity 1PCS
Price $490-1600/PCS
Delivery Time 7-15 work days
Payment Terms L/C,T/T
Supply Ability 500PCS 15-20work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Installation Mode B3 Efficiency 93.6~95.8%
Erequency 100Hz Speed 1500rpm
Voltage 380V Insulation Grade B
Output 11~55Kw Working System S1
Highlight

DC direct current permanent magnet motor

,

direct current permanent magnet motor 93.6%

,

rare earth magnet motor 100Hz
You can tick the products you need and communicate with us in the message board.
Type TYB160-8-11-1500 TYB160-8-15-1500 TYB160-8-18.5-1500 TYB200-8-22-1500 TYB200-8-30-1500 TYB200-8-37-1500 TYB225-8-45-1500 TYB225-8-55-1500
Voltage (V) 380 380 380 380 380 380 380 380
Erequency (Hz) 100 100 100 100 100 100 100 100
Output (Kw) 11 15 18.5 22 30 37 45 55
Speed (rpm) 1500 1500 1500 1500 1500 1500 1500 1500
Efficiency (%) 93.6 94 94.3 94.7 95 95.3 95.6 95.8
Working system S1 S1 S1 S1 S1 S1 S1 S1
Insulation grade B B B B B B B B
Installation mode B3 B3 B3 B3 B3 B3 B3 B3
Leave a Message
Type TYB160-8-11-1500 TYB160-8-15-1500 TYB160-8-18.5-1500 TYB200-8-22-1500 TYB200-8-30-1500 TYB200-8-37-1500 TYB225-8-45-1500 TYB225-8-55-1500
Product Description



High-Efficiency Permanent Magnetic DC Motor with 93.6-95.8% Efficiency for Various Applications

Product Description:

Permanent Magnet DC Motor (PMDC Motor), also known as magnetically driven motor, is a type of direct current motor which is powered by permanent magnet. It offers high efficiency with efficiency ranging from 93.6% to 95.8%, and is capable of producing output power of 11kW to 55 kW. It has a voltage of 380V and insulation grade of B, and is designed to operate in S1 working system. PMDC Motors are widely used in industrial and commercial applications due to their high efficiency and reliability.



Features of permanent magnet direct drive motor:



  • First-level energy efficiency: high efficiency, the efficiency of permanent magnet motors can easily reach the first-level energy efficiency.
  • High cost performance: small size, similar cost to traditional motors, but more functions.
  • High-efficiency work: high-efficiency and wide range of speed regulation. In the speed regulation range of tens to several dry revolutions, the motor is in a high-efficiency working state.
  • Intelligent energy saving: Through intelligent settings, the problem of "big horse-drawn small carts" of fans can be completely solved.


Technical Parameters:

Feature Parameter
Permanent Magnet DC Motor Magnetically Driven Motor
Insulation Grade B
Efficiency 93.6~95.8%
Installation Mode B3
Output 11~55Kw
Frequency 100Hz
Speed 1500rpm
Working System S1
Voltage 380V


Applications:

Xicheng's Permanent Magnet DC Motor, Model Number: TYB225-8-55-1500, is a magnetically driven motor that is made in China. It has a minimum order quantity of 1PCS and the price range is from $490-1600/PCS. Delivery time is 7-15 work days and payment terms include L/C, T/T. The supply ability is 500PCS 15-20work days. The frequency of this motor is 100Hz and it has a B3 installation mode. The efficiency is 93.6~95.8% and the speed is 1500rpm, while the insulation grade is B.



Support and Services:

Permanent Magnet DC Motor Technical Support and Service

We provide technical support and services for Permanent Magnet DC Motors to ensure you get the best performance and return from your purchase. Our team of qualified technicians and engineers are on hand to provide support when you need it.

We can help you with:

  • Troubleshooting and diagnostics
  • Performance optimization
  • Spare parts supply
  • Training and advice

If you have any queries or require any assistance, please do not hesitate to contact us. We are here to help!

DC Direct Current Permanent Magnet Motor 93.6-95.8% Efficiency Rare Earth 0

FAQ:

Q: What is the Brand Name of the Permanent Magnet DC Motor?
A: The Brand Name of the Permanent Magnet DC Motor is Xicheng.
Q: What is the Model Number of the Permanent Magnet DC Motor?
A: The Model Number of the Permanent Magnet DC Motor is TYB225-8-55-1500.
Q: Where is the Permanent Magnet DC Motor made?
A: The Permanent Magnet DC Motor is made in China.
Q: How many Permanent Magnet DC Motors do I need to purchase?
A: The minimum order quantity for the Permanent Magnet DC Motor is 1PCS.
Q: What is the price range for the Permanent Magnet DC Motor?
A: The price range for the Permanent Magnet DC Motor is $490-1600/PCS.
