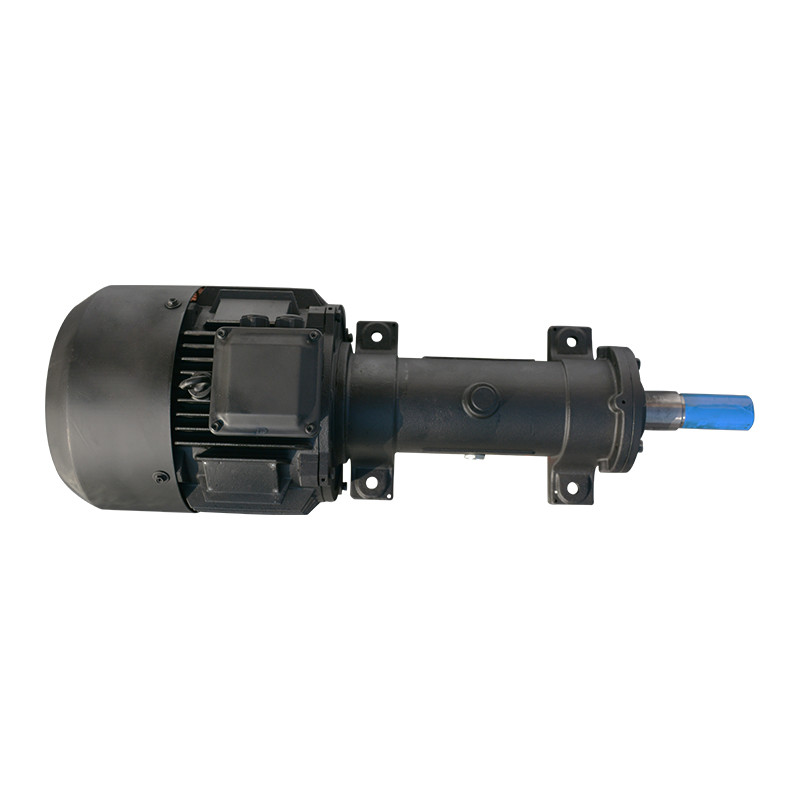

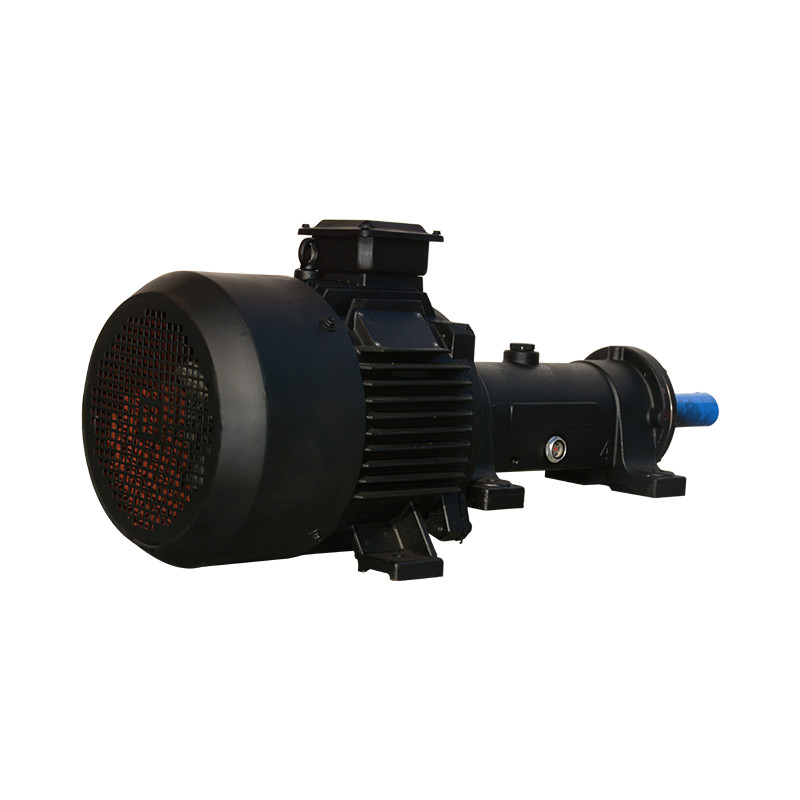

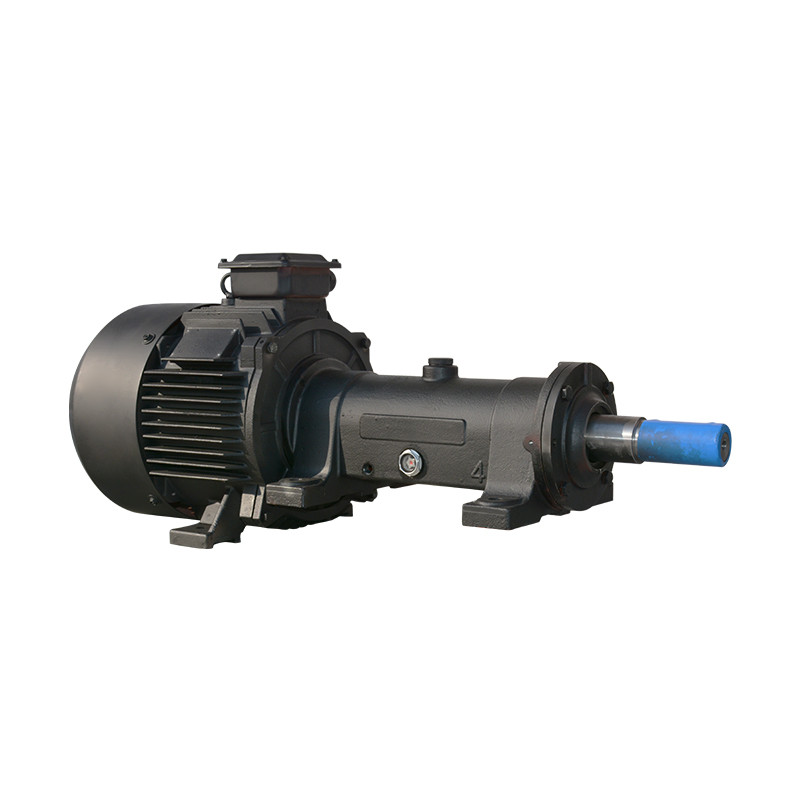

Three Phase Permanent Magnet DC Motor Magnets Synchronous IMB3
| Place of Origin | China |
|---|---|
| Brand Name | Xicheng |
| Model Number | TYB225-8-55-1500 |
| Minimum Order Quantity | 1PCS |
| Price | $490-1600/PCS |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C,T/T |
| Supply Ability | 500PCS 15-20work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Efficiency | 93.6~95.8% | Output | 11~55Kw |
|---|---|---|---|
| Installation Mode | B3 | Working System | S1 |
| Erequency | 100Hz | Voltage | 380V |
| Speed | 1500rpm | Insulation Grade | B |
| Highlight | Three Phase Permanent Magnet DC Motor,Permanent Magnet DC Motor 55Kw,dc motor magnets IMB3 |
||
You can tick the products you need and communicate with us in the message board.
| Type | TYB160-8-11-1500 | TYB160-8-15-1500 | TYB160-8-18.5-1500 | TYB200-8-22-1500 | TYB200-8-30-1500 | TYB200-8-37-1500 | TYB225-8-45-1500 | TYB225-8-55-1500 | |
|---|---|---|---|---|---|---|---|---|---|
| Voltage (V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | |
| Erequency (Hz) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| Output (Kw) | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | |
| Speed (rpm) | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | |
| Efficiency (%) | 93.6 | 94 | 94.3 | 94.7 | 95 | 95.3 | 95.6 | 95.8 | |
| Working system | S1 | S1 | S1 | S1 | S1 | S1 | S1 | S1 | |
| Insulation grade | B | B | B | B | B | B | B | B | |
| Installation mode | B3 | B3 | B3 | B3 | B3 | B3 | B3 | B3 |
Product Description
11-55KW Three-phase synchronous permanent magnet motor 380v High power high speed
Product Description:
Permanent Magnet DC Motor is a magnetically driven motor system that features a permanent magnet system. The system works under S1 working system, with B3 installation mode and voltage of 380V. It can provide a powerful output of 11~55Kw and a stable speed of 1500rpm. The product is a permanent magnet motor specially designed for fans,the efficiency index reaches the first-class standard of GB30253-2013 "Energy Efficiency Limits and Energy Efficiency Grades of Permanent Magnet Synchronous Motors",reach the international advanced level of similar products.
It is designed to provide a powerful output of 11~55Kw and a stable speed of 1500rpm. It is also designed to be highly reliable and efficient with its magnetically driven system, which provides superior magnetic energy efficiency. This makes it perfect for industrial applications that require a dependable and efficient motor system.
Features:
- Product Name: Permanent Magnet DC Motor
- Efficiency: 93.6~95.8%
- Installation Mode: B3
- Working System: S1
- Frequency: 100Hz
- Output: 11~55Kw
Technical Parameters:
| Parameter | Value |
|---|---|
| Insulation Grade | B |
| Working System | S1 |
| Frequency | 100Hz |
| Output | 11~55Kw |
| Installation Mode | B3 |
| Speed | 1500rpm |
| Efficiency | 93.6~95.8% |
| Voltage | 380V |
Applications:
Xicheng's Permanent Magnet DC Motor (TYB225-8-55-1500) is an ideal choice for various industrial applications. Its advanced insulation grade of B and working system of S1 ensures superior performance and a longer life span. Furthermore, this reliable motor is available at a competitive price of $490-1600/PCS and allows for quick delivery of 7-15 work days. Moreover, it has a voltage of 380V and a speed of 1500rpm, with a production capacity of up to 500PCS 15-20work days. Payment terms include L/C,T/T and Installation Mode B3.
Support and Services:
Permanent Magnet DC Motor Technical Support and Service
We provide technical support and service for Permanent Magnet DC Motor. Our team of experienced engineers are available to answer any questions or help troubleshoot any issues you may have. We can provide advice on installation, maintenance and repair as well as provide parts and components for replacement. We also offer comprehensive technical documentation and training programs to help you understand the design and operation of Permanent Magnet DC Motors.
If you need assistance in any way, please don’t hesitate to contact us. We are here to help you get the most out of your Permanent Magnet DC Motor.
FAQ:
Q1:What is the Brand Name of the Permanent Magnet DC Motor?
A1:The Brand Name of the Permanent Magnet DC Motor is Xicheng.
Q2:What is the Model Number of the Permanent Magnet DC Motor?
A2:The Model Number of the Permanent Magnet DC Motor is TYB225-8-55-1500.
Q3:Where is the Place of Origin of the Permanent Magnet DC Motor?
A3:The Place of Origin of the Permanent Magnet DC Motor is China.
Q4:What is the Minimum Order Quantity of the Permanent Magnet DC Motor?
A4:The Minimum Order Quantity of the Permanent Magnet DC Motor is 1PCS.
Q5:What is the Price of the Permanent Magnet DC Motor?
A5:The Price of the Permanent Magnet DC Motor is $490-1600/PCS.
