220V 380V Variable Frequency Converter Speed Control Driver 55Kw Frequency Converter

  • 220V 380V Variable Frequency Converter Speed Control Driver 55Kw Frequency Converter
  • 220V 380V Variable Frequency Converter Speed Control Driver 55Kw Frequency Converter
  • 220V 380V Variable Frequency Converter Speed Control Driver 55Kw Frequency Converter
Place of Origin China
Brand Name Xicheng
Model Number EZ680*T55GB
Minimum Order Quantity 1PCS
Price $52-1310/1PCS
Delivery Time 7-15 work days
Supply Ability 1000PCS 15-20wodk days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

220V Variable Frequency Converter

,

380V Variable Frequency Converter

,

55Kw variable frequency drive phase converter
You can tick the products you need and communicate with us in the message board.
Type EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ580*T2.2GB EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ680*T2.2GB EZ680*T3.7GB EZ680*T5.5GB EZ680*T7.5GB EZ680*T11GB EZ680*T15GB EZ680*T18.5GB EZ680*T22GB EZ680*T30GB EZ680*T37GB EZ680*T45GB EZ680*T55GB
Power（Kw) 0.4 0.7 1.5 2.2 0.5 0.7 1.5 2.2 3.7 5.5 7.5 11 15 18.5 22 30 37 45 55
Input voltage(V) AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v AC 3phase 380v
Output current(A) 1.5 2.1 3.8 5.1 2.3 4 7 5.1 9 13 17 25 32 37 45 60 75 91 112
Voltage frequency(HZ) 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Rated frequency(HZ) 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0 0.0-500.0
Weight(kg) 0.8 0.8 0.8 0.8 0.8 0.8 0.8 2 2 2 3.8 3.8 5.75 5.75 5.75 9.8 9.8 9.8 15
Size(mm) 84*140*100 84*140*100 84*140*100 84*140*100 84*140*100 84*140*100 84*140*100 125*185*160 125*185*160 125*185*160 160*247*183 160*247*183 208*304*192 208*304*192 208*304*192 225*360*224 225*360*224 225*360*224 295*520*270
Leave a Message
Type EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ580*T2.2GB EZ580*T0.4GB EZ580*T0.7GB EZ580*T1.5GB EZ680*T2.2GB EZ680*T3.7GB EZ680*T5.5GB EZ680*T7.5GB EZ680*T11GB EZ680*T15GB EZ680*T18.5GB EZ680*T22GB EZ680*T30GB EZ680*T37GB EZ680*T45GB EZ680*T55GB
Product Description

 Energy efficient variable frequency speed control driver 220V 380V 55Kw frequency converter





     EZ580 simple and economical vector inverter: It is a simple and economical version derived from the EZ680 series inverter considering the cost and economic benefits. In terms of function, some streamlining has been done on the EZ680 series, the volume and weight have been greatly reduced, the resulting adaptive power is also reduced a bit, It is a low power, low cost vector type general frequency converter.

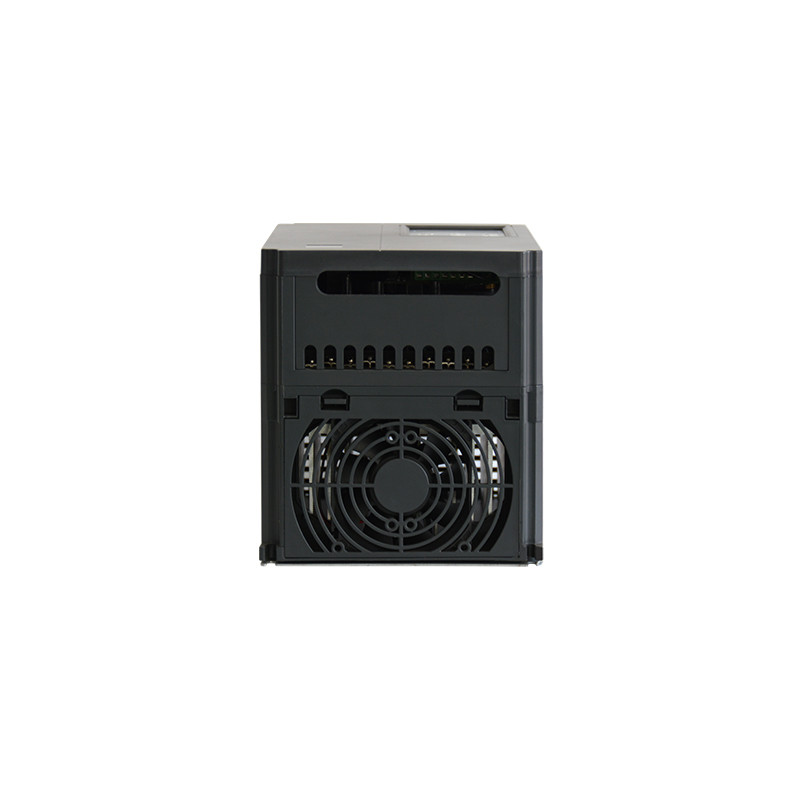

220V 380V Variable Frequency Converter Speed Control Driver 55Kw Frequency Converter 0

         EZ680 High-performance Vector inverter is a universal high-performance current vector inverter. It can realize the control of asynchronous motor and permanent magnet synchronous machine, It has a communication bus function, powerful. It can be used to drive textile, paper making, wire drawing, machine tools, packaging, food, fan, water pump and various kinds of automatic production equipment.

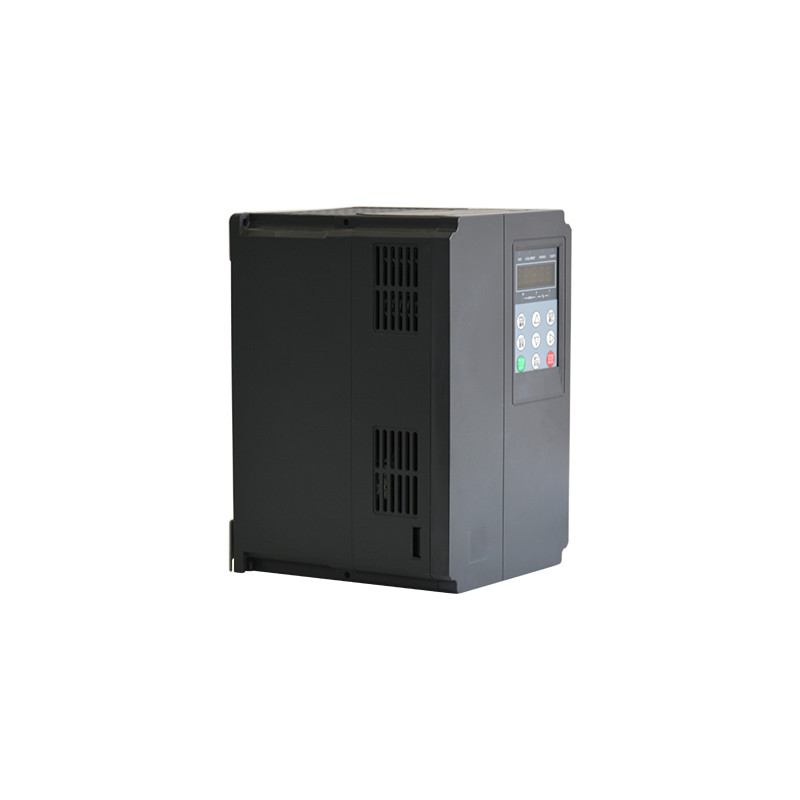

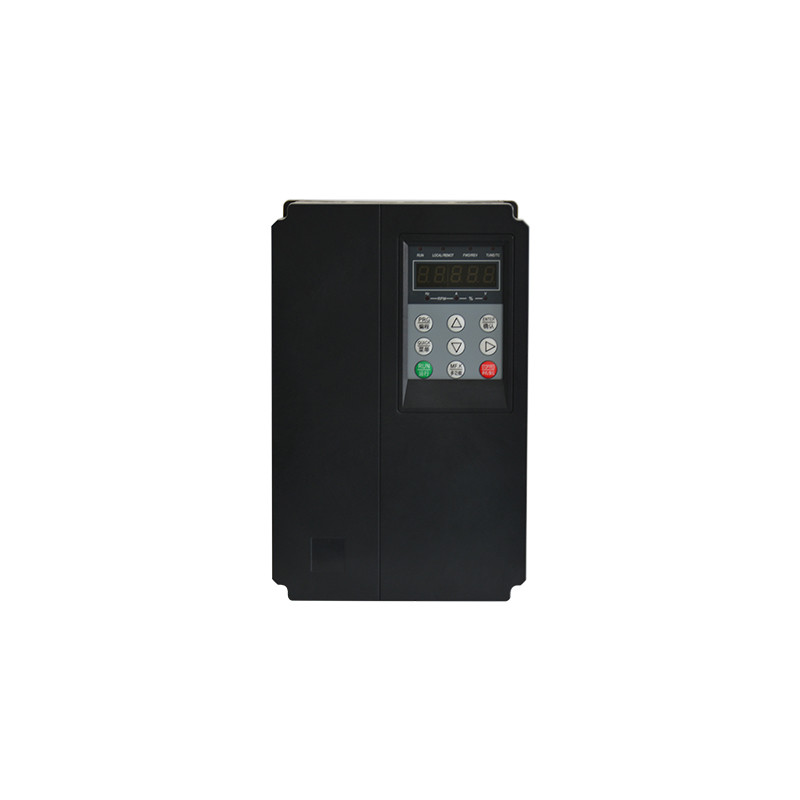

220V 380V Variable Frequency Converter Speed Control Driver 55Kw Frequency Converter 1220V 380V Variable Frequency Converter Speed Control Driver 55Kw Frequency Converter 2

Tags:

Variable Frequency Converter 1.5A

Variable Frequency Converter 112A

0.8kg Variable Frequency Converter
